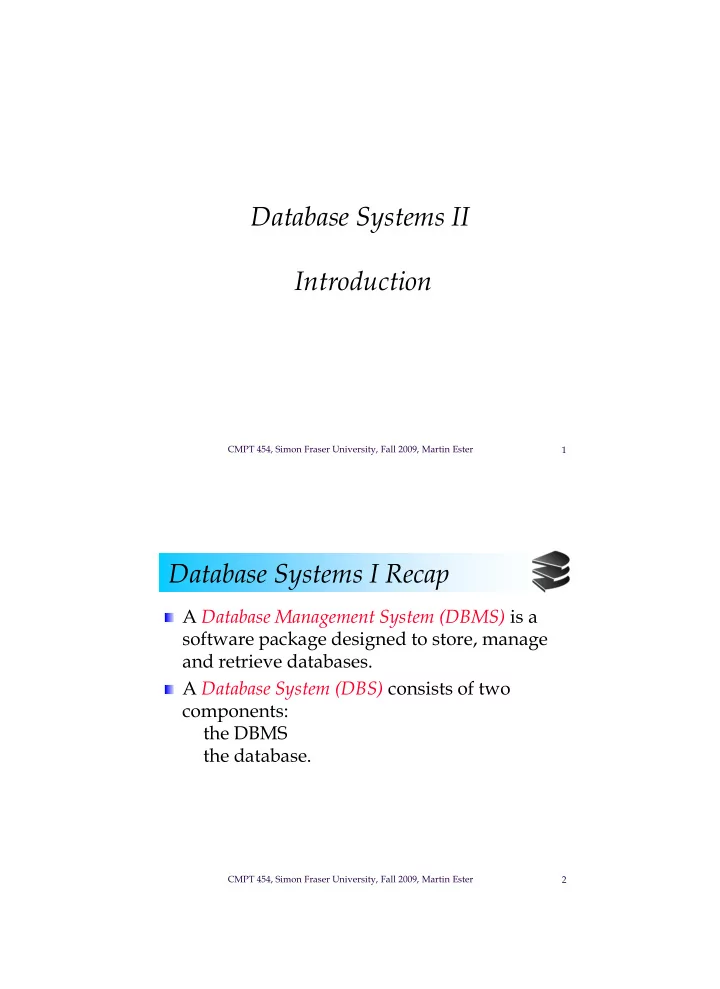

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 1

Database Systems II Introduction

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 2

Database Systems I Recap

A Database Management System (DBMS) is a software package designed to store, manage and retrieve databases. A Database System (DBS) consists of two components: the DBMS the database.

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 3

Database Systems I Recap

Why use a DBS?

• Logical data independence.
• Physical data independence.
• Efficient access.
• Reduced application development time.
• Data integrity and security.
• Concurrent access / concurrency control.
• Recovery from crashes.

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 4

Database Systems I Recap

A data model is a collection of concepts for describing data (a formal language!). A schema is a description of a particular collection

• f data (database), using the given data model.

The relational data model is the most widely used model today. Main concept: relation, basically a table with rows and columns. Every relation has a schema, which describes the columns, or fields.

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 5

Database Systems I Recap

The conceptual schema defines the logical structure

• f the whole database.

An external schema (view) describes how some user sees the data (restricted access, derived data). The physical schema describes the storage and index structures of the database.

Physical Schema Conceptual Schema View 1 View 2 View 3

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 6

Database Systems I Recap

Relational database: a set of relations Relation: made up of 2 parts: Instance : a table, with rows and columns. #Rows = cardinality, #attributes = degree / arity. Schema : specifies name of relation, plus name and type of each attribute. e.g. Students(sid: string, name: string, login: string, age: integer, gpa: real). Can think of a relation as a set of rows or tuples (i.e., all rows are distinct).

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 7

Database Systems I Recap

Relational algebra: mathematical query language which forms the basis for “real” languages (e.g. SQL), and for implementation. Five basic operations: union, set-difference, selection, projection, cartesian product. Shortcuts for common operations: join, division.

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 8

Database Systems I Recap

SQL: the standard practical query language for relational databases. Schema modifications: create, alter, delete table. Instance modifications: insert, delete, update tuples of a table. Queries to retrieve a specified set of tuples (what). Queries are descriptive, which allows the DBS to find the most efficient way how to process a query.

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 9

Database Systems I Recap

relation-list A list of relation names (possibly with a range-variable after each name). target-list A list of attributes of relations in relation-list. qualification Comparisons (“Attr op const” or “Attr1 op Attr2”, where op is one of ) combined using AND, OR and NOT.

SELECT [DISTINCT] target-list FROM

relation-list

WHERE qualification

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 10

Database Systems I Recap

Semantics of an SQL query defined in terms of the following conceptual evaluation strategy. Compute the cross-product of relation-list. Selection of the tuples satisfying qualifications. Projection onto the attributes that are in target- list. If DISTINCT is specified, eliminate duplicate rows. A query optimizer will find more efficient strategies to compute the same answers.

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 11

A Simple DBS Implementation

Relations SQL Statements Results

A B C D E A D A D

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 12

A Simple DBS Implementation

Relations stored in files (ASCII) e.g., relation R is in /usr/db/R.txt Schema file (ASCII) in /usr/db/schema.txt

Smith # 123 # CS Jones # 522 # EE . . R1 # A # INT # B # STR … R2 # C # STR # A # INT …

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 13

A Simple DBS Implementation

Sample query

& select * from R # Relation R A B C SMITH 123 CS &

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 14

A Simple DBS Implementation

Sample session Query result sent to printer

& select * from R | LPR # &

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 15

A Simple DBS Implementation

Creating a new relation T

& select * from R where R.A < 100 | T # &

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 16

A Simple DBS Implementation

Processing single table queries To process “select * from R where condition”: (1) Read dictionary to get R attributes (2) Read R file. For each line: (a) Check condition (b) If OK, display

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 17

A Simple DBS Implementation

Processing single table queries creating a new table To process “select * from R where condition | T”: (1) Process select as before (2) Write results to new file T (3) Append new line to dictionary

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 18

A Simple DBS Implementation

Processing multi-table queries To process “select A,B from R,S where condition”: (1) Read dictionary to get R,S attributes (2) Read R file, for each line: (a) Read S file, for each line: (i) Create join tuple A,B from R,S (ii) Check condition (iii) Display if OK

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 19

What’s wrong with this Implementation?

Tuple layout on disk e.g.,

• Change string from „Cat‟ to „Cats‟ and we

have to rewrite the entire file

• ASCII storage is expensive

wastes a factor of ~256/10 of space for integers

• Deletions are expensive

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 20

What’s wrong with this Implementation?

Search very expensive e.g.,

• Cannot find tuple with given key quickly
• Always have to read full relation

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 21

What’s wrong with this Implementation?

Inefficient query processing e.g., select * from R,S where R.A = S.A and S.B > 1000 Simple implementation has quadratic runtime complexity

• Do selection first?
• More efficient join?

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 22

What’s wrong with this Implementation?

No buffer manager In particular, need caching No concurrency control No concept of transactions Need to enforce ACID properties No API No interaction with other DBS

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 23

DBS Architecture

Buffer Manager Query Parser User User Transaction Transaction Manager Strategy Selector Recovery Manager Concurrency Control File Manager Log Lock Table M.M. Buffer

Statistical Data Indexes User Data System Data

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 24

Outline Database Systems II

Secondary storage management disks, records and files, . . . Index structures B-trees, hash tables, multi-dimensional indexes Query execution

• ne-pass algorithms, two-pass algorithms,

index-based algorithms Query compiler parsing and preprocessing, query

• ptimization, cost estimation

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 25

Outline Database Systems II

Crash recovery disk failures, stable storage, logging,… Concurrency Control correctness, locks, scheduling, … Transaction Processing logs, deadlocks, serializability,… Data Mining knowledge discovery in databases, association rules

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 26

Marking Scheme

Assignments 40% paper and pencil, no programming Midterm exam 15% covering all material up to and including query optimization Final exam 45% covering all the material No alternative marking scheme

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 27

Tentative Schedule

October 21

• ther instructor or class canceled

October 28 midterm exam December 2 last class December 16 final exam

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 28

References

Textbook

• Database Systems: The Complete Book, Garcia-Molina,

Ullman, and Widom, Prentice Hall, 2008: 2nd edition

• relevant sections listed in schedule on class

website, study these sections in advance! Recommended book

Database Management Systems, Ramakrishnan and Gehrke, McGraw Hill, 2003: 3rd edition

Lecture slides

• based on slides by Hector Garcia-Molina

and Martin Theobald,

• posted on the class website.
