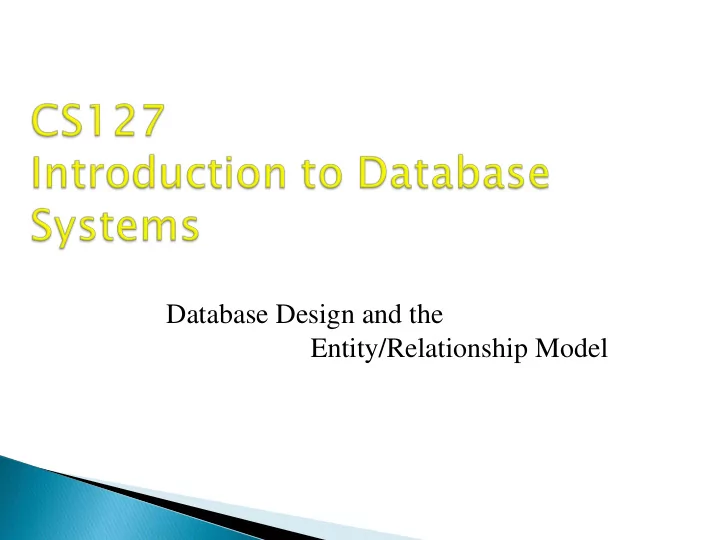

Database Design and the Entity/Relationship Model Youve just been - - PowerPoint PPT Presentation

Database Design and the Entity/Relationship Model

 You’ve just been hired by Bank of America as

their DBA for their online banking web site.

 You are asked to create a database that

monitors:

• customers
• accounts
• loans
• branches
• transactions, …

 Now what??!!!

 1.

Requirements Specification

• Determine the requirements of clients

 2. Conceptual Design

• Express client requirements in terms of some high-level

model (E/R model).

• Confirm with clients that requirements are correct.

 3. Functional Requirements

• Specify required data operations
• priorities, response times

 4. Logical Design

• Convert E/R model to relational, object-based, XML-based,…

 5. Physical Design

• Specify file organizations, build indexes

Conceptual Design

The E/R Data Model

 What is a Data Model?

 Framework for organizing and interpreting data

Example: E/R Data Model

Entity1 Entity2 Relationship Attribute1a Attribute1b Attribute2a Attribute2b Attribute2c

E/R Data Model

Basics

 Entities

 noun phrases (e.g., Bob Smith, Thayer St. Branch)  contained in entity sets (e.g. Employee, Branch)  have attributes (e.g., Employee = (essn, ename, …))

 Relationships

 verb phrases (e.g., works_at, works_for)  relate 2 (binary) or more (n-ary) entities  relationship sets characterize relationships amongst entity

sets

 e.g., (Bob Smith, Thayer St Branch) Works_At

E/R Data Model

An Example

Employee Works_At

essn

Branch

ename phone children since seniority bname bcity

Works_For

manager worker

Entity Set Relationship Set Attribute Employee Works_At

phone

Lots of notation to come. Color is irrelevant

E/R Data Model

Types of Attributes

Employee Works_At

essn

Branch

ename phone children since seniority bname bcity

Works_For

manager worker

Default

ename children seniority

Multivalued Derived

E/R Data Model

Types of relationships

Employee Works_At

essn

Branch

ename phone children since seniority bname bcity

Works_For

manager worker

Many-to-One (n:1) Many-to-Many (n:m) Works_At Works_For

E/R Data Model

Recursive relationships

Employee Works_At

essn

Branch

ename phone children since seniority bname bcity

Works_For

manager worker

Employee

manager worker

Works_For Recursive relationships: Must be declared with roles

E/R Data Model

Design Issue #1: Entity Sets vs. Attributes

Employee

phone_no phone_loc

Employee

no loc

Phone Uses

vs

(a) (b)  To resolve, determine how phones are used

 1. Can many employees share a phone?

(If yes, then (b))

 2. Can employees have multiple phones?

(if yes, then (b), or (a) with multivalued attributes)

 3. Else (a)



 An Example: How to model bank loans

E/R Data Model

Design Issue #2: Entity Sets vs. Relationship Sets

Customer

cssn cname

vs

(a)  To resolve, determine how loans are issued

 1. Can there be more than one customer per loan?

 If yes, then (a). Otherwise, loan info must be replicated for each

customer (wasteful, potential update anomalies)

 2. Is loan a noun or a verb?

 Both, but more of a noun to a bank. (hence (a) probably more

appropriate)

Borrows Loan

lno amt

Customer

cssn cname

(b) Loans Branch

bname bcity lno amt

 An Example:



E/R Data Model

Design Issue #3: Relationship Cardinalities

Customer Borrows Loan

? ?

 Variations on Borrows:

 1. Can a customer hold multiple loans?  2. Can a loan be jointly held by more than 1

customer?

E/R Data Model

Design Issue #3: Relationship Cardinalities

Customer Borrows Loan

? ?

Type Illustrated Multiple Loans? Joint Loans?

One-to-One (1:1) No No Many-to-one (n:1) No Yes One-to-many (1:n) Yes No Many-to-many (n:m) Yes Yes  Cardinalities of Borrows:



Borrows Borrows Borrows Borrows

E/R Data Model

Design Issue #3: Relationship Cardinalities (cont)

 In general...



1:1 n:1 1:n n:m

 An Example: Works_At

E/R Data Model

Design Issue #4: N-ary vs Binary Relationship Sets

Employee Works_at Branch Dept Employee

WAE

Branch Dept WA

Binary: Ternary:

WAB WAD

vs

(Joe, Thayer, Acct)  Works_At (Joe, w3)  WAE (Thayer, w3)  WAB (Acct, w3)  WAD

Choose n-ary when possible!



Key = set of attributes identifying individual entities or relationships

E/R Data Model

Keys

Employee essn

ename eaddress ephone  A. Superkey:



any attribute set that distinguishes identities



e.g., {essn}, {essn, ename, eaddress}

 B. Candidate Key:

 “minimal superkey” (can’t remove attributes and preserve “keyness”) 

e.g., {essn}, {ename, eaddress}

 C. Primary Key:



candidate key chosen as the key by a DBA



e.g., {essn} (denoted by underline)

E/R Data Model

Relationship Set Keys

Employee essn

ename ...

Works_At Branch bname

bcity

... Q: What attributes are needed to represent relationships in Works_At?

since

e1 e2 e3 b1 b2

A: {essn, bname, since}

E/R Data Model

Relationship Set Keys (cont.)

 Q: What are the candidate keys of Works_At?

e1 e2 e3 b1 b2

A: {essn}

Employee essn

ename ...

Works_At Branch bname

bcity

...

since

E/R Data Model

Relationship Set Keys (cont.)

 Q: What are the candidate keys if Works_At is...?



A: {essn, bname}

• b. n:m
• a. 1:n
• c. 1:1

A: {bname} A: {essn} or {bname}

Employee essn

ename ...

Works_At Branch bname

bcity

...

since ? ?

 General Rules for Relationship Set Keys

E/R Data Model

Relationship Set Keys (cont.)

E1 P (E1)

...

R E2 P (E2)

...

 If R is:

R 1:1 1:n n:1 n:m Candidate Keys P (E1) or P (E2) P (E2) P (E1) P (E1) P (E2)

 Idea:

• Existence of one entity depends on another

 Example: Loans and Loan Payments

E/R Data Model

Existence Dependencies and Weak Entity Sets

Loan lno

lamt

Loan_Pmt Payment pno

pdate pamt

Weak Entity Set Identifying Relationship Total Participation

E/R Data Model

Existence Dependencies and Weak Entity Sets



Weak Entity Sets



existence of payments depends upon loans



have no superkeys: different payment records (for different loans) can be identical

 instead of keys, discriminators: discriminate

between payments for given loan (e.g., pno)

Loan lno

lamt

Loan_Pmt Payment pno

pdate pamt

E/R Data Model

Existence Dependencies and Weak Entity Sets

 Identifying Relationships  We say:

 Loan is dominant in Loan_Pmt  Payment is subordinate in Loan_Pmt  Payment is existence dependent on Loan

Loan lno

lamt

Loan_Pmt Payment pno

pdate pamt

E/R Data Model

Existence Dependencies and Weak Entity Sets

 All elements of Payment appear in

Loan_Pmt

Loan lno

lamt

Payment pno

pdate pamt

Loan_Pmt

E/R Data Model

Existence Dependencies and Weak Entity Sets

E1 attam E2 attb1 attbn  Q. Is {attb1, …, attbn} a superkey of E2?

... ...

atta1

A: No

 Q. Name a candidate key of E2

A: {atta1, attb1}

R  Q. Does total participation of E2 in R E2 is

existence-dep?

A: No

E/R Data Model

Extensions to the Model: Specialization and Generalization

 An Example:

 Customers can have checking and savings accts  Checking ~ Savings (many of the same attributes)

 Old Way: Customer Has1 Savings Acct acct_no

balance interest

Has2 Checking Acct acct_no

balance

• verdraft

E/R Data Model

Extensions to the Model: Specialization and Generalization

Customer Has Account acct_no

balance

Checking Acct

• verdraft

interest

Isa

Savings Acct  An Example:

 Customers can have checking and savings accts  Checking ~ Savings (many of the same attributes)

 New Way:

superclass subclasses

E/R Data Model

Extensions to the Model: Specialization and Generalization

 Subclass Distinctions:

 1. User-Defined vs. Condition-Defined

 User: Membership in subclasses explicitly determined

(e.g., Employee, Manager < Person)

 Condition: Membership predicate associated with

subclasses - e.g: Person

Isa

Child Adult Senior age < 18 18  age age > 65

E/R Data Model

Extensions to the Model: Specialization and Generalization

 Subclass Distinctions:

 2. Overlapping vs. Disjoint

 Overlapping: Entities can belong to >1 entity set

(e.g., Adult, Senior)

 Disjoint: Entities belong to exactly 1 entity set

(e.g., Child) Person

Isa

Child Adult Senior age < 18 18  age age > 65

E/R Data Model

Extensions to the Model: Specialization and Generalization

 Subclass Distinctions:

 3. Total vs. Partial Membership

 Total: Every entity of superclass belongs to a subclass

e.g.,

 Partial: Some entities of superclass do not belong to any

subclass (e.g., Suppose Adult condition is age  21 ) Person

Isa

Child Adult Senior age < 18 age 18 age 65

E/R Data Model

Extensions to the Model: Aggregation

 E/R: No relationships between relationships

 E.g.: Associate loan officers with Borrows relationship set

Customer Loan Borrows Employee Loan_Officer

?

 Associate Loan Officer with Loan?

 What if we want a loan officer for every (customer, loan) pair?

E/R Data Model

Summary

 Entities, Relationships (sets)  Both can have attributes (simple, multivalued, derived,

composite)

 Cardinality or relationship sets (1:1, n:1, n:m)  Keys: superkeys, candidate keys, primary key

 DBA chooses primary key for entity sets  Automatically determined for relationship sets

 Weak Entity Sets, Existence Dependence, Total/Partial

Participation

 Specialization and Generalization (E/R + inheritance)

E/R Relational Schema

Entity Sets E = (a1, …, an)

E a1

an

…

E/R Relational Schema

Entity Sets E = (a1, …, an) Relationship Sets R = (a1, b1, c1, …, ck) a1: E1’s key b1: E2’s key c1, …, ck: attributes of R

E a1

an

…

E2

bm

E1 a1

an ck

R

… … …

a1

b1

c1

Not the whole story for Relationship Sets …

 What about…

E2

bm

E1 a1

an ck

R

… … …

a1 b1

c1

Rule of Thumb Fewer tables good, as long as no redundancy

• a1 is a key for R
• a1 also a key for E1 = (a1, …, an)

Could have: R = (a1, b1, c1, …, ck) but…

• Ignore R
• Add b1, c1, …, ck to E1 instead (i.e: E1 = (a1, …, an,, b1, c1, …, ck))

Instead:

Relationship Cardinality Relational Schema n:m E1 = (a1, …, an) E2 = (b1, …, bm) R = (a1, b1, c1, …, cn)

E2

bm

E1 a1

an ck

R

… … …

a1 b1

c1

? ?

R

Relationship Cardinality Relational Schema n:m E1 = (a1, …, an) E2 = (b1, …, bm) R = (a1, b1, c1, …, cn) n:1 E1 = (a1, …, an, b1, c1, …, cn) E2 = (b1, …, bm)

E2

bm

E1 a1

an ck

R

… … …

a1 b1

c1

? ?

R R

Relationship Cardinality Relational Schema n:m E1 = (a1, …, an) E2 = (b1, …, bm) R = (a1, b1, c1, …, cn) n:1 E1 = (a1, …, an, b1, c1, …, cn) E2 = (b1, …, bm) 1:n E1 = (a1, …, an) E2 = (b1, …, bm,, a1, c1, …, cn)

R R R E2

bm

E1 a1

an ck

R

… … …

a1 b1

c1

? ?

Relationship Cardinality Relational Schema n:m E1 = (a1, …, an) E2 = (b1, …, bm) R = (a1, b1, c1, …, cn) n:1 E1 = (a1, …, an, b1, c1, …, cn) E2 = (b1, …, bm) 1:n E1 = (a1, …, an) E2 = (b1, …, bm,, a1, c1, …, cn) 1:1 Treat as n:1 or 1:n

R R R R E2

bm

E1 a1

an ck

R

… … …

a1 b1

c1

? ?

Acct-Branch Account acct_no

balance

Branch bname

bcity assets

Borrower Customer cname

ccity

Loan lno

amt cstreet

Depositor Loan-Branch

• Q. How many tables does this get translated into?
• A. 6 (account, branch, customer, loan, depositor, borrower)

• Q. What are the schemas?

Acct-Branch Account acct_no

balance

Branch bname

bcity assets

Borrower Customer cname

ccity

Loan lno

amt cstreet

Depositor Loan-Branch

Account bname acct_no balance Depositor cname acct_no Customer cname cstreet ccity Branch bname bcity assets Borrower cname lno Loan bname lno amt

Account bname acct_no balance

Downtown Mianus Perry R.H. Brighton Redwood Brighton A-101 A-215 A-102 A-305 A-201 A-222 A-217 500 700 400 350 900 700 750

Depositor cname acct_no

Johnson Smith Hayes Turner Johnson Jones Lindsay A-101 A-215 A-102 A-305 A-201 A-217 A-222

Customer cname cstreet ccity

Jones Smith Hayes Curry Lindsay Turner Williams Adams Johnson Glenn Brooks Green Main North Main North Park Putnam Nassau Spring Alma Sand Hill Senator Walnut Harrison Rye Harrison Rye Pittsfield Stanford Princeton Pittsfield Palo Alto Woodside Brooklyn Stanford

Branch bname bcity assets

Downtown Redwood Perry Mianus R.H. Pownel

• N. Town

Brighton Brooklyn Palo Alto Horseneck Horseneck Horseneck Bennington Rye Brooklyn 9M 2.1M 1.7M 0.4M 8M 0.3M 3.7M 7.1M

Borrower cname lno

Jones Smith Hayes Jackson Curry Smith Williams Adams L-17 L-23 L-15 L-14 L-93 L-11 L-17 L-16

Loan bname lno amt

Downtown Redwood Perry Downtown Mianus R.H. Perry L-17 L-23 L-15 L-14 L-93 L-11 L-16 1000 2000 1500 1500 500 900 1300

E/R Relational Schema

Weak Entity Sets

E1 = (a1, …, an) E2 = (a1, b1, …, bm)

E1 a1

an

E2 b1 … bm

…

IR

E/R Relational Schema

Multivalued Attributes

Emp = (ssn, name) Emp-Depts = (ssn, dept)

Emp

ssn name dept

Emp

ssn name 001 … Smith …

Emp-Depts

ssn dept 001 001 … Acct Sales …

E/R Relational Schema

Subclasses

Method 1: E = (a1, …, an) E1 = (a1, b1, …, bm) E2 = (a1, c1, …, ck)

E a1

an

E2

c1 b1

Isa

E1

… … bm … ck

E/Rb Relational Schema

Subclasses

Method 1: E = (a1, …, an) E1 = (a1, b1, …, bm) E2 = (a1, c1, …, ck) Method 2: E1 = (a1, …, an, b1, …, bm) E2 = (a1, …, an, c1, …, ck)

E a1

an

E2

c1 b1

Isa

E1

… … bm … ck

Subclasses example:



Method 1:

Account = (acct_no, balance) SAccount = (acct_no, interest) CAccount = (acct_no, overdraft)



Method 2:

SAccount = (acct_no, balance, interest) CAccount = (acct_no, balance, overdraft)

Q: When is method 2 not possible? A: When subclassing is partial
