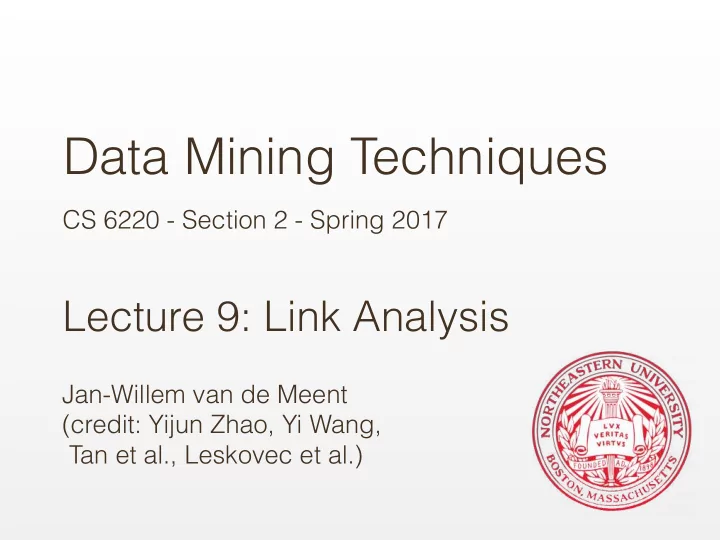

Data Mining Techniques

CS 6220 - Section 2 - Spring 2017

Lecture 9: Link Analysis

Jan-Willem van de Meent (credit: Yijun Zhao, Yi Wang,
 Tan et al., Leskovec et al.)

• Human-curated


(e.g. Yahoo, Looksmart)

• Hand-written descriptions
• Wait time for inclusion
• Text-search


(e.g. WebCrawler, Lycos)

• Prone to term-spam

Web search before PageRank

(adapted from:: Mining of Massive Datasets, http://www.mmds.org)

PageRank: Links as Votes

• Pages with more inbound links are more important
• Inbound links from important pages carry more weight

Not all pages are equally important Many inbound
 links Few/no inbound
 links Links from unimportant pages Links from important pages

(adapted from:: Mining of Massive Datasets, http://www.mmds.org)

Example: PageRank Scores

B 38.4 C 34.3 E 8.1 F 3.9 D 3.9 A 3.3 1.6 1.6 1.6 1.6 1.6

(adapted from:: Mining of Massive Datasets, http://www.mmds.org)

PageRank: Recursive Formulation

• A link’s vote is proportional to the

importance of its source page

• If page j with importance rj has n
• ut-links, each link gets rj / n votes
• Page j’s own importance is the

sum of the votes on its in-links

j

k i rj/3 rj/3 rj/3

rj = ri/3+rk/4

ri/3 rk/4

(adapted from:: Mining of Massive Datasets, http://www.mmds.org)

Equivalent Formulation: Random Surfer

• At time t a surfer is on some page i
• At time t+1 the surfer follows a


link to a new page at random

• Define rank ri as fraction of time

spent on page i

j

k i rj/3 rj/3 rj/3

rj = ri/3+rk/4

ri/3 rk/4

(adapted from:: Mining of Massive Datasets, http://www.mmds.org)

PageRank: The “Flow” Model

• 3 equations, 3 unknowns
• Impose constraint: ry + ra + rm = 1
• Solution: ry = 2/5, ra = 2/5, rm = 1/5

∑

→

=

j i i j

r r

i

d

y m a ra/2 ra/2 rm ry/2 ry/2

“Flow” equations: ry = ry /2 + ra /2 ra = ry /2 + rm rm = ra /2

(adapted from:: Mining of Massive Datasets, http://www.mmds.org)

PageRank: The “Flow” Model

∑

→

=

j i i j

r r

i

d

“Flow” equations: ry = ry /2 + ra /2 ra = ry /2 + rm rm = ra /2

r = M·r

Matrix M is stochastic (i.e. columns sum to one)

(adapted from:: Mining of Massive Datasets, http://www.mmds.org)

y m a ra/2 ra/2 rm ry/2 ry/2

PageRank: Eigenvector Problem

• PageRank: Solve for eigenvector r = M r


with eigenvalue λ = 1

• Eigenvector with λ = 1 is guaranteed


to exist since M is a stochastic matrix
 (i.e. if a = M b then Σ ai = Σ bi)

• Problem: There are billions of pages on the

• internet. How do we solve for eigenvector


with order 1010 elements?

PageRank: Power Iteration

Model for random Surfer:

• At time t = 0 pick a page at random
• At each subsequent time t follow an

• utgoing link at random

Probabilistic interpretation:

PageRank: Power Iteration

y m a a/2 y/2 a/2 m y/2

pt converges to r. Iterate until |pt - pt -1| < ε

(adapted from:: Mining of Massive Datasets, http://www.mmds.org)

Intermezzo: Markov Chains

Ergodicity Irreducibility Stationary distribution (for ergodic chains) Markov Property

• PageRank is assumes a random walk


model for individual surfers

• Equivalent assumption: flow model


in which equal fractions of surfers
 follow each link at every time

• Ergodicity: The equilibrium of the flow model

is the same as the asymptotic distribution for an individual random walk

Aside: Ergodicity

Aside: Ergodicity

• PageRank is assumes a random walk


model for individual surfers

• Equivalent assumption: flow model


in which equal fractions of surfers
 follow each link at every time

• Ergodicity: The equilibrium of the flow model

is the same as the asymptotic distribution for an individual random walk

PageRank: Problems

Dead end

• 1. Dead Ends
• Nodes with no outgoing links.
• Where do surfers go next?

(adapted from:: Mining of Massive Datasets, http://www.mmds.org)

Spider trap

• 2. Spider Traps
• Subgraph with no outgoing

links to wider graph

• Surfers are “trapped” with


no way out. Not irreducible

Power Iteration: Dead Ends

y m a a/2 y/2 a/2 y/2

Probability not conserved

(adapted from:: Mining of Massive Datasets, http://www.mmds.org)

Power Iteration: Dead Ends

y m a a/2 y/2 a/2 y/2

Fixes “probability sink” issue

(teleport at dead ends)

(adapted from:: Mining of Massive Datasets, http://www.mmds.org)

Power Iteration: Spider Traps

y m a a/2 y/2 a/2 y/2

Probability accumulates in traps (surfers get stuck)

m

(adapted from:: Mining of Massive Datasets, http://www.mmds.org)

Solution: Random Teleports

Model for teleporting random surfer:

• At time t = 0 pick a page at random
• At each subsequent time t
• With probability β follow an

• utgoing link at random
• With probability 1-β teleport


to a new initial location at random

(adapted from:: Mining of Massive Datasets, http://www.mmds.org)

rj = X

i→j

β ri di + (1 − β) 1 N

PageRank Equation [Page & Brin 1998]

Power Iteration: Teleports

y m a

(can use power iteration as normal)

(adapted from:: Mining of Massive Datasets, http://www.mmds.org)

Power Iteration: Teleports

y m a

(can use power iteration as normal)

(adapted from:: Mining of Massive Datasets, http://www.mmds.org)

Power Iteration: Teleports

y m a

(can use power iteration as normal)

(adapted from:: Mining of Massive Datasets, http://www.mmds.org)

Computing PageRank

• M is sparse - only store nonzero entries
• Space proportional roughly to number of links
• Say 10N, or 4*10*1 billion = 40GB
• Still won’t fit in memory, but will fit on disk

3 1, 5, 7 1 5 17, 64, 113, 117, 245 2 2 13, 23

source node degree destination nodes

(adapted from:: Mining of Massive Datasets, http://www.mmds.org)

Block-based Update Algorithm

• Break r new into k blocks that fit in memory
• Scan M and r old once for each block

4 0, 1, 3, 5 1 2 0, 5 2 2 3, 4

src degree destination 1 2 3 4 5 1 2 3 4 5 rnew rold

M

(adapted from:: Mining of Massive Datasets, http://www.mmds.org)

Block-Stripe Update Algorithm

4 0, 1 1 3 2 2 1

src degree destination 1 2 3 4 5 1 2 3 4 5 rnew rold

4 5 1 3 5 2 2 4 4 3 2 2 3

Break M into stripes: Each stripe contains only destination nodes in the corresponding block of r new

(adapted from:: Mining of Massive Datasets, http://www.mmds.org)

Problems: Term Spam

• How do you make your page appear to be

about movies?

• (1) Add the word movie 1,000 times to your page
• Set text color to the background color,


so only search engines would see it

• (2) Or, run the query “movie” on your


target search engine

• See what page came first in the listings
• Copy it into your page, make it “invisible”
• These and similar techniques are term spam

(adapted from:: Mining of Massive Datasets, http://www.mmds.org)

Google’s Solution to Term Spam

• Believe what people say about you, rather

than what you say about yourself

• Use words in the anchor text (words that appear

underlined to represent the link) and its surrounding text

• PageRank as a tool to measure the

“importance” of Web pages

(adapted from:: Mining of Massive Datasets, http://www.mmds.org)

Problems 2: Link Spam

• Once Google became the dominant search

engine, spammers began to work out ways to fool Google

• Spam farms were developed to concentrate

PageRank on a single page

• Link spam:
• Creating link structures that


boost PageRank of a page

(adapted from:: Mining of Massive Datasets, http://www.mmds.org)

Link Spamming

• Three kinds of web pages from a


spammer’s point of view

• Inaccessible pages
• Accessible pages
• e.g., blog comments pages


(spammer can post links to his pages)

• Owned pages
• Completely controlled by spammer
• May span multiple domain names

(adapted from:: Mining of Massive Datasets, http://www.mmds.org)

Link Farms

• Spammer’s goal:
• Maximize the PageRank of target page t
• Technique:
• Get as many links from accessible pages


as possible to target page t

• Construct “link farm” to get PageRank


multiplier effect

(adapted from:: Mining of Massive Datasets, http://www.mmds.org)

Link Farms

Inaccessible t Accessible Owned 1 2 M

One of the most common and effective


• rganizations for a link farm

Millions of
 farm pages

(adapted from:: Mining of Massive Datasets, http://www.mmds.org)

PageRank: Extensions

• Topic-specific PageRank:
• Restrict teleportation to some set S

• f pages related to a specific topic
• Set p0i = 1/|S| if i ∈ S, p0i = 0 otherwise
• Trust Propagation
• Use set S of trusted pages


as teleport set

Hidden Markov Models

Time Series with Distinct States

Can we use a Gaussian Mixture Model?

Time Series Histogram Mixture Posterior on states

Time Series Histogram Mixture Posterior on states

Can we use a Gaussian Mixture Model?

Estimate from GMM

Hidden Markov Models

Estimate from HMM

• Idea: Mixture model + Markov chain for states
• Can model correlation between subsequent states


(more likely to be in same state than different state)


Reminder: Random Surfers in PageRank

y m a a/2 y/2 a/2 m y/2

(adapted from:: Mining of Massive Datasets, http://www.mmds.org)

Reminder: Random Surfers in PageRank

y m a a/2 y/2 a/2 m y/2

(adapted from:: Mining of Massive Datasets, http://www.mmds.org)

A = M >

Hidden Markov Models

Gaussian Mixture Gaussian HMM

Review: Gaussian Mixtures

Expectation Maximization

• 1. Update cluster probabilities
• 2. Update parameters

Forward-backward Algorithm

Expectation step for HMM

z1 ∼ Discrete(π) zt+1|zt = k ∼ Discrete(Ak) xt|zt = k ∼ Normal(µk, σk)

γt,k = p(zt = k | x1:T , θ) = p(x1:t, zt)p(xt+1:T |zt) p(x1:T ) ∝ αt,kβt,k X βt,k := p(xt+1:T | zt) = X

l

βt+1,l p(xt+1|µl, σl) Akl αt,l := p(x1:t, zt) = X

k

p(xt|µl, σl)Aklαt−1,k

Parameter Updates

E-step: Posterior probabilities on Transitions M-step updates

Other Examples for HMMs

Handwritten Digits

• State 1: Sweeping arc
• State 2: Horizontal line

itten sam- hid- ained

RNA splicing

• State 1: Exon (relevant)
• State 2: Splice site
• State 3: Intron (ignored)
