CSE 115 Introduction to Computer Science I Road map Review HTTP Web API's JSON in Python Examples Python Web Server import bottle @bottle.route("/") def any_name(): response =

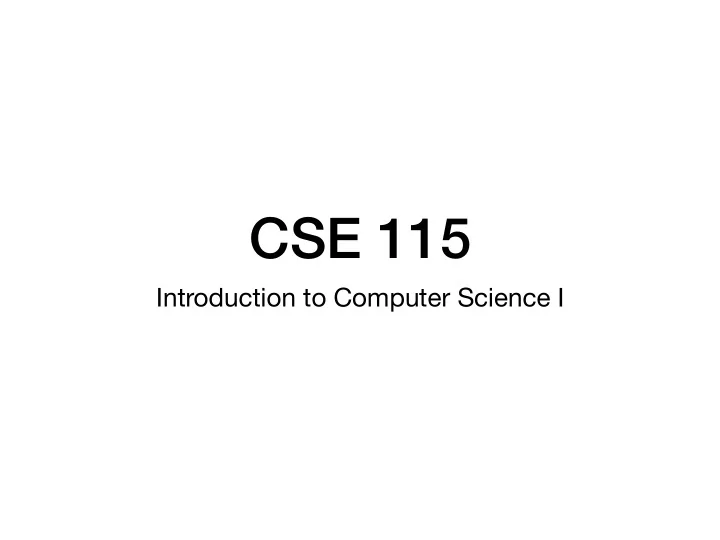

slide-1
SLIDE 1

CSE 115

Introduction to Computer Science I

slide-2
SLIDE 2

Road map

▶︎ Review ◀ HTTP Web API's JSON in Python Examples

slide-3
SLIDE 3

Python Web Server

import bottle @bottle.route("/") def any_name(): response = "<html><body><p>" response = response + "Hello from the server!" response = response + "</p></body></html>" return response bottle.run(host="0.0.0.0", port=8080, debug=True)

slide-4
SLIDE 4

Python Web Server

import bottle

Import the library We had to install it first pip install --user bottle

slide-5
SLIDE 5

Python Web Server

bottle.run(host="0.0.0.0", port=8080, debug=True)

Run the server on port 8080

slide-6
SLIDE 6

Python Web Server

@bottle.route("/") def any_name(): response = "<html><body><p>" response = response + "Hello from the server!" response = response + "</p></body></html>" return response

Host content on the root path "/"

slide-7
SLIDE 7

Web Server

Web Server

Software runs continuously and waits for requests from clients Responds to requests

Client

Sends requests to server

Client

Sends requests to server

Client

Sends requests to server

slide-8
SLIDE 8

How do clients send requests to a server?

slide-9
SLIDE 9

Road map

Review ▶︎ HTTP ◀ Web API's JSON in Python Examples

slide-10
SLIDE 10

HTTP

We communicate with web servers by making HTTP requests The server will send an HTTP response in return The request is sent to a specific url in the format <protocol>://<server>/<path>?<query_string>

  • Protocol: HTTP or HTTPS
  • Server: The domain name for the server (eg. www.buffalo.edu)
  • Path: Name for the resource being requests
  • The path corresponds to the string in the annotation in bottle
  • Query String: Provide additional info in key-value pairs
  • Unused by most sites

https://engineering.buffalo.edu/computer-science-engineering.html

slide-11
SLIDE 11

HTTP Request

import urllib.request url = "https://engineering.buffalo.edu/" url = url + "computer-science-engineering.html" response = urllib.request.urlopen(url) content = response.read().decode() print(content)

Prints the HTML for CSE@UB's homepage

slide-12
SLIDE 12

HTTP Request

import urllib.request

Import the urllib.request module Built-in to python No need to install

slide-13
SLIDE 13

HTTP Request

url = "https://engineering.buffalo.edu/" url = url + "computer-science-engineering.html" response = urllib.request.urlopen(url) content = response.read().decode() print(content)

urllib.request contains the "urlopen" function that will setup an HTTP request to a provided url and return a response object The response can be read by calling read which returns a binary string Calling decode on the binary string converts it to a string Now do anything you can do with strings. For this example we only print the response to the screen

slide-14
SLIDE 14

HTTP Request

import urllib.request url = "https://engineering.buffalo.edu/" url = url + "computer-science-engineering.html" response = urllib.request.urlopen(url) content = response.read().decode() print(content)

slide-15
SLIDE 15

Query Strings

A set of key-value pairs key and value separated by "=" key-value pairs separated by "&" https://www.youtube.com/watch?v=5jmN_tBS0t4 Query String: "v=5jmN_tBS0t4"

  • key "v" with value "5jmN_tBS0t4"

https://www.google.com/search?q=cats&as_filetype=gif&lr=lang_ja

Query String: "q=cats&as_filetype=gif&lr=lang_ja"

  • key "q" with value "cats"
  • key "as_filetype" with value "gif"
  • key "lr" with value "lang_ja"
slide-16
SLIDE 16

Query Strings

import urllib.request url = "https://www.amazon.com" url = url + "/s?keywords=pens&sort=price-desc-rank" response = urllib.request.urlopen(url) content = response.read().decode() print(content)

Sends an HTTPS request to the server "www.amazon.com" Requests the path "/s" With a query string containing 2 key key-value pairs

  • key "keywords" with value "pens"
  • key "sort" with value "price-desc-rank"

Searches for the most expensive pens on amazon

slide-17
SLIDE 17

Amazon Server Sends a Response

I'll pass

slide-18
SLIDE 18

Discussion

The Internet, as most people know it, is designed for human consumption What if we want to write software that reads data from the Internet? How do we parse through the raw HTML in Python?

slide-19
SLIDE 19

Web Scraping

A web scraper is software that reads data from HTML. Many libraries exists to make this easier. We won't explore this in CSE115, though it can be a fun area to explore on your own.

slide-20
SLIDE 20

Road map

Review HTTP ▶︎ Web API's ◀ JSON in Python Examples

slide-21
SLIDE 21

Web API

The Internet, as most people know it, is designed for human consumption What if we want to write software that reads data from the Internet? Web APIs are hosted by web servers at urls, but instead of sending HTML/CSS/JavaScript they send raw data. Designed for programmatic consumption Typically send data as JSON

slide-22
SLIDE 22

Web API

import urllib.request url = "http://api.open-notify.org/iss-now.json" response = urllib.request.urlopen(url) content = response.read().decode() print(content)

Connect to the open notify api Documentation: http://open-notify.org/Open-Notify-API/ISS-Location-Now/ Returns a JSON String

slide-23
SLIDE 23

Web API

import urllib.request url = "http://api.open-notify.org/iss-now.json" response = urllib.request.urlopen(url) content = response.read().decode() print(content)

{ "message": "success", "timestamp": 1540176365, "iss_position": { "latitude": "20.6716", "longitude": "-163.2050" } }

slide-24
SLIDE 24

Web API

{ "message": "success", "timestamp": 1540176365, "iss_position": { "latitude": "20.6716", "longitude": "-163.2050" } } We can get raw data, but what do we do with this JSON string? What is a JSON string?

slide-25
SLIDE 25

Road map

Review HTTP Web API's ▶︎ JSON in Python ◀ Examples

slide-26
SLIDE 26

JSON

JSON (JavaScript Object Notation) is a data format that can be represented as strings Send these strings to communicate across the Internet, and elsewhere All programming languages can read strings

  • Doesn't matter what language was used to write the client or server program
  • They can all "speak" JSON since its just strings

More flexible than CSV

slide-27
SLIDE 27

JSON

Only 6 different data types

  • String: Any value in "double quotes"
  • Number: Any value not in quotes "true", "false", and "null" will be interpreted

as a number. Should be formatted as an integer or floating point number

  • Boolean: Either "true" or "false" without the quotes
  • Null: The word "null" without the quotes
  • Array: A comma-separated list of values surrounded by [brackets]
  • Object: A comma-separated list of key-value pairs surrounded by {braces}

[{"title":"God Am (Live 1996)","artist":"Alice in Chains","ratings": [5,4],"youtubeID":"74P4W_okEqA"},{"title":"Fade to Black","artist":"Metallica","ratings":[5,2],"youtubeID":"WEQnzs8wl6E"}]

Closely resembles Javascript and Python syntax that we've seen, except it is a

  • string. See e.g. https://www.json.org or http://www.ecma-international.org/

publications/files/ECMA-ST/ECMA-404.pdf for more info.

slide-28
SLIDE 28

JSON in Python

import urllib.request import json url = "http://api.open-notify.org/iss-now.json" response = urllib.request.urlopen(url) content_string = response.read().decode() content = json.loads(content_string) print(content)

Use the built-in json module to handle JSON strings Call json.loads to convert a JSON string to python types

slide-29
SLIDE 29

`

import urllib.request import json url = "http://api.open-notify.org/iss-now.json" response = urllib.request.urlopen(url) content_string = response.read().decode() content = json.loads(content_string) print(content)

{ 'message': 'success', 'iss_position': { 'longitude': '-110.1453', 'latitude': '-39.6226'}, 'timestamp': 1540177620 }

slide-30
SLIDE 30

JSON in Python

import urllib.request import json url = "http://api.open-notify.org/iss-now.json" response = urllib.request.urlopen(url) content_string = response.read().decode() content = json.loads(content_string) print(content['iss_position']['longitude']) print(content['iss_position']['latitude'])

The result looks similar to the JSON string, but now it is a Python dictionary instead of a string We can use dictionary functions to process the data

slide-31
SLIDE 31

JSON in Python

import urllib.request import json url = "http://api.open-notify.org/iss-now.json" response = urllib.request.urlopen(url) content_string = response.read().decode() content = json.loads(content_string) print(content['iss_position']['longitude']) print(content['iss_position']['latitude'])

  • 70.6226
  • 51.3781

*Note: The numbers are different across slides since each time the code is executed we are getting the current location of the ISS. With web APIs we can work with live data!

slide-32
SLIDE 32

Road map

Review HTTP Web API's JSON in Python ▶︎ Examples ◀

slide-33
SLIDE 33

Want More?

Big list of APIs

  • https://github.com/toddmotto/public-apis

Hackathon next week

  • You have a lot of power at your fingertips with what we've

covered so far!

  • Build something great!
