Voronoi Diagram Based Roadmap Motion Planning CS365 Project By: Harsha Vardhan Reddy 10271 Pratap Bhanu Solanki Y9429 {gujjula, prabhanu}@ iitk.ac.in Mentor : Amitabha Mukerjee amit@ cse.iitk.ac.in Introduction Goal is to compute


slide-1
SLIDE 1

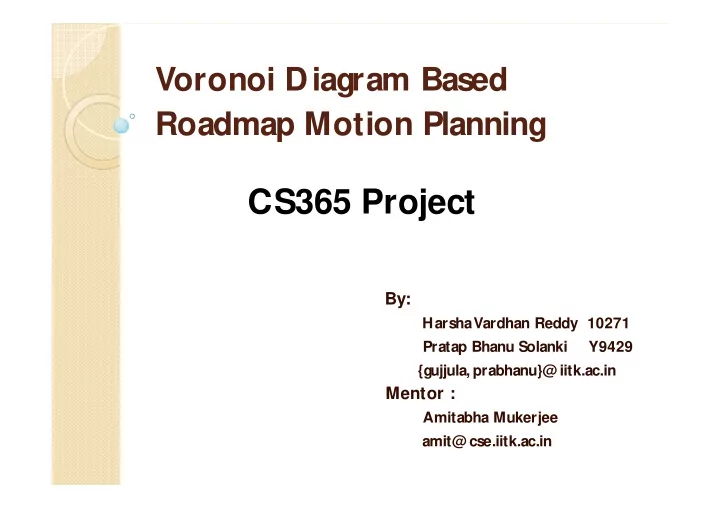

Voronoi Diagram Based Roadmap Motion Planning

By:

Harsha Vardhan Reddy 10271 Pratap Bhanu Solanki Y9429 {gujjula, prabhanu}@ iitk.ac.in

Mentor :

Amitabha Mukerjee amit@ cse.iitk.ac.in

CS365 Project

slide-2
SLIDE 2

Introduction

  • Goal is to compute shortest Collision

Free path

slide-3
SLIDE 3

Task Division

 Drawing Voronoi Diagram  Retraction Distance

slide-4
SLIDE 4

W hat is Voronoi Diagram?

 A Voronoi diagram of a set of sites in the

plane is a collection of regions that divide up the plane.

 Each region corresponds to one of the

sites.

slide-5
SLIDE 5

Drawing Voronoi Diagram:

 Point O bstacles  Line obstacle can be viewed as set of point obstacles.

slide-6
SLIDE 6

Drawing Voronoi Diagram…

 Polygonal O bstacles

  • Can be viewed as set of line obstacles
  • Each line obstacle can be viewed as set of

point obstacles separated by distance of ε

slide-7
SLIDE 7

Drawing Voronoi Diagram…

slide-8
SLIDE 8

Drawing Voronoi Diagram…

slide-9
SLIDE 9

 Consider Voronoi edges that are generated

by vertices of different obstacles.

Drawing Voronoi Diagram…

slide-10
SLIDE 10

Retraction

 Start and End are not necessary to lie on

Voronoi Diagram

 From Start to Voronoi Diagram Start’

  • Identify the cell of Start
  • Path to nearest edge – Perpendicular from

Start to the edge

 From End’ to End

  • Similar to Start

 Finding shortest path from Start’ to End’

using Graph search

slide-11
SLIDE 11

Retraction…

slide-12
SLIDE 12

Retraction…

slide-13
SLIDE 13

T H ANK YOU!

QUESTIONS ? ?

slide-14
SLIDE 14

 Line O bstacles

  • Draw voronoi diagram for point obstacles and

consider those edges

slide-15
SLIDE 15

Voronoi Edges for different configurations
