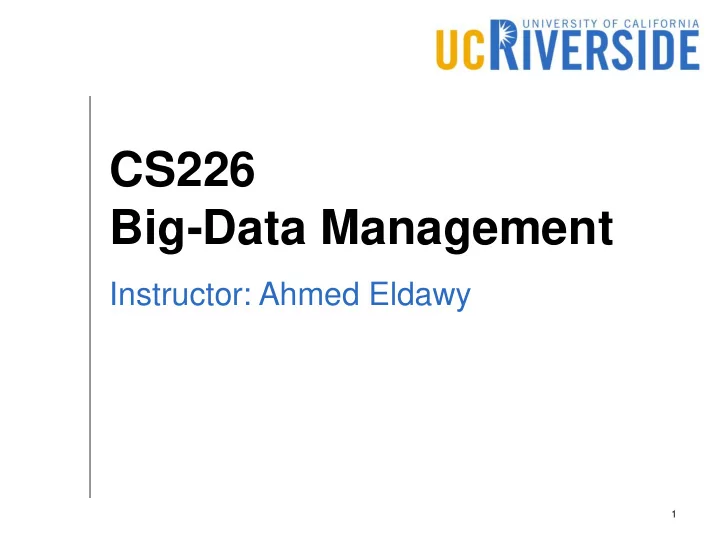

SLIDE 1
CS226 Big-Data Management
Instructor: Ahmed Eldawy
1
Welcome (back) to UCR!
2
CS226 Big-Data Management Instructor: Ahmed Eldawy 1 Welcome - - PowerPoint PPT Presentation
CS226 Big-Data Management Instructor: Ahmed Eldawy 1 Welcome - - PowerPoint PPT Presentation
CS226 Big-Data Management Instructor: Ahmed Eldawy 1 Welcome (back) to UCR! 2 Class information Classes: Monday, Wednesday, Friday 1:00 1:50 PM at Humanities and Social Sciences1501 Instructor: Ahmed Eldawy TA: Saheli Ghosh Office
SLIDE 2
SLIDE 3
Class information
Classes: Monday, Wednesday, Friday 1:00 – 1:50 PM at Humanities and Social Sciences1501 Instructor: Ahmed Eldawy TA: Saheli Ghosh Office hours: TBD Website:
http://www.cs.ucr.edu/~eldawy/19FCS226/ iLearn (Any UCRX students?)
Email: eldawy@ucr.edu
Subject: “[CS226] …”
3
SLIDE 4
Course work
Active participation in the class (5%) Reading and review tasks (10%) Assignments (20%) Mid-term (15%) Project (50%)
4
SLIDE 5
Project
Groups of 4-5 students Milestones
Group Selection Project proposal (5%) Literature survey (10%) Report outline (5%) Class presentation (5%) Final report (15%) Poster presentation (10%)
5
SLIDE 6
Course goals
What are your goals? Understand what big data means Identify the internal components of big data platforms Recognize the differences between different big data platforms Explain how a distributed query runs on big data
6
SLIDE 7
Super Hero
7
SLIDE 8
Big-data Expert
Understand how the big-data platforms really work Control those thousands of processors efficiently to carry out your task
8
SLIDE 9
Syllabus
Overview of big data Big-data storage Big-data processing Big-data indexing Big-SQL processing Programming packages
9
SLIDE 10
Introduction
10
SLIDE 11
11
SLIDE 12
12
SLIDE 13
Jan 2012: World Economic Forum Report
13
SLIDE 14
Interest in Big Data in the US
■ March 2012: Obama administration
unveils BIG DATA initiative: $200 Million in R&D investment
■ June 2013:
Washington Post is calling Obama “The Big Data President”
14
SLIDE 15
Interest in Big Data in Europe
March 2014: David Cameron and Angela Merkel talking about Big Data in a Computer Expo in Hannover, Germany
15
SLIDE 16
The Market of Big Data
16
SLIDE 17
Four Three V’s of Big Data
17
SLIDE 18
Big Data Vs Big Computation
Full scans (e.g., log processing) Range scans Point lookups Iterations Joins (self, binary, or multiway) Proximity queries Closures and graph traversals
18
SLIDE 19
Big Data Applications
Web search Marketing and advertising Data cleaning Knowledge base Information retrieval Internet of Things (IoT) Visualization Behavioral studies
19
SLIDE 20
Publicly Available Datasets
Data.gov Data.gov.uk Twitter Streaming API Yahoo! Webscope [http://webscope.sandbox.yahoo.com/] GDELT [http://www.gdeltproject.org/] Instagram API
20
SLIDE 21
Big Data Landscape 2012
http://mattturck.com/2012/06/29/a-chart-of-the-big-data-ecosystem/
21
SLIDE 22
Big Data Landscape 2014
http://mattturck.com/2014/05/11/the-state-of-big-data-in-2014-a-chart/
22
SLIDE 23
Big Data Landscape 2016
http://mattturck.com/2016/02/01/big-data-landscape/
23
SLIDE 24
Big Data Landscape 2018
24
SLIDE 25
Components
- f Big Data
25
SLIDE 26
Storage of Big Data
Data is growing faster than Moore’s Law Too much data to fit
- n a single machine
Partitioning Replication Fault-tolerance
26
SLIDE 27
Hadoop Distributed File System
(HDFS)
The most widely used distributed file system Fixed-sized partitioning 3-way replication Write-once read-many
128MB 128MB 128MB 128MB 128MB 128MB …
…
27
SLIDE 28
Indexing
Data-aware organization Global Index partitions the records into blocks Local Indexes organize the records in a partition Challenges:
Big volume HDFS limitation New programming paradigms Ad-hoc indexes
Global index Local indexes
28
SLIDE 29
Fault Tolerance
Replication Redundancy Multiple masters
29
SLIDE 30
Streaming
Sub-second latency for queries One scan over the data (Partial) preprocessing Continuous queries Eviction strategies In-memory indexes
…1000100010101011101110101010110111010111011101110100… Processing window
30
SLIDE 31
Task Execution
MapReduce
Map-Shuffle- Reduce Resiliency through materialization
Resilient Distributed Datasets (RDD)
Directed-Acyclic-Graph (DAG) In-memory processing Resiliency through lineages
Hyracks Stragglers Load balance
M1 M2 … Mm R1 R2 Rn
31
SLIDE 32
Query Optimization
Finding the most efficient query plan e.g., grouped aggregation Cost model (CPU – Disk – Network)
Agg Agg Agg Merge Merge Partition Partition Partition Agg Agg
Vs
32
SLIDE 33
Provenance
Debugging in distributed systems is painful We need to keep track of transformations on each record
33
SLIDE 34
Big Graphs
Motivated by social networks Billions of nodes and trillions of edges Tens of thousands of insertions per second Complex queries with graph traversals
34
SLIDE 35
Hadoop Ecosystem
Hadoop Distributed File System (HDFS) Yet Another Resource Negotiator (YARN) MapReduce Query Engine Administration Pig
35
SLIDE 36
Spark Ecosystem
Hadoop Distributed File System (HDFS) Yet Another Resource Negotiator (YARN) Resilient Distributed Dataset (RDD) a.k.a Spark Core Data Frames MLlib GraphX SparkR Spark Streaming Spark SQL
36
Kubernetes
SLIDE 37
Hyracks Data-parallel Platform Algebricks Algebra Layer Hadoop MapReduce Compatibility Pregelix HiveSterix AsteixDB Other compilers Hyracks jobs Pregel Jobs MapReduce Jobs PigLatin HiveQL AsterixQL
37
SLIDE 38
Impala
Hadoop Distributed File System (HDFS) Yet Another Resource Negotiator (YARN) Query Executor Query Planner Query Parser
38
SLIDE 39
SpatialHadoop
Hadoop Distributed File System (HDFS) + Spatial Indexing Yet Another Resource Negotiator (YARN) MapReduce Processing + Spatial Query Processing Spatial Visualization Pig Latin + Pigeon
39
SLIDE 40
Reading Material
“The Age of Analytics in a Data-driven World” [Executive Summary] by McKinsey & Company
40
