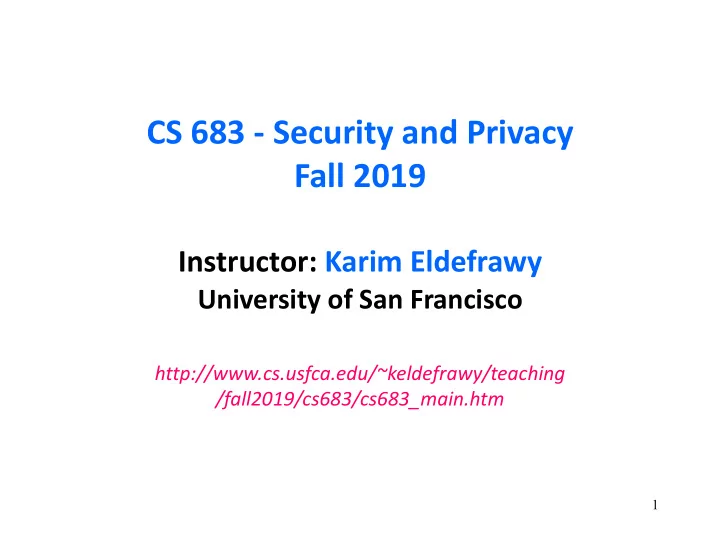

CS 683 - Security and Privacy Fall 2019 Instructor: Karim Eldefrawy - - PowerPoint PPT Presentation

CS 683 - Security and Privacy Fall 2019

Instructor: Karim Eldefrawy

University of San Francisco

http://www.cs.usfca.edu/~keldefrawy/teaching /fall2019/cs683/cs683_main.htm

1

Le Lecture 14 14

2

Access Control

Recall: Secu curity Service ces

• Confidentiality: to assure information privacy and secrecy
• Authentication: to assert who created or sent data
• Integrity: to show that data has not been altered
• Access Control: to prevent misuse of resources
• Availability: to offer access to resources, permanence, non-

erasure Examples of attacks on Availability: – Denial of Service (DoS) Attacks

• e.g., against a name server

– Malware that deletes or encrypts files

2

Acce ccess Control (AC)

• A “language” for expressing access control policies:

who can access what, how and when …

• Enforcement of access control
• Identify all resources (objects) and their granularity
• Identify all potential users (subjects)
• Specify rules for subject/object interaction
• Guard them in real time

4

Mo Mode del a and T nd Term rmino nology

• Subjects: users or processes
• Objects: resources (files, memory, printers,

routers, plotters, disks, processes, etc., etc.,...)

5

Focu cus of Acce ccess Control

• What a subject is allowed to do
• What may be done with an object

6

Acce ccess Modes

7

• “Look” at an object, e.g.:
• Read file
• Check printer queue
• Print remote screen
• Query database
• etc., etc.
• “Change” an object, e.g.:
• Write/append/erase file
• Print or fax
• Display on screen
• etc., etc.

Acce ccess Rights

execute, read, append, and write

8

Observe Alter Execute Append Read Write X X X X

UN UNIX/Linux nux/*x Ope perating ng Systems

• execute: execute (program) file, search directory
• read: read from file, list directory
• write: write (re-write or append) file, create or

rename file in directory

9

Ex Exampl ple: Windo ndows NT/2000 (NTFS)

• execute
• read
• write
• delete
• change permission
• change ownership

10

AC AC Types

Who is in charge of setting AC policy?

• Discretionary: resource owner
• Mandatory: system-wide policy

11

Acce ccess Control Struct ctures

i. Access Control Matrix ii. Capabilities

• iii. Access Control Lists

12

Acce ccess Control Matrix

13

Alice Bob

Bill.doc

{read,write} {execute} {execute} {execute,read} {execute,read,write}

Edit.exe Fun.com Subject Object

{0}

Acce ccess Control Lists 1/2

Keep access rights to an object with that object:

§

ACL for bill.doc:

§

Bob: read, write

§

ACL for edit.exe:

§

Alice: execute;

§

Bob: execute

§

ACL for fun.com:

§

Alice: execute, read;

§

Bill: execute, read, write

14

• As many ACLs as there are objects
• Each ACL either signed or stored in protected place
• Hard to manage

Acce ccess Control Lists 2/2

• Managing access rights can be difficult
• Groups can be helpful …
• Groups simplify definition of access control

policies

15

Acce ccess Control Lists

16

S1 S2 S3 O4 O3 O2 O1 G1 O5

X

Ca Capabiliti ties es 1/ 1/2

• Capabilities are associated with discretionary

access control

• Reason: difficult to get full view of who has

permission to access an object

• Very difficult to revoke a capability

(owners/objects have to keep track of all issued capabilities)

17

• As many capabilities as there are subject/object pairs
• Each capability either signed or otherwise protected
• Hard to revoke in a distributed setting

Ca Capabiliti ties es 2/ 2/2

Keep access rights with the subject:

• Alice's capabilities:
• [edit.exe:execute];
• [fun.com:execute,read]
• Bob's capabilities:
• [bill.doc:read,write]
• [edit.exe:execute]
• [fun.com:execute,read,write]

18

In In Su Summa mmary

• Centralized Systems:
• ACLs are better
• Distributed Systems:
• Capabilities are better

19

20

Example: Android Security/Permissions

Android Security Model

• Application-level permissions model
• Controls access to app components
• Controls access to system resources
• Specified by the app writers and seen by the users
• Kernel-level sandboxing and isolation
• Isolate apps from each other and the system
• Prevent bypass of application-level controls
• Relies on Linux Discretionary Access Control (DAC)
• Normally invisible to the users and app writers

21

Discretionary Access Control (DAC)

• Typical form of access control in Linux
• Access to data is entirely at the discretion of

the owner/creator of the data

• Some processes (e.g., uid 0) can override

and some objects (e.g., sockets) are unchecked

• Based on user & group identity
• Limited granularity, coarse-grained privilege

22

Android and DAC

• Restrict use of system facilities by apps
• e.g., bluetooth, network, storage access
• requires kernel modifications, “special”

group IDs

• Isolate apps from each other
• unique user and group ID per installed app
• assigned to app processes and files
• Hardcoded, scattered “policy”

23

Security Enhanced (SE)Linux : What is it?

• Mandatory Access Control (MAC) for Linux
• Defines and enforces a system-wide security policy
• Over all processes, objects, and operations
• Based on security labels
• Can confine flawed and malicious applications
• Even ones that run as “root”/uid 0
• Can prevent privilege escalation

24

How Can SELinux Help Android?

• Confine privileged daemons
• Protect them from misuse
• Limit the damage that can be done via them
• Sandbox and isolate apps
• Strongly separate apps from each other and

from the system

• Prevent privilege escalation by apps
• Provide centralized, analyzable policy

25

Security Enhanced (SE)Linux in Android

26

More details at: http://selinuxproject.org/~jmorris/lss2011_slides/caseforseandroid.pdf

27

ROLE BASED ACCESS CONTROL (RBAC)

28

RBAC Basics

• Users are associated with roles
• Roles are associated with permissions
• A user has permission only if s/he has a

role associated with that permission

29

Example: The Three Musketeers (User/Permission Association)

palace weapons uniform

Athos Porthos Aramis

30

Example: The Three Musketeers (RBAC)

Musketeer

palace weapons uniform

Athos Porthos Aramis

palace weapons uniform

Athos Porthos Aramis

31

Musketeer

palace weapons uniform

Athos Porthos Aramis

palace weapons uniform

Athos Porthos Aramis

Example: The Three Musketeers (RBAC)

32

Musketeer

palace weapons uniform

Athos Porthos Aramis

palace weapons uniform

Athos Porthos Aramis

Here RBAC doesn’t work …

Example: The Three Musketeers (RBAC)

33

Example: (D’Artagnon becomes a Musketeer)

Musketeer

palace weapons uniform

D'Artagnan

palace weapons uniform

D'Artagnan
