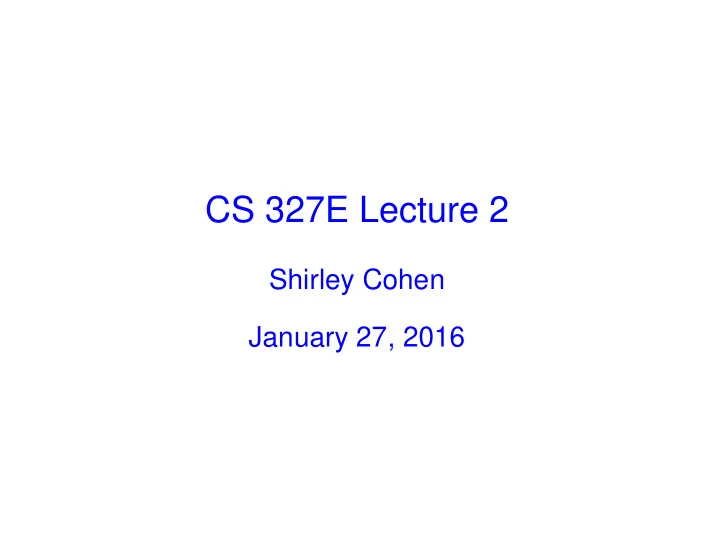

CS 327E Lecture 2

Shirley Cohen January 27, 2016

Agenda

• Announcements
• Homework for today
• Reading Quiz
• Concept Questions
• Homework for next time

Announcements

• Lecture slides and notes will be posted on the course web page after

each class

• Quiz and participation scores will be posted on Canvas after each

class

• Please use Piazza for questions and discussion topics that are of

interest to other students

• Please email or come to office hours for discussing individual

questions and concerns

• Almost everyone has successfully registered their clickers! Still

missing a clicker for 5 students though: Patrick Fierro, David Martinez, Kathleen Morgan, Wei-Da Pan and Luis Sanchez

Homework for Today

• Chapter 3 from the Learning SQL book
• Exercises at end of Chapter 3

Quiz Question 1

Which clause is mandatory in an SQL query?

• A. WHERE
• B. FROM
• C. CHOOSE
• D. SELECT

Quiz Question 2

What keyword removes duplicate entries from the result set?

• A. DEDUP
• B. ALTER
• C. UNIQUE
• D. DISTINCT

Quiz Question 3

A JOIN is a mechanism for linking two tables.

• A. True
• B. False

Quiz Question 4

Which of the following clauses removes unwanted rows from a result set?

• A. FILTER
• B. HAVING
• C. WHERE
• D. VIEW

Quiz Question 5

Is the following query syntactically correct? SELECT cust_id, fed_id, address FROM customer ORDER BY fed_id, 1;

• A. No, since 1 does not correspond

to a valid column

• B. No, since the ORDER BY syntax

requires that columns be specified in schema order

• C. Yes

mysql> describe customer; +--------------+------------------+ | Field | Type | +--------------+------------------+ | cust_id | int(10) unsigned | | fed_id | varchar(12) | | cust_type_cd | enum('I','B') | | address | varchar(30) | | city | varchar(20) | | state | varchar(20) | | postal_code | varchar(10) | +--------------+------------------+

Concept Question 1

We have a database for a retail store that keeps information about

• rders in a table called Order_Item. How can we produce a report
• f all the orders that is sorted by order number?

A. SELECT * FROM Order_Item B. SELECT OrderNumber FROM Order_Item C. SELECT * FROM Order_Item ORDER BY OrderNumber DESC D. SELECT * FROM Order_Item ORDER BY OrderNumber

• E. None of the above

Order_Item (OrderNumber, SKU, Quantity, Price, ExtendedPrice) SELECT * FROM Order_Item

Concept Question 2

We have the same Order_Item table. This time we want to generate a report that is sorted by price from highest to lowest and then by order number.

A. SELECT * FROM Order_Item ORDER BY Price DESC, OrderNumber B. SELECT * FROM Order_Item ORDER BY Price ASC, OrderNumber C. SELECT * FROM Order_Item ORDER BY Price, OrderNumber D. None of the above

• E. Not enough information

Order_Item (OrderNumber, SKU, Quantity, Price, ExtendedPrice) SELECT * FROM Order_Item

Concept Question 3

Suppose we have a product catalog database as illustrated by the diagram below. How can we retrieve the model number, speed, and hard drive capacity for all the PCs that cost less than $500?

A. SELECT model, speed, hd FROM PC WHERE price < 500 B. SELECT p.model, pc.speed, pc.hd FROM Product p, PC pc WHERE p.model = pc.model AND price < 500 C. All of the above D. None of the above E. Not enough information

Concept Question 4

How can we find the model number, speed, and hard drive capacity of all PCs that have a 12x or 24x CD drive and that cost less than $600?

A. SELECT model, speed, hd FROM PC WHERE price < 600 AND cd = '12x' OR cd = '24x‘ B. SELECT model, speed, hd FROM PC WHERE price < 600 AND cd IN ('12x', '24x') C. SELECT model, speed, hd FROM PC WHERE price < 600 AND cd BETWEEN '12x' AND '24x' D. None of the above

Concept Question 5

We are building a database that tracks projects worked on by software development teams. Each project has one or more developers and they can be a lead, senior or junior developer on the project. Based on these requirements, suggest how to add some integrity checking to the Teams table.

A. CONSTRAINT project_id_fk FOREIGN KEY project_id REFERENCES Projects(project_id) B. CONSTRAINT emp_id_fk FOREIGN KEY emp_id REFERENCES Employees(emp_id) C. CONSTRAINT role_ck CHECK(role IN (‘L’, ‘S’, ‘J’)) D. CONSTRAINT proj_emp_pk PRIMARY KEY (project_id, emp_id) E. All of the above

create table Projects ( project_id INTEGER PRIMARY KEY, start_date DATE NOT NULL, ... ) create table Employees ( emp_id INTEGER PRIMARY KEY, first_name VARCHAR(20), last_name VARCHAR(20), ... ) create table Teams ( project_id INTEGER NOT NULL, emp_id INTEGER NOT NULL, role CHAR(1), ... )

Homework for Next Time

• Chapter 4 from the Learning SQL book
