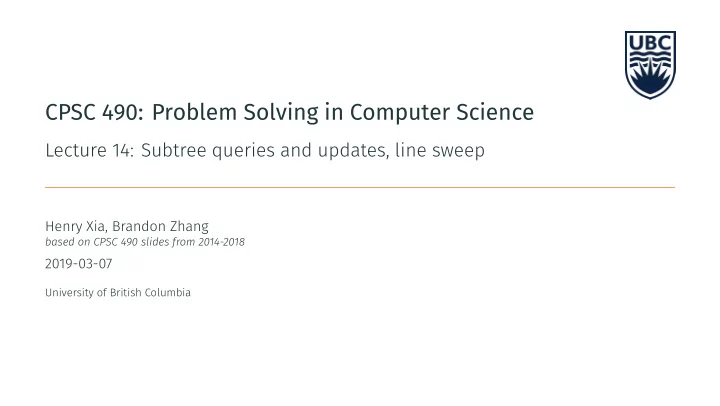

CPSC 490: Problem Solving in Computer Science

Lecture 14: Subtree queries and updates, line sweep

Henry Xia, Brandon Zhang

based on CPSC 490 slides from 2014-2018

2019-03-07

University of British Columbia

Problem 1 – Binary search?

Given an array A, answer many queries of the form “What is the smallest number in A[l..r] which is greater than or equal to x”?

1

Problem 1 – Solution

At each node, store a sorted list of the elements in that segment.

• How big are all our arrays in total?

O n n

• How to merge our children? We could just concatenate the lists and sort them, or we

can do the merge that mergesort uses.

• To handle a query:
• Consider the O

n segments that our range decomposes into. We want to find the smallest number in these segments which is x.

• This is just the minimum over each of these segments.
• In each segment, binary search to find the minimum element in the segment which is

x.

• Overall, O

2 n per query.

Takeaway: we can store O segment size information for each segment! If we use sets instead of lists, we can support point updates as well!

2

Problem 1 – Solution

At each node, store a sorted list of the elements in that segment.

• How big are all our arrays in total? O(n log n)
• How to merge our children? We could just concatenate the lists and sort them, or we

can do the merge that mergesort uses.

• To handle a query:
• Consider the O

n segments that our range decomposes into. We want to find the smallest number in these segments which is x.

• This is just the minimum over each of these segments.
• In each segment, binary search to find the minimum element in the segment which is

x.

• Overall, O

2 n per query.

Takeaway: we can store O segment size information for each segment! If we use sets instead of lists, we can support point updates as well!

2

Problem 1 – Solution

At each node, store a sorted list of the elements in that segment.

• How big are all our arrays in total? O(n log n)
• How to merge our children?

We could just concatenate the lists and sort them, or we can do the merge that mergesort uses.

• To handle a query:
• Consider the O

n segments that our range decomposes into. We want to find the smallest number in these segments which is x.

• This is just the minimum over each of these segments.
• In each segment, binary search to find the minimum element in the segment which is

x.

• Overall, O

2 n per query.

Takeaway: we can store O segment size information for each segment! If we use sets instead of lists, we can support point updates as well!

2

Problem 1 – Solution

At each node, store a sorted list of the elements in that segment.

• How big are all our arrays in total? O(n log n)
• How to merge our children? We could just concatenate the lists and sort them, or we

can do the merge that mergesort uses.

• To handle a query:
• Consider the O

n segments that our range decomposes into. We want to find the smallest number in these segments which is x.

• This is just the minimum over each of these segments.
• In each segment, binary search to find the minimum element in the segment which is

x.

• Overall, O

2 n per query.

Takeaway: we can store O segment size information for each segment! If we use sets instead of lists, we can support point updates as well!

2

Problem 1 – Solution

At each node, store a sorted list of the elements in that segment.

• How big are all our arrays in total? O(n log n)
• How to merge our children? We could just concatenate the lists and sort them, or we

can do the merge that mergesort uses.

• To handle a query:
• Consider the O(log n) segments that our range decomposes into. We want to find the

smallest number in these segments which is ≥ x.

• This is just the minimum over each of these segments.
• In each segment, binary search to find the minimum element in the segment which is ≥ x.
• Overall, O(log2 n) per query.

Takeaway: we can store O segment size information for each segment! If we use sets instead of lists, we can support point updates as well!

2

Problem 1 – Solution

At each node, store a sorted list of the elements in that segment.

• How big are all our arrays in total? O(n log n)
• How to merge our children? We could just concatenate the lists and sort them, or we

can do the merge that mergesort uses.

• To handle a query:
• Consider the O(log n) segments that our range decomposes into. We want to find the

smallest number in these segments which is ≥ x.

• This is just the minimum over each of these segments.
• In each segment, binary search to find the minimum element in the segment which is ≥ x.
• Overall, O(log2 n) per query.

Takeaway: we can store O(segment size) information for each segment! If we use sets instead of lists, we can support point updates as well!

2

Problem 2 – Tree queries

Given a tree with a value at each node, answer these queries quickly:

• 1. Set the value of every node in v’s subtree to x.
• 2. Get the sum of values in v’s subtree.

Our segment tree only works on arrays! Idea: just convert the tree into an array!

3

Problem 2 – Tree queries

Given a tree with a value at each node, answer these queries quickly:

• 1. Set the value of every node in v’s subtree to x.
• 2. Get the sum of values in v’s subtree.

Our segment tree only works on arrays! Idea: just convert the tree into an array!

3

Euler tour on a tree – subtree queries

List nodes in pre-order traversal, then subtree = subarray! first(u) = pre-order number, last(u) = pre-order number + subtree size - 1

[1, 2, 3, 4, 5, 6, 7, 8, 9, 10]

4

Problem 2 – Solution

Flatten the tree into its Euler tour.

• Set the value of each node in a subtree: range assignment to the subtree’s segment
• Get the sum: range query

5

Euler tour on a tree – LCA

List node every time you enter and exit on a “tour” then LCA is easy! All we need to do is take the minimum element from first(u) to last(v). [1, 2, 3, 3, 2, 4, 4, 2, 1, 5, 6, 7, 7, 6, 8, 8, 6, 5, 1, 9, 10, 10, 9, 1] Note the node labels need to be the preorder labels.

6

Problem 3 – Path queries

Given a tree T with edge weights, support the following queries:

• 1. Query for the distance from node x to the root.
• 2. Add weight w to an edge.

7

Problem 3 – Solution

Euler tour segment tree!

• First, fill the leaves of the segment tree with the initial distance to root (we can

compute this e.g. with DFS).

• Distance from node to root = point query on segment tree
• Edge update:
• If we add weight w to the edge (u, parent(u)), the distance to root for everything in u’s

subtree will increase by w, and everything else is unchanged.

• Perform a range update of +w to the segment representing u’s subtree.

8

Problem 4 – Path queries, harder

Given a tree T with edge weights, support the following queries:

• 1. Query for the distance between nodes u and v.
• 2. Add weight w to an edge.

9

Problem 4 – Solution

Just observe that dist(u, v) = dist(u, root) + dist(v, root) − 2 · dist(lca(u, v), root). Note that it’s hard to query for e.g. max weight on path, since we don’t have the equivalent of −.

10

Line sweeps

Merge these overlapping intervals into bigger, non-overlapping intervals!

11

1D line sweep – Solution

Imagine sweeping a vertical line from leħt to right.

12

1D line sweep – Solution

Imagine sweeping a vertical line from leħt to right.

12

1D line sweep – Solution

Imagine sweeping a vertical line from leħt to right.

12

1D line sweep – Solution

Imagine sweeping a vertical line from leħt to right.

12

1D line sweep – Solution

Add an “event” for each interval endpoint. Process each event in order of increasing x-coordinate (“sweeping” the line leħt to right). Maintain a variable n storing the number of intervals that are currently under our sweep line.

• If we reach a “close interval” event, decrement n.
• If we reach an “open interval” event, increment n.

State transitions:

• n goes from 0 to positive → start a new interval
• n goes from positive to 0 → end the current interval

Be careful when handling events at the same position!

13

Problem 5 – Intersecting rectangles

Input: N axis-aligned rectangles. Output: whether any of the rectangle boundaries intersect.

Source: North American Invitational Programming Contest 2019

14

Problem 5 – Solution

Sweep from leħt to right. Each “event” is a vertical rectangle border. Maintain a segment tree storing the number of horizontal lines on that y-coordinate.

• “Leħt boundary” event (yl, yu)
• Check if the range sum [yl, yu] is > 0—if so, intersection
• Add +1 to each of the two endpoints
• “Right boundary” event (yl, yu)
• Add −1 to each of the two endpoints
• Check if the range sum [yl, yu] is > 0—if so, intersection

15

Problem 6 – Area

Input: N axis-aligned rectangles. Output: the total area of the union of the rectangles (i.e. how much paint to cover all the rectangles).

16

Problem 6 – Solution

Imagine sweeping a line from leħt to right.

17

Problem 6 – Solution

Imagine sweeping a line from leħt to right.

17

Problem 6 – Solution

Imagine sweeping a line from leħt to right.

17

Problem 6 – Solution

Imagine sweeping a line from leħt to right.

17

Problem 6 – Solution

Imagine sweeping a line from leħt to right.

17

Problem 6 – Solution

Imagine sweeping a line from leħt to right.

17

Problem 6 – Solution

Imagine sweeping a line from leħt to right.

17

Problem 6 – Solution

Imagine sweeping a line from leħt to right.

17

Problem 6 – Solution

Imagine sweeping a line from leħt to right.

17

Problem 6 – Solution

Imagine sweeping a line from leħt to right.

17

Problem 6 – Solution

Imagine sweeping a line from leħt to right.

17

Problem 6 – Solution

Imagine sweeping a line from leħt to right.

17

Problem 6 – Solution

Imagine sweeping a line from leħt to right.

17

Problem 6 – Solution

Imagine sweeping a line from leħt to right.

17

Problem 6 – Solution

Imagine sweeping a line from leħt to right.

17

Problem 6 – Solution

Imagine sweeping a line from leħt to right.

17

Problem 6 – Solution

Imagine sweeping a line from leħt to right.

17

Problem 6 – Solution

Imagine sweeping a line from leħt to right.

17

Problem 6 – Solution

Imagine sweeping a line from leħt to right.

17

Problem 6 – Solution

Imagine sweeping a line from leħt to right.

17

Problem 6 – Solution

Maintain a segment tree storing the number of rectangles covering a position (which we can use to compute the total length covered by rectangles). Events: leħt and right boundaries of each rectangle. Actions:

• Leħt bound of rectangle → insert segment
• Right bound → remove segment
• Before events at x, add ∆x·(total covered length) to area

18

Sparse segment trees

What if the coordinates in the problem are really big (say, up to 1018)? We can’t make a segment tree of this size! Observation: O(log n) segments accessed per query/update, so most of the segments in the big segment tree are “useless”. Instead of preallocating a big array of nodes, only create nodes when we need to recurse down onto them.

19

Some things we didn’t talk about

• 2D/3D segment trees
• Persistent segment trees
• Other range-query structures (square root decomposition, binary indexed trees)
• Dynamic structures (splay tree, treap, link cut tree)
• Abuse of binary search trees

20
