Connecting Pre-silicon and Post-silicon Verification Sandip Ray and Warren A. Hunt, Jr. Department of Computer Sciences University of Texas at Austin { sandip, hunt } @cs.utexas.edu http://www.cs.utexas.edu/users/ { sandip, hunt } Ray and Hunt


slide-1
SLIDE 1

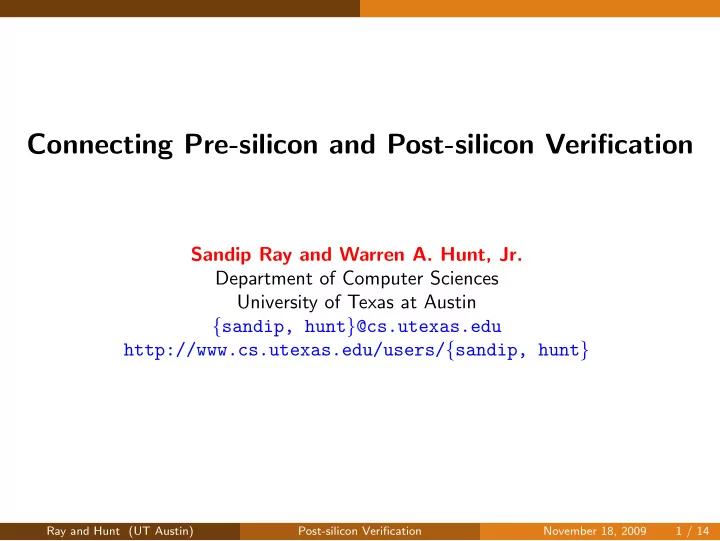

Connecting Pre-silicon and Post-silicon Verification

Sandip Ray and Warren A. Hunt, Jr. Department of Computer Sciences University of Texas at Austin {sandip, hunt}@cs.utexas.edu http://www.cs.utexas.edu/users/{sandip, hunt}

Ray and Hunt (UT Austin) Post-silicon Verification November 18, 2009 1 / 14

slide-2
SLIDE 2

Motivation

Motivation

Formal analysis has shown promise in increasing reliability of computing systems. Can catch “high quality” bugs that are difficult to hit during simulation. Has been successfully applied to some industrial design components.

  • FP execution units
  • Control logic for out-of-order pipelines

But formal analysis has primarily been restricted to pre-silicon Typical targets are RTL models and netlists. Almost no connection with post-silicon verification. How do we make use of formal analysis to facilitate post-silicon design verification?

Ray and Hunt (UT Austin) Post-silicon Verification November 18, 2009 2 / 14

slide-3
SLIDE 3

Post-Silicon Verification

Post-silicon Verification

Post-silicon verification is the use of pre-production, physical circuits to determine logical bugs. Simulation speed may be 1,000,000,000 times faster than pre-silicon. Facilitates exploration of very deep states.

Ray and Hunt (UT Austin) Post-silicon Verification November 18, 2009 3 / 14

slide-4
SLIDE 4

Post-Silicon Verification

Post-silicon Verification

Post-silicon verification is the use of pre-production, physical circuits to determine logical bugs. Simulation speed may be 1,000,000,000 times faster than pre-silicon. Facilitates exploration of very deep states. BUT Control is limited. Observability is extremely limited. Factors limiting observability:

  • Limited number of pins
  • Cost of additional DFD logic.
  • ...

Ray and Hunt (UT Austin) Post-silicon Verification November 18, 2009 3 / 14

slide-5
SLIDE 5

Post-Silicon Verification

Post-silicon Verification

Post-silicon verification is the use of pre-production, physical circuits to determine logical bugs. Simulation speed may be 1,000,000,000 times faster than pre-silicon. Facilitates exploration of very deep states. BUT Control is limited. Observability is extremely limited. Factors limiting observability:

  • Limited number of pins
  • Cost of additional DFD logic.
  • ...

Post-silicon verification is extremely expensive and tedious.

Ray and Hunt (UT Austin) Post-silicon Verification November 18, 2009 3 / 14

slide-6
SLIDE 6

Post-Silicon Verification

Post-silicon Debug Process

Start Intermediate State Observe Problem Bug!

Start in a known state Quickly get to a deep state Continue until a bug occurs

Bug is unobserved Bug may lay dormant

Finally, observe a problem It can take substantial effort to find and fix a bug.

Ray and Hunt (UT Austin) Post-silicon Verification November 18, 2009 4 / 14

slide-7
SLIDE 7

Post-Silicon Verification

Post-silicon Debug Process

Start Intermediate State Observe Problem Bug!

Start in a known state Quickly get to a deep state Continue until a bug occurs

Bug is unobserved Bug may lay dormant

Finally, observe a problem It can take substantial effort to find and fix a bug. Typical Approach: Add extra hardware “hook” to improve observability. But the hooks are added on-demand without analysis of design invariants. Once added, they are carried over from one design to next.

Ray and Hunt (UT Austin) Post-silicon Verification November 18, 2009 4 / 14

slide-8
SLIDE 8

Post-Silicon Verification

Post-silicon Debug Process

Start Intermediate State Observe Problem Bug!

Start in a known state Quickly get to a deep state Continue until a bug occurs

Bug is unobserved Bug may lay dormant

Finally, observe a problem It can take substantial effort to find and fix a bug. Typical Approach: Add extra hardware “hook” to improve observability. But the hooks are added on-demand without analysis of design invariants. Once added, they are carried over from one design to next. A more disciplined process of on-chip instrumentation is necessary.

Ray and Hunt (UT Austin) Post-silicon Verification November 18, 2009 4 / 14

slide-9
SLIDE 9

Goals

Our Goal

Facilitate post-silicon verification by pre-silicon analysis.

Ray and Hunt (UT Austin) Post-silicon Verification November 18, 2009 5 / 14

slide-10
SLIDE 10

Goals

Our Goal

Facilitate post-silicon verification by pre-silicon analysis. Pre-silicon Models

  • Allow complete visibility of internal state.
  • Can be mathematically formalized analyzed and reasoned about.

Ray and Hunt (UT Austin) Post-silicon Verification November 18, 2009 5 / 14

slide-11
SLIDE 11

Goals

Our Goal

Facilitate post-silicon verification by pre-silicon analysis. Pre-silicon Models

  • Allow complete visibility of internal state.
  • Can be mathematically formalized analyzed and reasoned about.

We use pre-silicon analysis to determine post-silicon observation points.

  • Exploit the connection between pre- and post- silicon models.
  • The number of observation points depends on the desired logical guarantee

Ray and Hunt (UT Austin) Post-silicon Verification November 18, 2009 5 / 14

slide-12
SLIDE 12

Goals

Our Goal

Facilitate post-silicon verification by pre-silicon analysis. Pre-silicon Models

  • Allow complete visibility of internal state.
  • Can be mathematically formalized analyzed and reasoned about.

We use pre-silicon analysis to determine post-silicon observation points.

  • Exploit the connection between pre- and post- silicon models.
  • The number of observation points depends on the desired logical guarantee

Eventual goal is a post-silicon verification methodology that

  • provides high correctness assurance.
  • helps comprehend post-silicon execution results.
  • provides clear trade-offs between logical guarantees and DFD support.

Ray and Hunt (UT Austin) Post-silicon Verification November 18, 2009 5 / 14

slide-13
SLIDE 13

Goals

Overall Vision

AMS RTL Microcode Formal Design/Annotation Database Guided Proof Design Representation Property/Annotation Formal Specification AIG/BDD Orchestration Proof Flow Information Simulation Symbolic

Specification

External Tools Pre−silicon Verification Post− silicon Verification Design

ACL2 Modeling and Analysis System

We envision a single, unified, formal framework for specification, evaluation, and verification of computing systems.

Ray and Hunt (UT Austin) Post-silicon Verification November 18, 2009 6 / 14

slide-14
SLIDE 14

Approach

An Approach: Partition Trace Analysis

Partition post-silicon trace analysis into two components. small on-chip integrity unit that has full observability an off-chip partial trace analyzer The off-chip component can assume that in-silicon analysis has succeeded. Formal analysis guarantees that the components together are equivalent to a monitor that has full observability. We applied the partitioning approach for post-silicon analysis of a multiprocessor memory system.

Ray and Hunt (UT Austin) Post-silicon Verification November 18, 2009 7 / 14

slide-15
SLIDE 15

Approach

A Multiprocessor Memory System

CPU(1) CPU(n) CPU(0)

.....

CPU(n−1)

Memory

Pre−silicon Execution Trace Monitor

The pre-silicon monitor checks for bounded coherence. Has full observability of all bus transactions. Obviously impractical for post-silicon.

Ray and Hunt (UT Austin) Post-silicon Verification November 18, 2009 8 / 14

slide-16
SLIDE 16

Approach

Post-silicon Analysis

A post-silicon trace is a subsequence of a pre-silicon trace with lossy compression.

CPU(1) CPU(n) CPU(0)

.....

CPU(n−1)

Memory

Partial Execution Trace

Post silicon analyzer SAT solver Lossy Compression Integrity Unit Pre−silicon Execution Trace Monitor

The integrity unit keeps track of internal bus transactions. It is sufficient to externally observe only a small number of critical events.

Ray and Hunt (UT Austin) Post-silicon Verification November 18, 2009 9 / 14

slide-17
SLIDE 17

Approach

Post-silicon Certification

  • Theorem. If the integrity unit does not interrupt, then any post-silicon

trace that passes the post-silicon analysis is a subsequence of a trace that would pass pre-silicon analysis under full observability. The theorem is proven is ACL2. Makes use of underlying protocol invariants.

Ray and Hunt (UT Austin) Post-silicon Verification November 18, 2009 10 / 14

slide-18
SLIDE 18

Approach

Post-silicon Certification

  • Theorem. If the integrity unit does not interrupt, then any post-silicon

trace that passes the post-silicon analysis is a subsequence of a trace that would pass pre-silicon analysis under full observability. The theorem is proven is ACL2. Makes use of underlying protocol invariants. Proven by exploiting a decidable subclass of the logic.

Ray and Hunt (UT Austin) Post-silicon Verification November 18, 2009 10 / 14

slide-19
SLIDE 19

Approach

Post-silicon Certification

  • Theorem. If the integrity unit does not interrupt, then any post-silicon

trace that passes the post-silicon analysis is a subsequence of a trace that would pass pre-silicon analysis under full observability. The theorem is proven is ACL2. Makes use of underlying protocol invariants. Proven by exploiting a decidable subclass of the logic. The theorem formally connects post-silicon verification with pre-silicon analysis.

Ray and Hunt (UT Austin) Post-silicon Verification November 18, 2009 10 / 14

slide-20
SLIDE 20

Results

Using the System

The system can identify subtle design errors.

Ray and Hunt (UT Austin) Post-silicon Verification November 18, 2009 11 / 14

slide-21
SLIDE 21

Results

Using the System

The system can identify subtle design errors.

Processor 0 shared grant Processor 1 exclusive request Processor 1 exclusive grant Processor 0 shared request Processor 2 exclusive request

Such errors are very difficult to exercise in simulation because of the non-determinism in the protocol.

Ray and Hunt (UT Austin) Post-silicon Verification November 18, 2009 11 / 14

slide-22
SLIDE 22

Results

Using the System

The system can identify subtle design errors.

Processor 0 shared grant Processor 1 exclusive request Processor 0 shared request

Such errors are very difficult to exercise in simulation because of the non-determinism in the protocol. The system identifies the error even under very poor observability.

Ray and Hunt (UT Austin) Post-silicon Verification November 18, 2009 12 / 14

slide-23
SLIDE 23

Related Work

Related Work

Gopalakrishnan and Chou: Limited observability checkers based on constraint solving and abstract interpretation. Aschlager and Wilkins: Model checking to generate a short trace containing an observed bug. Safarpour et al: SAT solving to automatically find and repair stuck-at faults. De Paula et al: SAT solving to develop a “backspace” from a crashed state. Our approach is to introduce some of the analysis or checking into the silicon.

Ray and Hunt (UT Austin) Post-silicon Verification November 18, 2009 13 / 14

slide-24
SLIDE 24

Conclusion

Conclusion and Future Work

To our knowledge our work is the first effort on connecting pre-silicon and post-silicon verification through formal proofs. Provides a flexible mechanism for making use of pre-silicon analysis in post-silicon verification. Makes use of existing design artifacts to facilitate post-silicon analysis.

Ray and Hunt (UT Austin) Post-silicon Verification November 18, 2009 14 / 14

slide-25
SLIDE 25

Conclusion

Conclusion and Future Work

To our knowledge our work is the first effort on connecting pre-silicon and post-silicon verification through formal proofs. Provides a flexible mechanism for making use of pre-silicon analysis in post-silicon verification. Makes use of existing design artifacts to facilitate post-silicon analysis. Of course, the results are preliminary. Future work: Exploit information flow for automatic signal winnowing. Automate partitioning, given an observability and hardware bound. Tighten connection between pre-silicon and post-silicon.

Exploit faster post-silicon simulation to facilitate pre-silicon analysis.

Ray and Hunt (UT Austin) Post-silicon Verification November 18, 2009 14 / 14
