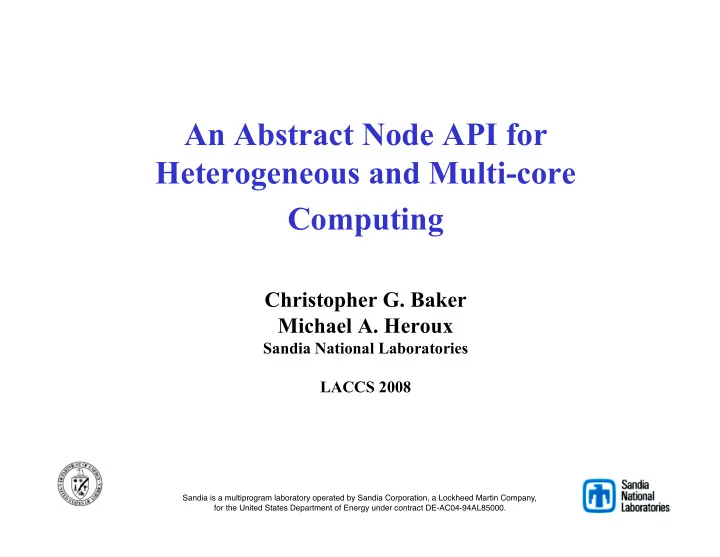

An Abstract Node API for Heterogeneous and Multi-core Computing

Christopher G. Baker Michael A. Heroux

Sandia National Laboratories LACCS 2008

Sandia is a multiprogram laboratory operated by Sandia Corporation, a Lockheed Martin Company,
 for the United States Department of Energy under contract DE-AC04-94AL85000.

slide-2
SLIDE 2

DMP vs. SMP

  • Parallel computing has targeted two dominant architectures
  • ver the past decades.
  • Highly scalable distributed systems:

 programmed as a flat network of serial nodes  employs message passing interface, typically MPI

  • Moderately scalable shared memory systems:

 programmed indirectly using, e.g., OpenMP or directly via some threading API (e.g., Pthreads)

  • The latter approach cannot be applied to systems of the

former type.

  • The former (MPI-based) approach can be used on systems
  • f the latter type.
slide-3
SLIDE 3

MPI-Only Programming Model

  • Dominant approach: a collection of nodes communicate

via message passing API such as MPI.

  • In the presence of SMP nodes, possible approaches are:

 MPI under MPI  employ hybrid MPI+threads approach  maintain the “flat” MPI-Only model

  • Flat MPI: k cores each on m nodes → O(k*m) MPI

processes

  • “SMP-aware” MPI implementations allowed flat MPI

approach to maintain dominance

 shared memory copies for local communication  single copy of application per node reduces overhead

  • Full performance benefit may not be fully realizable.
slide-4
SLIDE 4

Tramonto on Clovertown

275.9 66.9 20.6 13.0 9.4 12.7 10.3 7.7 7.6 7.5 0.0 5.0 10.0 15.0 20.0 25.0 30.0 1 2 4 6 8 # MPI Processes Time (sec)

Setup Time Solve Time

Tramonto Clovertown Results

Super-linear speedup (Setup phase) Sub-linear speedup (Solve phase)

  • Setup (The application code itself): Excellent MPI-only.
  • Solve (libraries): Much poorer. Inherent in algorithms.
slide-5
SLIDE 5

Tramonto Niagara2 Results

Tramonto Niagara2 Timings

4176.2 686.8 160.4 57.4 38.6 29.3 22.3 18.6 18.2 10.9 14.8 13.6 12.5 102.0 49.5 28.4 14.1 10.7 8.7 7.9 7.0 7.0 7.9 7.6 8.1 9.1 50 100 150 200 250 300 350 400 450 500 1 2 4 8 12 16 24 32 36 48 52 56 64 # MPI processes Time (sec)

Setup Time

Solve Time

Super-linear/linear speedup (Setup phase) Linear/sublinear speedup (Solve phase)

slide-6
SLIDE 6

Addressing These and Other Issues

  • Disappointing kernel performance is not due to poor

implementation:

 memory subsystem cannot fully exploit all cores on the node  solver algorithms may be handicapped by smaller domains

  • General consensus is that the number of cores per node

will continue to increase for a while.

 These multicore architectures look like the SMP machines of yesterday.  However, now they are ubiquitous.  Furthermore, it seems necessary to exploit them due to slowing single-core performance gains.  Solution: Apply known SMP algorithms from the past decades of research.

slide-7
SLIDE 7

Other Items On Our Wishlist

  • Support for multi-precision:

 Double-precision is not always questioned in scientific computing.  Single-prec. floating point arithmetic can be significantly faster.  Smaller word size puts less strain on taxed memory hierarchy.  Multi-precision algorithms allow combination of fast arithmetic and need for higher accuracy.

  • Support for newer architectures:

 FPGA, GPU, CBE, ???

  • Can achieve these via a general purpose programming

environment with runtime support for desired platforms.

 e.g., Sequoia, RapidMind  Too much trouble for me.  Instead, narrow scope to our libraries (i.e., those pesky solvers).

slide-8
SLIDE 8

Tpetra Abstract Interfaces

  • We propose a set of abstract interfaces for achieving these

goals in the Tpetra library of linear algebra primitives.

  • Tpetra is a templated implementation of the Petra Object

Model:

 these classes provide data services for many other packages in the Trilinos project (e.g., linear solvers, eigensolvers, non-linear solvers, preconditioners)  successor to Trilinos’s Epetra package

  • Tpetra centered around the following interfaces:
  • Comm for providing communication

between nodes

  • Map for describing layout of

distributed objects.

  • DistObject for redistributing

distributed objects

  • Linear algebra object interfaces

(Operator, Vector)

slide-9
SLIDE 9

Satisfying Our Goals: Templates

  • How do we support multiple data types?

 C++ templating of the scalar type and ordinals.  Not new, not difficult.  Compiler support is good enough now.

  • This provides generic programming capability,

independent of data types.

  • Templating implements compile time polymorphism.
  • Pro: No runtime penalty.
  • Con: Potentially large compile-time penalty.

 This is okay. Compiling is a good use of multicore! :)  Techniques exist for alleviating this for common and user data types (explicit instantiation)

slide-10
SLIDE 10

Example

Standard method prototype for apply matrix-vector multiply:

template <typename OT, typename ST> CrsMatrix::apply(const MultiVector<OT, ST> &x, MultiVector<OT, ST> &y)

Mixed precision method prototype (DP vectors, SP matrix):

template <typename OT, typename ST> CrsMatrix::apply(const MultiVector<OT,ScalarTraits<ST>::dp> &x, MultiVector<OT,ScalarTraits<ST>::dp> &y)

Exploits traits class for scalar types:

typename ScalarTraits<ST>::dp; // double precision w.r.t. ST typename ScalarTraits<ST>::hp; // half precision w.r.t. ST ST ScalarTraits<ST>::one(); // multiplicative identity

Sample usage in a mixed precision algorithm:

Tpetra::MultiVector<int, float> x, y; Tpetra::CisMatrix<int, double> A; A.apply(x, y); // SP matrix applied to DP multivector

slide-11
SLIDE 11

C++ Templates

  • Example was for float/double but works for:

 complex<float> or complex<double>

 Arbitrary precision (e.g., GMP, ARPREC)  The only requirement is a valid specialization of the traits class.

slide-12
SLIDE 12

The Rest: C++ Virtual Functions

  • How do we address our desire to support multiple

implementations for these objects?

 C++ virtual functions and inheritance.

  • This provides runtime polymorphism.
  • Use abstract base classes to encapsulate data and behavior.
  • Specific concrete implementations of these interfaces

provide adapters to target architectures.

  • We will “abstract away” communication, data allocation

/placement and computation.

slide-13
SLIDE 13

Tpetra Communication Interface

  • Teuchos::Comm is a pure virtual class:

 Has no executable code, interfaces only.  Encapsulates behavior and attributes of the parallel machine.  Defines interfaces for basic comm. services between “nodes”, e..g.:

  • collective communications
  • gather/scatter capabilities

 Allows multiple parallel machine implementations.  Generalizes Epetra_Comm.

  • Implementation details of parallel machine confined to Comm

subclasses.

  • In particular, Tpetra (and rest of Trilinos) has no dependence on any

particular API (e.g., MPI).

slide-14
SLIDE 14

Comm Methods

getRank() getSize() barrier() broadcast<Packet>(Packet *MyVals, int count, int Root) gatherAll<Packet>(Packet *MyVals, Packet *AllVals, int count) reduceAll<Packet>(ReductionOp op, int count, const Packet *local, Packet *global) scan<Packet>(ReductionOp op, int count, const Packet *send, Packet *scans)

Comm Implementations

  • SerialComm simultaneous supports of serial and parallel coding.
  • MpiComm is a thin wrapper around MPI communication routines.
  • MpiSmpComm allows use of shared-memory nodes.
slide-15
SLIDE 15

Abstract Node Class

  • Trilinos/Kokkos: Trilinos compute node package.
  • Abstraction definition in progress.

 Node currently envisioned as an abstract factory class for computational objects.

Kokkos::Node Kokkos::SerialNode Kokkos::CudaNode Kokkos::TbbNode …

Example:

Kokkos::LocalCrsMatrix<int,double> lclA; lclA = myNode.createCrsMatrix(…); lclA.submitEntries(…); // fill the matrix Kokkos::LocalMultiVector<int,double> lclX = myNode.createMV(…), lclY = myNode.createMV(…); lclA.apply(lclX,lclY); // apply the matrix operator

slide-16
SLIDE 16

Abstract Node Class (2)

  • Node handles platform-specific details, such as:

 how to allocate memory for the necessary data structures?

  • significant in the case of attached accelerators with distinct memory

space.

 How to perform the necessary computations?

  • Tpetra is responsible only for invoking global communication, via the

abstract Comm class.

  • In addition to supporting multiple architectures, Tpetra/Kokkos

becomes a test bench for research into primitives.

  • These abstractions (hopefully) provide us with flexibility to

tackle a number of platforms.

  • Cons:

 m kernels, p platforms → m*p implementations

 Heros can’t improve code they don’t have access to.

slide-17
SLIDE 17

Sample Code Comparison: MV::dot()

MPI-only:

double dot(int len, double *x, double *y) { double lcl = 0.0, gbl; for (int i=0; i<len; ++i) lcl += x[i]*y[i]; MPI_ALLREDUCE(lcl,gbl,…); return gbl; }

Tpetra/Kokkos:

template <typename ST> ST Tpetra::MultiVector<ST>::dot( Comm comm, Kokkos::LocalVector<ST> x, Kokkos::LocalVector<ST> y) { Scalar lcl, gbl; lcl = x.dot(y); reduceAll<ST>(comm,SUM,lcl,gbl); return gbl; }

  • For appropriate choices of Node and Comm, both implementations are equivalent.
  • Right hand example is limited only by the available implementations of these classes:

 can determine whether library was compiled with support for GPU, MPI, etc.  can compose different nodes for heterogeneous

slide-18
SLIDE 18

Example: MPI-Only Ax = b

App

Rank 0

App

Rank 1

App

Rank 2

App

Rank 3

Lib

Rank 0

Lib

Rank 1

Lib

Rank 2

Lib

Rank 3

Mem

Rank 0

Mem

Rank 1

Mem

Rank 2

Mem

Rank 3 All ranks store A, x, b data in locally-visible address space Library solves Ax=b using distributed memory algorithm, communicating via MPI App passes matrix and vector values to library data classes

Serial Kernel

Rank 0

Serial Kernel

Rank 1

Serial Kernel

Rank 2

Serial Kernel

Rank 3

Using: SerialNode, MpiComm

slide-19
SLIDE 19

Example: MPI+Threads Ax = b

App

Rank 0

App

Rank 1

App

Rank 2

App

Rank 3

Lib

Rank 0

Lib

Rank 1

Lib

Rank 2

Lib

Rank 3

Mem

Rank 0

Mem

Rank 1

Mem

Rank 2

Mem

Rank 3

Multicore: “PNAS” Layout

Lib

Rank 0 Thread 0 Thread 1 Thread 2 Thread 3 All ranks store A, x, b data in memory visible to rank 0 Library solves Ax=b using shared memory algorithms

  • n the node

App passes matrix and vector values to library data classes Using: SmpNode, SerialComm

slide-20
SLIDE 20

Example: Multicore + GPU Ax = b

App

Rank 0-3

App

Rank 4

Lib

Rank 0-3

Lib

Rank 4 Kokkos objects allocate data according to concrete implementation. Library solves Ax=b using appropriate kernels App passes matrix and vector values to library data classes

CPU memory GPU memory SMP kernel CUDA kernel

Using: SmpNode, CudaNode, SerialComm, CudaComm

slide-21
SLIDE 21

Conclusion

  • I wish I had some results.
  • C++ polymorphism:

 allows library user to run apps on a wide variety of platforms  allows/requires library developer to isolate implementation from interface  gives hacker/hero a hook for experimentation/salvation

  • Abstract Comm has been in use in Epetra for years; some

use of abstract interfaces to hide implementation have already seen experimental use.

  • Development of this API for Tpetra is currently in

progress; expect limited release in March ‘09, general release in Sept ‘09.
