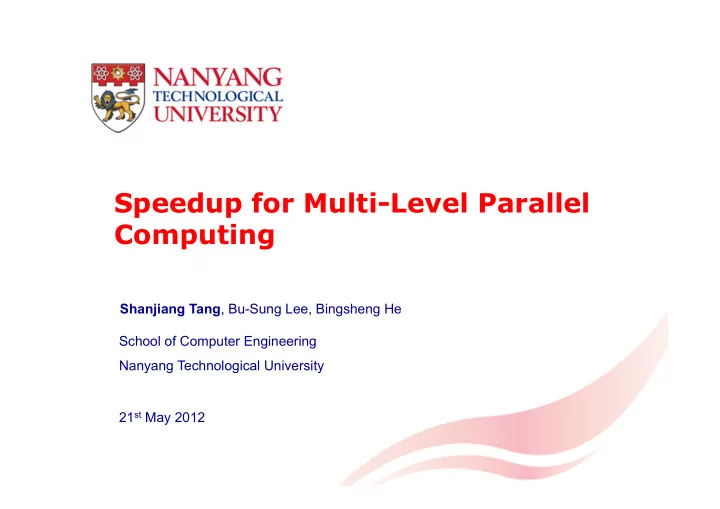

Speedup for Multi-Level Parallel Computing

School of Computer Engineering Nanyang Technological University 21st May 2012 Shanjiang Tang, Bu-Sung Lee, Bingsheng He

OutLine

• Background & Motivation
• Multi-Level Parallel Speedup
• Evaluation
• Conclusion

Multi-Level Computing Architecture and Paradigm

Multi-Level Computing Architecture and Paradigm

• MPI+OpenMP
• MPI+CUDA
• MPI+OpenMP+CUDA

…..

Multi-Level Parallel Computing Model

L

Lm L3 L2 L1

L L L L L L L L

Notes: Sequential Part Parallel Part

PE2,2 PE1,1 PE2,1 PE3,1 PE3,2 PE3,3 PE3,4 PE3,5 PE3,6 PE3,7 PE3,8

Parallel Speedup

• Definition
• Classification

Ø Absolute Speedup Ø Relative Speedup

SequentialExecutionTime Speedup ParallelExecutionTime = BestSequentialALGExecutionTime Speedup ParallelALGExecutionTime = ParallelALGSequentialExecutionTime Speedup ParallelALGExecutionTime =

Relative Speedup Model

• Fixed-size Speedup

Ø Amdahl’s Law where is parallel fraction workload of the program, is the number of processors.

• Fixed-time Speedup

Ø Gustafson’s Law

p me parallelTi Time sequential Speedup α α + − = = 1 1 p p me parallelTi Time sequential Speedup α α α α α α + − = + − + − = = 1 1 1

α

p

Motivation Example—NAS Benchmark (MPI+OpenMP)

Motivation Example—NAS Benchmark (MPI+OpenMP)

Amdahl’s Law is UNSUITABLE for Multi-Level Parallel Computing

OutLine

• Background & Motivation
• Multi-Level Parallel Speedup
• Evaluation
• Conclusion

E-Amdahl’s Law

• Awareness of Different Grained-Level Parallelism

L

Lm L3 L2 L1

L L L L L L L L

Notes : Sequential Part Parallel Part

PE2,2 PE1,1 PE2,1 PE3,1 PE3,2 PE3,3 PE3,4 PE3,5 PE3,6 PE3,7 PE3,8

⎪ ⎪ ⎪ ⎪ ⎩ ⎪ ⎪ ⎪ ⎪ ⎨ ⎧ < ≤ + + − = + − = ) 1 ( ) 1 ( ) ( ) ( ) ( 1 1 ) ( ) ( ) ( ) ( 1 1 ) ( m i i sp i p i f i f m i m p m f m f i sp

E-Amdahl’s Law

• Two-Level Parallelism Speedup Model (MPI+OpenMP)

where is the parallel fraction of coarse-grained (MPI-level) parallelism. is the parallel fraction of fine-grained (OpenMP-level) parallelism. is the number of processes spawned. is the number of threads spawned per process.

p t p t t p sp ) 1 ( 1 1 ) , , , ( β β α α β α + − + − = α β

E-Gustafson’s Law

• Awareness of Different Grained-Level Parallelism

L

Lm L3 L2 L1

L L L L L L L L

Notes : Sequential Part Parallel Part

PE2,2 PE1,1 PE2,1 PE3,1 PE3,2 PE3,3 PE3,4 PE3,5 PE3,6 PE3,7 PE3,8

⎩ ⎨ ⎧ < ≤ + + − = + − = ) 1 ( ) 1 ( ) ( ) ( ) ( 1 ) ( ) ( ) ( ) ( 1 ) ( m i i sp i p i f i f m i m p m f m f i sp

OutLine

• Background & Motivation
• Multi-Level Parallel Speedup
• Evaluation
• Conclusion

Experiment Setup

• Platform and Configuration

Ø A linux cluster consisting of eight computing nodes each with two quad-core chips Ø Configuration: One thread per CPU core

• Benchmarks

NAS Parallel Benchmark (NPB) Multi-Zone (MZ) Version: Ø BT-MZ (Unbalanced Workload Partitioning) Ø SP-MZ (balanced Workload Partitioning) Ø LU-MZ (balanced Workload Partitioning)

Performance Prediction

Prediction Result Comparison

OutLine

• Background & Motivation
• Multi-Level Parallel Speedup
• Evaluation
• Conclusion

Conclusion

• Traditional speedup models are unsuitable for multi-level parallelism

– Unable to be awareness of different granularities of parallelism for multi-level parallel computing.

• Multi-level Parallelism Model

– A guidance model for multi-level optimization. – A prediction model for multi-level parallelism.

Argument Estimation

Speedup Under E-Amdahl’s Law

Speedup Under E-Gustafson’s Law
