SLIDE 1

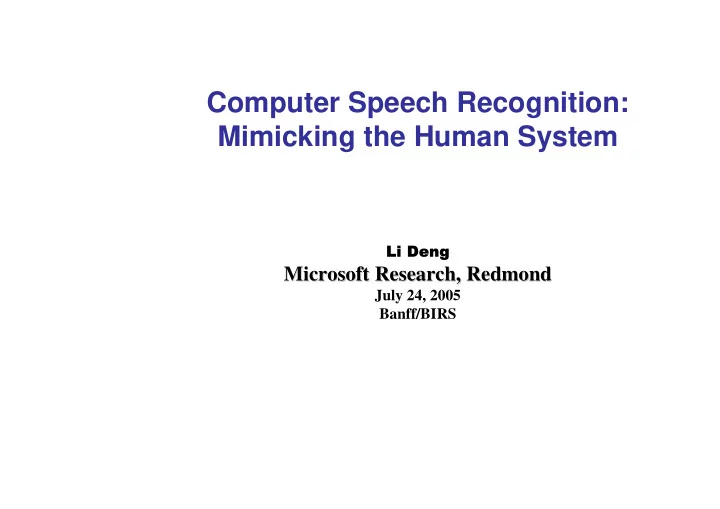

Computer Speech Recognition: Mimicking the Human System

Li Deng

Microsoft Research, Redmond Microsoft Research, Redmond

July 24, 2005 Banff/BIRS

SLIDE 2

Fundamental Equations

Enhancement (denoising):
Recognition:
Importance of speech modeling

ˆ arg max ( | ) arg max ( | ) ( )

W W

W P W x P x W P W = =

SLIDE 3

Speech Recognition--- Introduction

Converting naturally uttered speech into text and meaning
Conventional technology --- statistical modeling and

estimation (HMM)

Limitations

– noisy acoustic environments – rigid speaking style – constrained task – unrealistic demand of training data – huge model sizes, etc. – far below human speech recognition performance

Trend: Incorporate key aspects of human speech processing

mechanisms

SLIDE 4

Segment-Level Speech Dynamics

SLIDE 5

Production & Perception: Closed-Loop Chain

message

motor/articulators

Internal model

decoded message

ear/auditory reception

SPEAKER LISTENER

Speech Acoustics in closed-loop chain

SLIDE 6

Encoder: Two-Stage Production Mechanisms

message

motor/articulators

Speech Acoustics

Phonology (higher level):

Symbolic encoding of linguistic message
Discrete representation by phonological features
Loosely-coupled multiple feature tiers
Overcome beads-on-a-string phone model
Theories of distinctive features, feature geometry

& articulatory phonology

Account for partial/full sound deletion/modification

in casual speech

SPEAKER

Phonetics Phonetics (lower level): (lower level):

Convert discrete linguistic features to

Convert discrete linguistic features to continuous acoustics continuous acoustics

Mediated by motor control & articulatory

Mediated by motor control & articulatory dynamics dynamics

Mapping from articulatory variables to

Mapping from articulatory variables to VT area function to acoustics VT area function to acoustics

Account for co

Account for co-

articulation and reduction

articulation and reduction (target undershoot), etc. (target undershoot), etc.

SLIDE 7

Encoder: Phonological Modeling

message

motor/articulators

Speech Acoustics

Computational phonology:

Represent pronunciation variations as

constrained factorial Markov chain

Constraint: from articulatory phonology
Language-universal representation

SPEAKER

Labial- closure Alveolar constr. gesture-iy Nasality Aspiration Voicing LIPS: TT: TB: VEL: GLO: Alveolar closure gesture-eh Alveolar closure dental constr. Nasality Voicing

ten themes / t ε n ө i: m z /

Tongue Tip Tongue Body

High / Front Mid / Front

SLIDE 8

Encoder: Phonetic Modeling

message

motor/articulators

Speech Acoustics

SPEAKER

Computational phonetics: Computational phonetics:

Segmental factorial HMM for sequential target

Segmental factorial HMM for sequential target in articulatory or vocal tract resonance domain in articulatory or vocal tract resonance domain

Switching trajectory model for target

Switching trajectory model for target-

directed

directed articulatory dynamics articulatory dynamics

Switching nonlinear state

Switching nonlinear state-

space model for

space model for dynamics in speech acoustics dynamics in speech acoustics

Illustration:

Illustration:

SLIDE 9

Phonetic Encoder: Computation

message

motor/articulators

Speech Acoustics

SPEAKER

1

S

2

S

3

S

4

S

K

S

.......

1

t

2

t

3

t

K

t

4

t

1

z

2

z

3

z

K

z

4

z

1

2
3
K
4
1

y

2

y

3

y

K

y

4

y

1

n

2

n

3

n

K

n

4

n

1

N

2

N

3

N

K

N

4

N h

articulation targets distortion-free acoustics distorted acoustics distortion factors & feedback to articulation

SLIDE 10

SLIDE 11

Decoder I: Auditory Reception

message

motor/articulators

Internal model

decoded message

ear/auditory reception

LISTENER

Convert speech acoustic waves into

efficient & robust auditory representation

This processing is largely independent
f phonological units
Involves processing stages in cochlea

(ear), cochlear nucleus, SOC, IC,…, all the way to A1 cortex

Principal roles:

1) combat environmental acoustic distortion; 2) detect relevant speech features 3) provide temporal landmarks to aid decoding

Key properties:

1) Critical-band freq scale, logarithmic compression, 2) adapt freq selectivity, cross-channel correlation, 3) sharp response to transient sounds 4) modulation in independent frequency bands, 5) binaural noise suppression, etc.

SLIDE 12

Decoder II: Cognitive Perception

message

motor/articulators

Internal model

decoded message

ear/auditory reception

LISTENER

Cognitive process: recovery of linguistic

message

Relies on

1) “Internal” model: structural knowledge of the encoder (production system) 2) Robust auditory representation of features 3) Temporal landmarks

Child speech acquisition process is one that

gradually establishes the “internal” model

Strategy: analysis by synthesis
i.e., Probabilistic inference on (deeply)

hidden linguistic units using the internal model

No motor theory: the above strategy

requires no articulatory recovery from speech acoustics

SLIDE 13

On-line modification of speaker’s articulatory behavior

(speaking effort, rate, clarity, etc.) based on listener’s “decoding” performance (i.e. discrimination)

Especially important for conversational speech recognition and

understanding

On-line adaptation of “encoder” parameters
Novel criteria:

– maximize discrimination while minimizing articulation effort

In this closed-loop model, the “effort” quantified as “curvature”
f temporal sequence of articulatory vector zt.
No such concept of “effort” in conventional HMM systems

Speaker-Listener Interaction

SLIDE 14

xxx
xxx

Model synthesis in FT

SLIDE 15

Model synthesis in cepstra Model synthesis in cepstra

50 100 150 200 250 −1 −0.5 0.5 0.5 50 100 150 200 250 −2 −1 1 2 C1 C2

data Model

SLIDE 16

Procedure --- N-best Evaluation

ss

µ µ µ µ

feature extraction FIR triphone HMM system

test data LPCC

+

2

ss

σ σ σ σ

nonlinear mapping

table lookup Hyp 1 Hyp 2 Hyp N

N-best list (N=1000); each hypothesis has phonetic xcript & time

… … …

Gaussian Scorer

table lookup table lookup FIR FIR

nonlinear mapping nonlinear mapping

+

+

Gaussian Scorer

Gaussian

Scorer

H*= arg Max { P(H1), P(H2),…P(H1000)} … … …

s

γ γ γ γ

s

T

… … … … … … … … … … … … parameter free

(k) (k)

SLIDE 17

Results (recognition accuracy %)

(work with Dong Yu)

30 40 50 60 70 80 90 100 1 101 10001 Acc%

. . .

HMM 1001 11 N in N-best

Models

New model HMM system

72.5 72.5 72.5 75.1 Lattice Decode

SLIDE 18

Human speech production/perception viewed as synergistic

elements in a closed-looped communication chain

They function as encoding & decoding of linguistic messages,

respectively.

In human, speech “encoder” (production system) consists of

phonological (symbolic) and phonetic (numeric) levels.

Current HMM approach approximates these two levels in a

crude way:

– phone-based phonological model (“beads-on-a-string”) – multiple Gaussians as phonetic model for acoustics directly – very weak hidden structure

Summary & Conclusion

SLIDE 19

“Linguistic message recovery” (decoding) formulated as:

– auditory reception for efficient & robust speech representation & for providing temporal landmarks for phonological features – cognition perception using “encoder” knowledge or “internal model” to perform probabilistic analysis by synthesis or pattern matching

Dynamic Bayes network developed as a computational tool for

constructing encoder and decoder

Speaker-listener interaction (in addition to poor acoustic

environment) cause substantial changes of articulation behavior and acoustic patterns

Summary & Conclusion (cont’d)

SLIDE 20

Issues for discussion

Differences and similarities in processing/analysis

techniques for audio/speech and image/video processing

Integrated processing vs. modular processing
Feature extraction vs. classification
Use of semantics (class) information for feature

extraction (dim reduction, discriminative features, etc.)

Arbitrary signal vs. structured signal (e.g. face image,

human body motion, speech, music)

ˆ argmax ( | ) argmax ( | ) ( )
