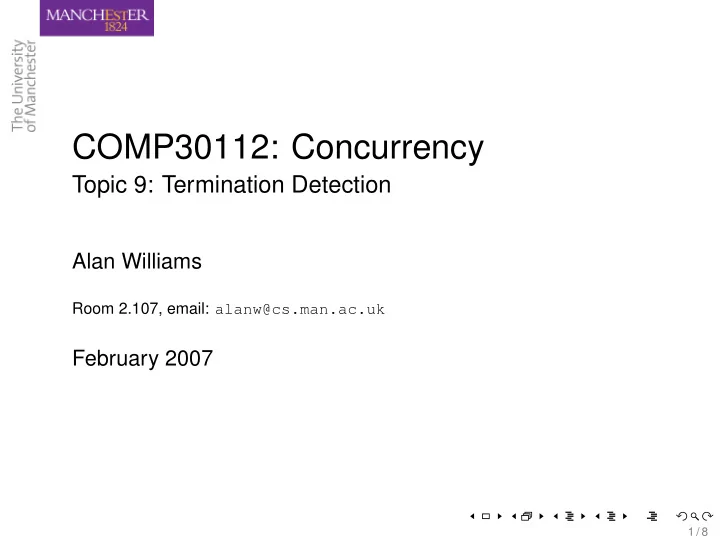

SLIDE 1
COMP30112: Concurrency
Topic 9: Termination Detection
Alan Williams
Room 2.107, email: alanw@cs.man.ac.uk
February 2007
1 / 8
The Problem
- Task requires a set of n processes to complete the job
2 / 8
