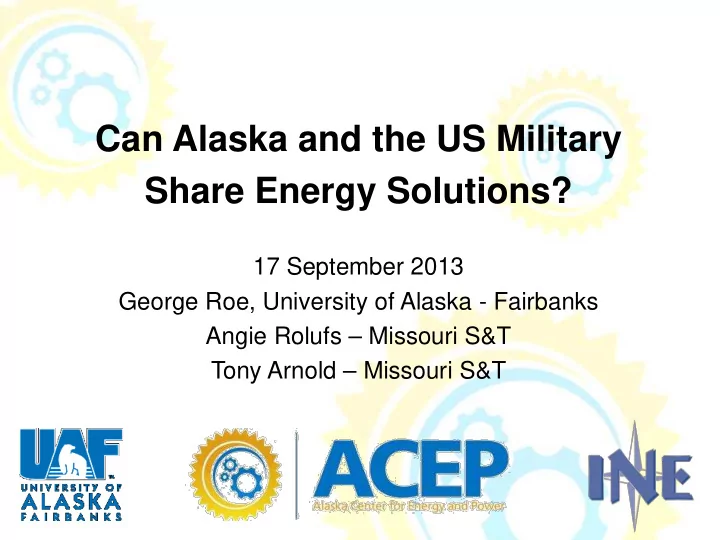

Can Alaska and the US Military Share Energy Solutions?

17 September 2013 George Roe, University of Alaska - Fairbanks Angie Rolufs – Missouri S&T Tony Arnold – Missouri S&T

►

Introductions

►

Organizational overviews

►

Energy needs

►

Collaboration opportunities

►

Collaboration – an examples

►

Next steps

Presentation Overview

http://www.uaf.edu/acep/ (907) 474 1145 Research –Move energy solutions from laboratory to market.

• Discover. Develop. Remove barriers.

Outreach – Provide stakeholders with information and independent expertise needed to make informed decisions.

• Disseminate. Advise. Connect.

Academic – Leverage UA academic resources to meet energy workforce needs of Alaska and relevant global energy markets.

• Involve. Teach. Train.

ACEP enables, evaluates and integrates energy systems in islanded micro-grids.

ACEP Roles & Goals

Introducing Missouri S&T

Angela Rolufs, Missouri S&T Anthony Arnold, Missouri S&T

Missouri S&T Energy Research

• Missouri S&T

Solar Village

– Four Solar Homes – Solar Generation – High Efficiency Homes

• Community Energy

Storage

– Microgrid Concepts

Advanced Wing Design Enhanced Flight Deck Composite Primary Structure Advanced Engines and Nacelles Innovative Systems Technologies

787 Dreamliner – a flying electrical grid

POWER ELECTRONICS (Si, SiC, GaN SEMICONDUCTOR SWITCHES CAPACITORS CIRCUITRY OTHER COMPONENTS ENERGY STORAGE BATTERIES SUPERCAPACITORS MAINTENANCE FREE CHEMISTRIES THERMAL MANAGEMENT ACTIVE VS. PASSIVE HEAT PIPES “ELECTRIC” AIR CONDITIONING

POWER GENERATION / UTILIZATION

MOTOR TYPES INDUCTION COOLING MAG BEARINGS CONTROLLERS POWER DISTRIBUTION / SYSTEM INTEGRATION VOLTAGE TYPE HIGH VOLTAGES, FREQUENCY QUALITY / STABILITY EMI SWITCHED RELUCTANCE STARTER / GENERATORS MODELING DEMONSTRATIONS ELECTRIC ACTUATION SIGNAL CONTROLS ELECTRIC PHOTONIC

More Electric Platforms

STORAGE FLYWHEELS RECOVERY

“More Electric” trend in transportation

New Capabilities in Power Management Fuel Cells Batteries Generators Flywheels High Temperature Packaging Circuit Protection Actuators

Electrical components improvement

Grid-like power systems - ubiquitous

• Power system flexibility &

utility

• Graceful, graduated

failure modes

• Reduced power extraction
• Lower wire weight
• Improved efficiency
• Greater dispatch

availability

Commercial versus military aerospace

Environment Function Integration Metrics

Missouri S&T/Fort Leonard Wood Partnerships

Angela Rolufs, Missouri S&T Anthony Arnold, Missouri S&T

Background

• Missouri S&T

– Technological Research University – 8,000 Students – Rolla, Missouri

• Fort Leonard Wood

– U.S. Army Training Installation – Basic, Chemical, Engineer, MP – Waynesville/St. Robert, Missouri

Partnering Activities

• FLW Installation Strategic Sustainability Plan

– Energy – Transportation

• Sustainable Ozarks Partnership
• S&T Solar Village Advisory Board
• Contingency Basing Integrated Technology

Evaluation Center (CBITEC)

• Environmental Security Technology

Certification Program (ESTCP)

FLW Strategic Sustainability Plan

• Goals:

– Sustainable development and redevelopment at Fort Leonard Wood – Full and effective community engagement – Modern, adaptable and high-performance training facilities, ranges, and land

• S&T Support

– Energy Forum – Transportation Initiative

Sustainable Ozarks Partnership

Regional communities, governments and

• rganizations, Fort

Leonard Wood, and state and federal enablers working together as stakeholders to make the region an ever better place to live, work and play, while enabling Fort Leonard Wood sustainability and growth.

15

Other Army/Community Sustainability Partnerships

• Fort Bragg - Sustainable Sandhills
• Fort Carson - Pikes Peak Area Council of

Governments

• Fort Hood - Heart of Texas Defense Alliance,

Cen-Tex Sustainability Partnership

• Fort Jackson - Central Midlands Council of

Governments

• Joint Base Lewis-McCord - South Sound

Military and Communities Partnership

• Fort Polk - Fort Polk Progress

Missouri S&T Solar Village

Solar Village Advisory Board

Military Engagement

Fort Leonard Wood Garrison Command U.S. Army Corps of Engineers Prime Power School, Fort Leonard Wood U.S. Army Corps of Engineers Construction Engineering Research Lab (CERL)

Technology Development Engagement

A123 Systems Milbank Manufacturing Black & Veatch Boeing Energy

Utility Engagement

Ameren City Utilities of Springfield Rolla Municipal Utilities

Policy Engagement

Missouri Energy Initiative (MEI)

Missouri S&T

• Dr. Joseph Smith,

Laufer Energy Chair and Director Energy Research and Development Center (ERDC)

• Dr. Mehdi Ferdowsi,

Associate Professor, Department of Electrical and Computer Engineering

• Dr. Mariesa Crow,

Finley Distinguished Professor of Electrical Engineering

CBITEC

• U.S. Army Corps of Engineers Construction

Engineering Research Lab (CERL)

• Contingency Basing Integrated Technology

Evaluation Center

• Forward Operating Base

– Bhuts – Energy – Waste

ESTCP – Energy & Water

• ฀

FY11, $28.8M Program

• ฀

FY12, $30M Program

– ฀ Water Conservation & Reuse Technologies – Barracks Radiant Cooling Technology – Phase Change Materials (PCM) Insulation – PCM Slurry as Heat Transfer Fluid – HVAC Constant to Variable Air Volume (VAV) Conversion – Net Zero Installation Virtual Test Bed – Kinetic Super-Resolution Long-Wave Infrared (LWIR) Thermography Diagnostic for Building Envelopes

Alaska: Pioneers in ‘island’ energy systems

• Geographic isolation of population centers and significant trans-regional

electrical intertie challenges.

• Wide-spread dependence on combustion-powered generators.
• High fuel costs establish strong incentive for operational efficiency &

leverage of renewable energy resources.

Icebreaker supported fuel delivery to Nome Erosion from fall storms - Shishmaref

►

High energy costs

►

Fragmented electric grid

►

Harsh climate

►

End of supply lines

►

Stranded resources

►

Distributed population

►

Limited road network

►

Fiscal limitations

►

Environmental impact

Alaska Realities

Energy & Energy Management

Wind Solar River / tidal hydrokinetics Wave Geothermal Waste heat utilization Synthetic fuel Biomass Ground source and seawater source heat pumps Small modular nuclear reactors Advanced energy storage Transmission and distribution Islanded electric grid integration Stranded renewable resources utilization

Microgrid Architectural Elements

Critical Loads Non-Critical Loads Housing

Energy Loads

Electric Vehicles

(Charging & Storage)

Wind Solar

Distributed Generation

On-Site Peaker CHP Installation or Regional Networked Energy Operations Center (NEOC) Distributed Generators Storage Installation Utility Grid Interface

Sub Station Transformer Vault (HTV)

Energy Demand Driving Information Utilities – Energy Providers

Purchase/Demand Response/ Stability Support Boeing Energy

ALCOM Electrical Grid

25

DoD Energy Security

• Physical Security
• Performance Monitoring and Analysis
• Micro Grid Infrastructure
• Distributed Generation
• Energy Storage
• Demand Side Management
• Micro Grid Islanding
• Fault Detection & Isolation
• Self Healing
• Cyber Security

 DoD  Communities

“Net zero” initiative synergies

AK airports?

AK Campuses?

JTF-AK / UAF action items

28

DoD – DoI MOU

29

Collaboration focus areas?

• Energy and environment practices, needs, challenges,
• etc. unique to operating in the Alaska environment, for

current and future scenarios

• Transportation fuel storage / management
• Space heating
• Electrical power – generation, storage, management
• Utility system connectivity / base islanding
• EMI & induced voltage / current
• Cyber security
• Basing – central, outpost
• Uninhabited systems & sensors

Energy Partnerships

Problem Statement:

• Infrastructure assets must be fully leveraged between State, Local and DoD

government in Alaska’s interior to ensure maximum value for taxpayers. All cost saving partnerships must be examined including potential savings to DoD if power is freely wheeled between EAFB, FWA and FGA Goal:

• The goal of the Partnerships subgroup is to identify cost saving partnership
• pportunities between state, local and DoD government in the interior of
• Alaska. Authorizations named in section 331 of the 2013 National Defense

Authorization Act should be closely examined.

• Additionally, this subgroup should provide a recommendation on how

Eielson AFB, Fort Wainwright and Fort Greely can be intertied and freely wheel power between each other by 1 Jan 14. The group should focus on tariff costs incurred from using existing intertie connections and the expense

• f purchasing power regulating devices and any other equipment required

for the uninhibited wheeling of power between bases.

31

Collaboration opportunities?

• Fuel cells – spent deicing fluid / coolant processing
• Seasonal thermal energy storage
• UAV / UUV energy system
• Unattended sensor energy source
• Stranded renewable energy resource access
• Hydrogen generation / storage
• Diesel-off enablement
• Waste heat recovery
• Cold weather electric vehicle energy
• Transportable waste-to-energy
• Standardized small scale renewable energy packages
• Biomass
• Rooftop HVAC system energy efficiency
• Community energy collaboration initiatives
• Coal design collaboration
• Renewables integration

32

Addressing issues to improve penetration

• f wind-diesel systems through

improvements in control, energy storage, low-load diesel, high penetration wind

High contribution renewables

Organization & Region Collaboration Demonstrations Policies Scaling …
