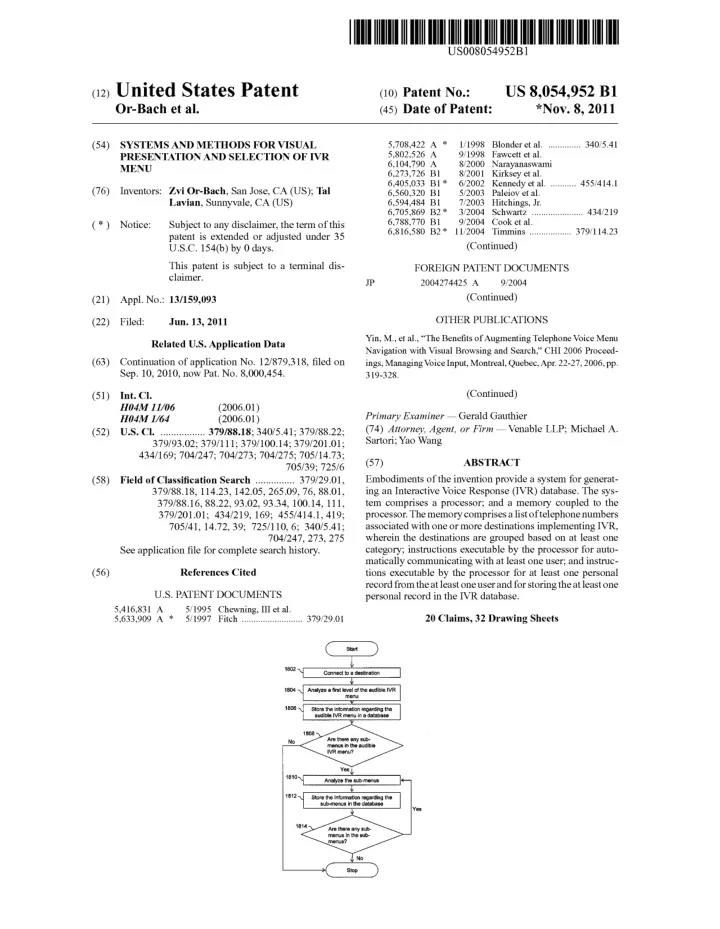

c12) United States Patent US 8,054,952 Bl (10) Patent No.: Or-Bach et - - PDF document

SLIDE 1

c12) United States Patent

Or-Bach et al.

(54) SYSTEMS AND METHODS FOR VISUAL PRESENTATION AND SELECTION OF IVR MENU (76) Inventors: Zvi Or-Bach, San Jose, CA (US); Tal Lavian, Sunnyvale, CA (US) ( *) Notice: Subject to any disclaimer, the term of this patent is extended or adjusted under 35 U.S.C. 154(b) by 0 days. This patent is subject to a terminal dis- claimer. (21)

• Appl. No.: 13/159,093

(22) Filed:

• Jun. 13, 2011

Related U.S. Application Data (63) Continuation of application No. 12/879,318, filed on

• Sep. 10, 2010, now Pat. No. 8,000,454.

(51)

• Int. Cl.

H04M 11106 (2006.01) H04M 1164 (2006.01) (52) U.S. Cl. ................. 379/88.18; 340/5.41; 379/88.22; 379/93.02; 379/111; 379/100.14; 379/201.01; 434/169; 704/247; 704/273; 704/275; 705/14.73; 705/39; 725/6 (58) Field of Classification Search ............... 379/29.01, 379/88.18, 114.23, 142.05, 265.09, 76, 88.01, 379/88.16,88.22, 93.02, 93.34, 100.14, 111, 379/201.01; 434/219, 169; 455/414.1, 419; 705/41, 14.72, 39; 725/110, 6; 340/5.41; 704/247, 273, 275 See application file for complete search history. (56) References Cited U.S. PATENT DOCUMENTS

5,416,831 A 5/1995 Chewning, III et al. 5,633,909 A * 5/1997 Fitch .......................... 379/29.01

111111 1111111111111111111111111111111111111111111111111111111111111

JP

US008054952B 1

(10) Patent No.:

US 8,054,952 Bl

(45) Date of Patent:

*Nov. 8, 2011

5,708,422 A * 5,802,526 A 6,104,790 A 6,273,726 B1 6,405,033 B1 * 6,560,320 B1 6,594,484 B1 6,705,869 B2 * 6,788,770 B1 6,816,580 B2 * 111998 Blonder eta!. .............. 340/5.41 9/1998 Fawcett eta!. 8/2000 Narayanaswami 8/2001 Kirksey eta!. 6/2002 Kennedy eta!. ........... 455/414.1 5/2003 Paleiov eta!. 7/2003 Hitchings, Jr. 3/2004 Schwartz ...................... 434/219 9/2004 Cook et al. 1112004 Tinnnins .................. 379/114.23

(Continued) FOREIGN PATENT DOCUMENTS

2004274425 A 9/2004

(Continued) OTHER PUBLICATIONS

Yin, M., eta!., "The Benefits of Augmenting Telephone Voice Menu Navigation with Visual Browsing and Search," CHI 2006 Proceed- ings, Managing Voice Input, Montreal, Quebec, Apr. 22-27, 2006, pp. 319-328.

(Continued) Primary Examiner- Gerald Gauthier (74) Attorney, Agent, or Firm- Venable LLP; Michael A. Sartori; Yao Wang (57) ABSTRACT Embodiments of the invention provide a system for generat- ing an Interactive Voice Response (IVR) database. The sys- tem comprises a processor; and a memory coupled to the

• processor. The memory comprises a list of

telephone numbers associated with one or more destinations implementing IVR, wherein the destinations are grouped based on at least one category; instructions executable by the processor for auto- matically communicating with at least one user; and instruc- tions executable by the processor for at least one personal record from the at least one user and for storing the at least one personal record in the IVR database. 20 Claims, 32 Drawing Sheets ( __

sta,_rt~)
