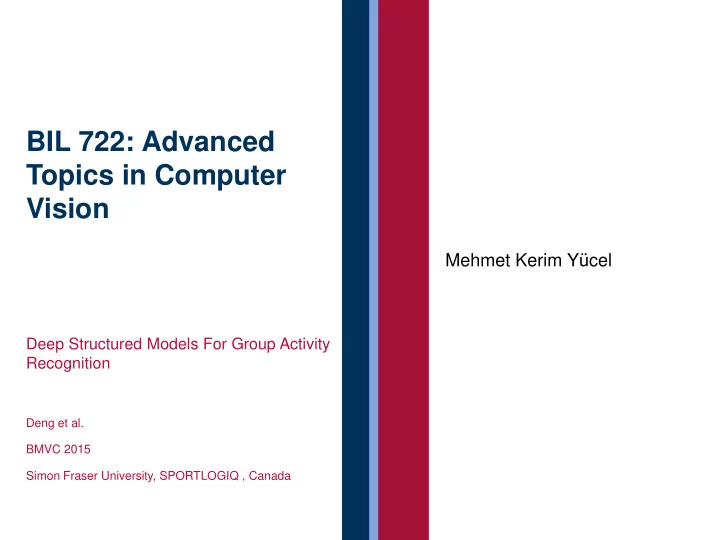

BIL 722: Advanced Topics in Computer Vision

Deep Structured Models For Group Activity Recognition

Deng et al. BMVC 2015 Simon Fraser University, SPORTLOGIQ , Canada

Mehmet Kerim Yücel

Brunel University London

Overview

25 April 2016

2

Deep Structured Models For Group Activity Recognition

• Deng, Zhiwei et al., BMVC 2015
• Simon Fraser University, SPORTLOGIQ, Canada

Useful links

• Paper

http://arxiv.org/pdf/1506.04191.pdf

• Code / BMVC presentation not available

Deep Structured Models For Group Activity Recognition

Brunel University London

Overview

25 April 2016

3

• Individual / group activity recognition problem
• Combining atomic action information with their dependencies
• Use deep CNNs to learn atomic actions / scene labels
• Then refine these labels with NN-made graphical models
• State of the art achieved for Collective Activity and Nursing

Home (?) Datasets

Deep Structured Models For Group Activity Recognition

Brunel University London

Overview

25 April 2016

4

• Major contributions
• First to combine CNNs and GM for group activity recognition
• Message passing phase created by Neural Nets
• Results comparable to state of the art

Deep Structured Models For Group Activity Recognition

Brunel University London

Literature Review

25 April 2016

5

• Event understanding is a notorious problem
• Need to acquire spot-on info on atomic actions
• Such actions include walking, running, waving, etc...
• Hand-crafted features (HOG, MBH, improved dense trajectories) in

the context of BoW [Wang, Heng, and Cordelia Schmid]

• Then feed these into a discriminative or generative model
• These are swept by DL approaches [Karpathy, Andrej et al.] [Simonyan, Karen,

and Andrew Zisserman]

Deep Structured Models For Group Activity Recognition

Brunel University London

Literature Review

25 April 2016

6

• Action Recognition with

Improved Trajectories 1

• Improve dense trajectories with

camera motion

• Remove trajectories consistent

with the estimated camera motion

• Cancel out camera motion from
• ptical flow

Deep Structured Models For Group Activity Recognition

Brunel University London

Literature Review

25 April 2016

7

• Large-scale Video Classification with convolutional neural

networks 2

• CNN variants experimented with (taking into account time-domain)

Deep Structured Models For Group Activity Recognition

Brunel University London

Literature Review

25 April 2016

8

• Two-stream Convolutional Networks for Action Recognition in

Videos 3

• Spatial stream net trained on single frame
• Temporal stream net trained on optical flow

Deep Structured Models For Group Activity Recognition

Brunel University London

Literature Review

25 April 2016

9

• Event understanding is a notorious problem
• We need: interactions of individuals, higher level information
• Such interactions and high level activities are suitable for a hierarchical

structure

• Rich features to capture context; social cues [Lan, Tian, Leonid Sigal, and Greg

Mori]

• Hierarchical Graphical Models [Amer, Mohamed Rabie, Peng Lei, and Sinisa Todorovic]
• Dynamic Bayesian Networks [Zhu, Yingying, Nandita Nayak, and Amit Roy-Chowdhury]

Deep Structured Models For Group Activity Recognition

Brunel University London

Literature Review

25 April 2016

10

• Combination of convolutional neural nets with graphical

models

• Tompson, Jonathan J., et al. one step message passing implemented

as convolution operation, incorporating spatial relations between local responses for human body pose estimation

• Deng, Jia, et al. relations between predicted labels considered via

training a GM on top of a neural net with joint training

Deep Structured Models For Group Activity Recognition

Brunel University London

Problem Statement & Motivation

25 April 2016

11

• Motivation of this work
• Further the state of the art in group activity recognition
• Accurately detect atomic actions/scene labels
• Incorporate dependencies between labels for actions/activities
• Perform label refinement through a hierarchical structure

incorporating said dependencies ... via using a CNN and a HGM based on a neural net that mimics message passing

Deep Structured Models For Group Activity Recognition

Brunel University London

Graphical Models in a Neural Network

25 April 2016

12

Deep Structured Models For Group Activity Recognition

• Graphical Models...
• Defines a joint distribution over states of a set of nodes
• Take a factor graph;
• Inference done by belief propagation
• Belief propagation, at each step of message passing, collects

relevant info from connected nodes to a factor node, then passes these messages to variable nodes

Brunel University London

Graphical Models in a Neural Network

25 April 2016

13

Deep Structured Models For Group Activity Recognition

• Key point: Mimic message passing using a neural network!
• Represent each combination of states as a neuron (factor neuron)
• Factor neuron can learn dependencies between states and pass

messages

• Can adopt various neuron types (linear, ReLU, TanH, etc...)
• Parameter sharing due to GM integration into NN; reduced free

parameters

Brunel University London

Graphical Models in a Neural Network

25 April 2016

14

Deep Structured Models For Group Activity Recognition

Brunel University London

Message Passing CNN Architecture

25 April 2016

15

Deep Structured Models For Group Activity Recognition

• Key point: Two-stage architecture
• First stage: Fine-tuned CNNs that produce scene scores for a

frame, and action and pose scores for each person in that frame

• Second stage: Message Passing NN that captures label

dependencies

Brunel University London

Message Passing CNN Architecture

25 April 2016

16

Deep Structured Models For Group Activity Recognition

Brunel University London

Message Passing CNN Architecture

25 April 2016

17

Deep Structured Models For Group Activity Recognition

• First stage: Three separate CNNs, for scene, action and pose

information

• All are fine-tuned using an AlexNet architecture trained on

ImageNet

• Quite similar architecture, except pooling is done before

normalization

• Five convolutional layer, two FC layers with softmax output

Brunel University London

Message Passing CNN Architecture

25 April 2016

18

Deep Structured Models For Group Activity Recognition

• Second stage: outputs of first stage taken as input
• Can contain several steps of message passing
• In each step, two types of passes occur:
• from outputs of step k-1 to factor layer
• from factor layer to k step outputs

Brunel University London

Message Passing CNN Architecture

25 April 2016

19

Deep Structured Models For Group Activity Recognition

• Second stage:
• In the kth message passing step, the first pass computes

dependencies between the states

• Inputs to this step;
• The first term is the scene score of Image I for label g
• The second term is the action score of person Im for label h
• The third term is the pose score of person Im for label z

Brunel University London

Message Passing CNN Architecture

25 April 2016

20

Deep Structured Models For Group Activity Recognition

• Second stage:
• In the factor layer, interactions of pose, action and scene are

calculated as;

• αg,h,z is 3-d parameter template for combination of scene g, action h and

pose z.

Brunel University London

Message Passing CNN Architecture

25 April 2016

21

Deep Structured Models For Group Activity Recognition

• Second stage:
• Pose actions for all people in the scene are calculated as;
• r is all output nodes for all people, t is the factor neuron index for scene g.
• T latent neurons are used for a scene g.
• Parameters β & α are shared within factors with the same semantic

meaning.

Brunel University London

Message Passing CNN Architecture

25 April 2016

22

Deep Structured Models For Group Activity Recognition

• Second stage:
• Output of kth step message passing, score for the scene label g is;
• . is the factor node connected with scene g in scene-action-pose
• component. is the pose-global factor node.

Brunel University London

Message Passing CNN Architecture

25 April 2016

23

Deep Structured Models For Group Activity Recognition

• Second stage:
• Output of kth step message passing, action score is;
• Pose score;
• Model parameters are weights on the edges of NN.
• Concatenation of weights from factor layer to output (W) (2nd pass)
• β & α are weights from inputs to factor layer (1st pass)

Brunel University London

Components in Factor Layers

25 April 2016

24

Deep Structured Models For Group Activity Recognition

• Unary component
• Group activity scores for an image I, action and pose scores for

each person Im in frame I

• Acquired from previous message passing step and added to the
• utput of next step

Brunel University London

Components in Factor Layers

25 April 2016

25

Deep Structured Models For Group Activity Recognition

• Group activity-action-pose layer ϕ
• Measure the compatibility between individuals and groups
• Capture dependencies between a person’s fine-grained action and

the scene label

Brunel University London

Components in Factor Layers

25 April 2016

26

Deep Structured Models For Group Activity Recognition

• Poses-all factor layer Ψ
• Global pose information captured for a scene
• T factor nodes ( T= 10) one scene label

Brunel University London

Multi Step Message Passing CNN Training

25 April 2016

27

Deep Structured Models For Group Activity Recognition

• Two message passing steps adopted
• Multi-loss training
• Remove the loss layers for actions/poses and learn activity params
• Fix the softmax layer for scene and learn actions/poses.
• Trained model is then used in the next message passing step

Brunel University London

Multi Step Message Passing CNN Training

25 April 2016

28

Deep Structured Models For Group Activity Recognition

• Learning semantic features for group activity
• In addition to learning features for classification task;
• Semantic high level features are learned
• Different layers’ features are explored; semantic features proven to

useful for scene understanding

Brunel University London

Implementation Details

25 April 2016

29

Deep Structured Models For Group Activity Recognition

• Not every frame might have same number of detections
• NN structure should be fixed!
• Solve this by dummy-image padding to reach a detection cap
• Deactive neurons related to these dummy components
• After 1st message passing, prior to next step
• Softmax-normalize pose,action and scene scores to get

probabilities

Brunel University London

Experiments

25 April 2016

30

Deep Structured Models For Group Activity Recognition

• Caffe framework used
• Two types of sparsely connected and weight shared input

layers

• From variable nodes to factor nodes
• The reverse direction
• TanH neurons in these layers

Brunel University London

Experiments

25 April 2016

31

Deep Structured Models For Group Activity Recognition

• Two datasets for scene classification
• Collective Activity [Gupta, Arpan, et al.]
• Nursing Home [Lan,Tian et al.]
• Features extracted from GM layer after each step of message

passing

• Fed to RBF-kernel SVM to predict scene labes for each frame

Brunel University London

Experiments

25 April 2016

32

Deep Structured Models For Group Activity Recognition

• Collective Activity Dataset
• 44 clips from handheld cameras
• Five action labels (crossing,waiting, queuing, walking and talking)
• Eight pose labels (right, front-right, front, front-left, left, back-left,

back, back-right)

• Five activity labels (crossing, waiting, queuing, walking, talking)
• Activity category chosen by taking the majority of actions (ignoring

poses)

Brunel University London

Results

25 April 2016

33

Deep Structured Models For Group Activity Recognition

• Collective Activity Dataset
• Concatanate global features with AC descriptors by HOG features
• Average AC descriptors for all people (not included in message

passing, helps with the limited amount of data)

AlexNet only classification achieves %48 accuracy.

Brunel University London

Results

25 April 2016

34

Deep Structured Models For Group Activity Recognition

Brunel University London

Experiments

25 April 2016

35

Deep Structured Models For Group Activity Recognition

• Nursing Home Dataset
• 80 videos captured in a nursing home
• Actions: standing, sitting, bending, squatting and falling
• Each frame given activity: fall or non-fall
• Due to intra-class diversity, action primitive based detectors

[Lan,Tian et al.] used

• No pose attribute, only one scene-action factor layer for message

passing

• SVM classifer fed DL features only

Brunel University London

Results

25 April 2016

36

Deep Structured Models For Group Activity Recognition

• Nursing Home Dataset
• Lower increase for additional message passing, why?

(hint:pose)

AlexNet baseline achieves %69 accuracy.

Brunel University London

Wrap Up

25 April 2016

37

Deep Structured Models For Group Activity Recognition

Brunel University London

Wrap Up

25 April 2016

38

• Group activity recognition / scene understanding
• Atomic actions captured by CNNs
• Dependency of scene labels and atomic actions

formulated as GM

• GM formulated as a NN (with several additional perks) that

mimics message passing

• Label refinement through dependencies achieved
• Results: comparable to state of the art

Deep Structured Models For Group Activity Recognition

Brunel University London

Strength and Weaknesses

20.04.16

39

• NN as a GM is a good idea
• Formulates the dependency of various information
• No comparison for Nursing Home Dataset
• Models/code not available
• Improved results by the authors

http://arxiv.org/pdf/1511.04196.pdf

Deep Structured Models For Group Activity Recognition

Brunel University London

Q & A

25 April 2016

40

Thank you for listening

Deep Structured Models For Group Activity Recognition
