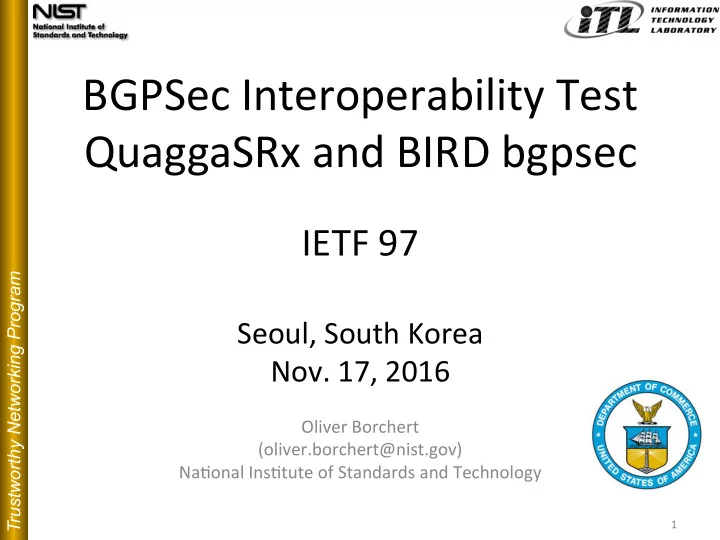

BGPSec Interoperability Test QuaggaSRx and BIRD bgpsec IETF 97 Trustworthy Networking Program Seoul, South Korea Nov. 17, 2016 Oliver Borchert (oliver.borchert@nist.gov) NaNonal InsNtute of Standards and Technology 1 Tested Systems:

slide-1
SLIDE 1

Trustworthy Networking Program

BGPSec Interoperability Test QuaggaSRx and BIRD bgpsec

IETF 97

Seoul, South Korea

  • Nov. 17, 2016

Oliver Borchert (oliver.borchert@nist.gov) NaNonal InsNtute of Standards and Technology

1

slide-2
SLIDE 2

Trustworthy Networking Program

Tested Systems:

QuaggaSRx BGPSEC-IO*

(hUps://bgpsrx.antd.nist.gov)

BIRD bgpsec

(hUps://bgpsrx.antd.nist.gov)

*BGPSEC Traffic Generator

2

slide-3
SLIDE 3

Trustworthy Networking Program

Topology Scenario S1

AS10 QuaggaSRx AS20 BIRD bgpsec AS50 QuaggaSRx AS30 BIRD bgpsec AS40 QuaggaSRx AS100 BGPSEC-IO 10.10.0.0/16 10.10.1.0/24 10.10.2.0/24 10.10.0.0/16 10.10.1.0/24 10.10.2.0/24

3

ROA’s 10.10.0.0/16-24, 10 AS100 aUempts to hijack the traffic of AS10

slide-4
SLIDE 4

Trustworthy Networking Program

StarNng AS 10, 20, 30, 40, 50

4

slide-5
SLIDE 5

Trustworthy Networking Program

StarNng AS 10, 20, 30, 40, 50

5

slide-6
SLIDE 6

Trustworthy Networking Program

Switching to AS40

6

slide-7
SLIDE 7

Trustworthy Networking Program

Switching to AS40

7

slide-8
SLIDE 8

Trustworthy Networking Program

Adding Traffic using BGPSEC-IO

8

slide-9
SLIDE 9

Trustworthy Networking Program

Adding Traffic using BGPSEC-IO

9

slide-10
SLIDE 10

Trustworthy Networking Program

Adding Traffic using BGPSEC-IO

10

BGPSEC Path ValidaNon RPKI Origin ValidaNon

slide-11
SLIDE 11

Trustworthy Networking Program

Result

  • The Prefix Hijack was unsuccessful:

– Announced prefixes passed path validaNon – Announcement failed RPKI origin valida-on

  • Policy is prefer valid

– no switch to shorter invalid route

11

slide-12
SLIDE 12

Trustworthy Networking Program

Topology Scenario S2

AS10 QuaggaSRx AS20 BIRD bgpsec AS50 QuaggaSRx AS30 BIRD bgpsec AS40 QuaggaSRx AS100 BGPSEC-IO AS10 10.10.0.0/16 10.10.1.0/24 10.10.2.0/24 10.10.0.0/16 10.10.1.0/24 10.10.2.0/24

12

ROA’s 10.10.0.0/16-24, 10 AS100 aUempts to hijack the traffic of AS10 by pre-pending AS10

slide-13
SLIDE 13

Trustworthy Networking Program

RestarNng Traffic using BGPSEC-IO

13

slide-14
SLIDE 14

Trustworthy Networking Program

RestarNng Traffic using BGPSEC-IO

14

slide-15
SLIDE 15

Trustworthy Networking Program

RestarNng Traffic using BGPSEC-IO

15

BGPSEC Path ValidaNon RPKI Origin ValidaNon

slide-16
SLIDE 16

Trustworthy Networking Program

Result

  • The Prefix Hijack was unsuccessful:

– Announced prefixes failed path valida-on – Announcement passed RPKI origin validaNon

  • Policy is prefer valid

– no switch to shorter invalid route

16

slide-17
SLIDE 17

Trustworthy Networking Program

QuesNons ?

  • liver.borchert@nist.gov

NaNonal InsNtute of Standards and Technology

17
