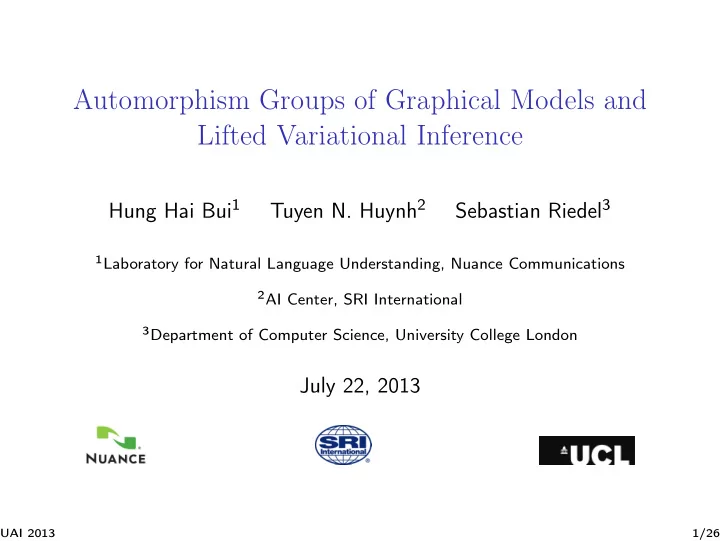

Automorphism Groups of Graphical Models and Lifted Variational Inference

Hung Hai Bui1 Tuyen N. Huynh2 Sebastian Riedel3

1Laboratory for Natural Language Understanding, Nuance Communications 2AI Center, SRI International 3Department of Computer Science, University College London

July 22, 2013

UAI 2013 1/26

Motivations

• Probabilistic inference – exploit low tree-width, local graph

sparsity

• What about the above graphical models?
• Inference can be done efficiently using lifted inference.
• Why? “Symmetry” is essential.
• What is symmetry?
• How do we exploit symmetry in variational inference?

UAI 2013 2/26

Motivations (cont.)

• Lifted inference methods mostly are derived procedurally:
• identify same duplicated computational steps that can be

performed once.

• Not clear what form of symmetry is being exploited.
• Hard to generalize.
• We propose a declarative approach
• Formalize symmetry in graphical models
• Lift variational optimization formulations rather than lift

inference algorithms

• Lifted problems can be solved with the usual optimization

tool-box (LP solvers, cutting plane, dual decomposition, etc)

• Connect lifted inference and mainstream variational

approximations

UAI 2013 3/26

Outline

1 Motivation 2 Symmetry of Graphical Models 3 A General Framework for Lifted Convex Variational Inference 4 Lifted MAP with Local and Cycle constraints 5 Experiments

UAI 2013 4/26

Symmetry in Graphs

• Symmetry is formalized as the set of transformations that

preserve the object.

• The set of all such transformations (permutations) π form the

automorphism group.

S5 S4 x S3 D5

(a) (b) (c) (d) 1

• The automorphism group partitions the set of nodes into
• rbits.
• Node orbit is a set of nodes equivalent up to symmetry.
• Similarly for edge orbits and configuration (node-value

assignment) orbits.

UAI 2013 5/26

Symmetry of Graphical Models

• Exponential family

F(x | θ) = exp (Φ(x), θ − A(θ)) x ∈ Rn, θ ∈ Rm

• Automorphisms are permutations of variables and features

preserving Φ.

• Formally, a pair (π, γ) ∈ Sn × Sm such that

Φγ−1(xπ) ≡ Φ(x) i.e., Φi(xπ) ≡ Φγ(i)(x)

UAI 2013 6/26

Symmetry of Graphical Models (cont.)

G

1 3 4 2 f1 f2 f3 f4 f5 G Colored G Orbits of G

• Automorphisms of Colored G are automorphisms of F
• So far we’ve ingored parameters. If parameters are tied
• Refine colors of features to be consistent with parameter tying
• Similarly compute the automophorism group consistent with

parameter tying

UAI 2013 7/26

Properties of Exponential Family Automorphisms Theorem

If (π, γ) ∈ Aut[F] then

• Pr(xπ|θγ) = Pr(x|θ)
• π is an automorphism of the structure graph G[F].
• Θγ = Θ and A(θγ) = A(θ)
• Mγ = M and A∗(µγ) = A∗(µ)
• mγ(θ) = m(θγ)

Proof tools: theory of group actions, orbit-stabilizer theorem

UAI 2013 8/26

Partitions and Symmetrized Subspaces

A partition ∆ of {1 . . . m} induces a symmetrized subspace Rm

∆ of

points r in Rm such that if j and j′ are in the same cell of ∆, then rj = rj′.

1 2 3

RΔ

3

Δ = {1,{2,3}}

S∆ denotes the intersection of S with the subspace: S ∩ Rm

∆

UAI 2013 9/26

Variational Inference with Parameter Tying

Given parameter-tying partition ∆ and θ ∈ Θ∆. Solve sup

µ∈M

θ, µ − A∗(µ) How does symmetry help? Intuitions:

• some features have the same expectations, so some µi’s are

the same.

• optimal µ is trapped in a symmetrized subspace Rm

ϕ for some

lifting partition ϕ

• this generalizes to general convex optimization problem
• How to find ϕ?

UAI 2013 10/26

Lifted Variational Inference Framework

Mean parameter space Symmetry of the family Parameter-tying

Δ Aut[F] AutΔ[F]

Lifting group

ϕ

Lifting partition (feature orbit partition)

M Rϕ

m

Symmetrized subspace

Mϕ

Lifted mean parameter space

UAI 2013 11/26

Lifted Variational Inference Framework (cont.) Theorem

Marginal inference sup

µ∈M

θ, µ − A∗(µ) = sup

µ∈Mϕ

θ, µ − A∗(µ) MAP inference sup

µ∈M

θ, µ = sup

µ∈Mϕ

θ, µ

UAI 2013 12/26

Lifted Marginal Polytope Mϕ

Configuration orbit Centroid

Mϕ

• M projected to Rm

ϕ = M intersects with Rm ϕ

• Projection view:
• Ground configurations in the same orbit project to the same

point, which is the centroid of the orbit

• num. extreme points ≤ num. of configuration orbits (typically

still exponential)

• For complete symmetric graphical models with N binary

variables:

• num. configuration orbits = N + 1

UAI 2013 13/26

Lifted Marginal Polytope Mϕ

• Intersection view
• Let ρ be the orbit mapping function ρ : i → orb(i)
• M described by a system of constraints T1(µ) . . . TK(µ)
• Intersect Tk with Rm

ϕ means substitute µi by ¯

µρ(i)

• num. variables reduced to num. feature orbits
• num. constraints unchanged
• However, many constraints become redundant and can be

removed

• This view is useful in practice for lifting outer bounds of M

UAI 2013 14/26

Lifted Approximate MAP Inference Theorem

Lifted Relaxed MAP: If OUTER = OUTER(G) depending only on the graphical model structure G sup

µ∈OUTER

θ, µ = sup

µ∈OUTERϕ

θ, µ

UAI 2013 15/26

Lifted MAP on LOCAL

LOCAL=

           τ ≥ 0

• τv:0 + τv:1 = 1

∀v ∈ V(G) τ{u:0,v:0} + τ{u:0,v:1} = τu:0 τ{u:0,v:0} + τ{v:0,u:1} = τv:0 ∀ {u, v} ∈ E(G) τ{u:1,v:1} + τ{u:0,v:1} = τv:1 τ{u:1,v:1} + τ{v:0,u:1} = τu:1           

LOCALϕ =

           ¯ τ ≥ 0

• ¯

τv:0 + ¯ τv:1 = 1 ∀ node orbit v ¯ τe:00 + ¯ τ(u,v):01 = ¯ τ¯

u:0

¯ τe:00 + ¯ τ(v,u):01 = ¯ τ¯

v:0

∀ edge orbit e with ¯ τe:11 + ¯ τ(u,v):01 = ¯ τ¯

v:1

{u, v} a representative of e ¯ τe:11 + ¯ τ(v,u):01 = ¯ τ¯

u:1

          

• num. constraints is O(#node orbits + #edge orbits).
• Lifted LOCAL LP can be solved by a generic solver, or a

message-passing variant, e.g., MPLP.

UAI 2013 16/26

Tightening Bound: Cycle Polytope

Cycle constraints (Sontag & Jaakkola 07):

1 1 1 X X X X =

• {u,v}∈F nocut({u, v}, τ) +

{u,v}∈C\F cut({u, v}, τ) ≥ 1

C a cycle in G, F ⊂ C, |F| is odd cut({u, v}, τ) = τu:0,v:1 + τu:1,v:0 nocut({u, v}, τ) = τu:0,v:0 + τu:1,v:1

• num. constraints is large
• Iteratively add violated cycle contraint via cutting plane
• Run shortest path on mirror graph of G to find violated

constraint

UAI 2013 17/26

Lifted Cycle Polytope

• Substituting ground variables τ by lifted variables ¯

τ yields lifted cycle constraints

• {u,v}∈F

nocut({u, v}, ¯ τ) +

• {u,v}∈C\F

cut({u, v}, ¯ τ) ≥ 1

• However
• these constraints are still defined on cycles of the ground

graphical model G.

• many constraints are duplicates
• Can we characterize cycle constraints using the lifted graph ¯

G?

• not straightforward, since cycles in ¯

G might not correspond to cycles in G

UAI 2013 18/26

Lifted Cycle Polytope (cont.)

• Fix a node i (mark i distinct), let ¯

G[i] be the new lifted graph

G[i]

Node Orbits of G i Node Orbits of G fixing i {i}

• A cycle through {i} on ¯

G[i] always corresponds to a set of cycles throuh i on G.

• Violated constraints on ground cycles through i can be found

by

• forming mirror graph of ¯

G[i]

• running shortest path from {i} to its mirror node

UAI 2013 19/26

Lifted MAP with Cycle Constraints

Algorithm

1 constraints ← LOCALϕ 2 ¯

τ ←Solve max¯

t

¯ t, ¯ θ

• given current constraints

3 ∀ node orbit v, pick a representative i ∈ v. Find the shortest path

from {i} to {i}-mirror on the mirror graph of ¯ G[i].

4 If shortest-path < 1, add violated constraint to the current set of

constraints.

5 If no more violated constraint, exit; else goto 2.

UAI 2013 20/26

Markov Logic Networks (MLNs)

• “Lovers & Smokers” Markov Logic Network

100 Male(x) ⇔ ¬Female(x) 2 Male(x) ∧ Smokes(x) 2 Female(x) ∧ ¬Smokes(x) 0.5 x = y ∧ Male(x) ∧ Female(y) ∧ Loves(x, y) 0.5 x = y ∧ Loves(x, y) ⇒ (Smokes(x) ⇔ Smokes(y)) −100 x = y ∧ y = z ∧ z = x ∧ Loves(x, y) ∧ Loves(y, z) ∧ Loves(x, z)

• How to find lifting partition?
• Ground the model, construct colored factor graph and run

graph automorphism tool (e.g. nauty)

• Can we do this without grounding?

UAI 2013 21/26

Renaming Symmetry of MLNs

• Let D∗ be the set of individuals that do not appear as

constants in MLN.

• Intuition: every permutation (renaming) of individuals in D∗

preserves the probabilistic model.

Theorem

The renaming group S(D∗) is (isomorphic to) a subgroup of the MLN’s lifting group

• The number of orbits induced by this group does not depend
• n domain size |D|.
• Example: observed one constant a
• Renaming group induces 5 orbits for Love predicate

{L(a, a)}, {L(x, x)}, {L(a, x)}, {L(x, a)}, {L(x, y)} x, y = a, x = y

UAI 2013 22/26

Experiment

Finding symmetry: renaming group versus graph automorphism (nauty)

domain size 10 20 50 100 200 1000 Nauty #Orbits 12 23 25 27 * * Time(s) .49 1.77 172.79 9680.48 * * Renaming #Orbits 12 23 80 255 905 20505 Time(s) .08 .09 .221 .4 .84 2.19

UAI 2013 23/26

Experiment (cont.)

Lifted MAP (LOCAL, CYCLE) inference versus ground counterparts

515 ¡ 516 ¡ 517 ¡ 518 ¡ 519 ¡ 520 ¡ 521 ¡ 522 ¡ 0 ¡ 10 ¡ 20 ¡ 30 ¡ 40 ¡ Objec&ve ¡ ¡ Time(s) ¡

(b) ¡Objec&ve ¡over ¡&me ¡for ¡domain ¡size ¡5 ¡

True ¡Op2mal ¡ Local ¡ Cycle ¡ Renaming-­‑Local ¡ Renaming-­‑Cycle ¡ 0.001 ¡ 0.01 ¡ 0.1 ¡ 1 ¡ 10 ¡ 100 ¡ 1000 ¡ 10000 ¡ 100000 ¡ 5 ¡ 10 ¡ 15 ¡ 20 ¡ 100 ¡ 1000 ¡ Time ¡(s) ¡ Domain ¡size ¡

(a) ¡Run&me ¡vs. ¡domain ¡size ¡

“Lovers & Smokers” MLN without evidence, varying domain size

UAI 2013 24/26

Experiment (cont.)

Lifted CYCLE versus lifted LOCAL

0.001 ¡ 0.01 ¡ 0.1 ¡ 1 ¡ 10 ¡ 100 ¡ 1000 ¡ 10000 ¡ 100000 ¡ 2 ¡ 4 ¡ 6 ¡ 8 ¡ 10 ¡ Time(s) ¡ Number ¡of ¡observed ¡constants ¡ Renaming-­‑Local ¡ Renaming-­‑Cycle ¡ 14500 ¡ 15000 ¡ 15500 ¡ 16000 ¡ 16500 ¡ 2 ¡ 4 ¡ 6 ¡ 8 ¡ 10 ¡ Objec7ve ¡ Number ¡of ¡observed ¡constants ¡

“Lovers & Smokers” MLN with varying amount of soft evidence, fixing domain size to 100

UAI 2013 25/26

Conclusion and Future Direction

• Summary:
• First rigorous formalization of symmetry in graphical models
• A general framework for lifting convex outer bound variational

approximations

• First lifted algorithm that works with a bound tighter than the

local polytope

• Related and Future work:
• Exploit symmetry of the log-partition function A (Bui et al.,

AAAI’12)

• Exploit symmetry in sampling methods (Niepert UAI’12,

AAAI’13)

• Lift convex variational marginal inference

UAI 2013 26/26
