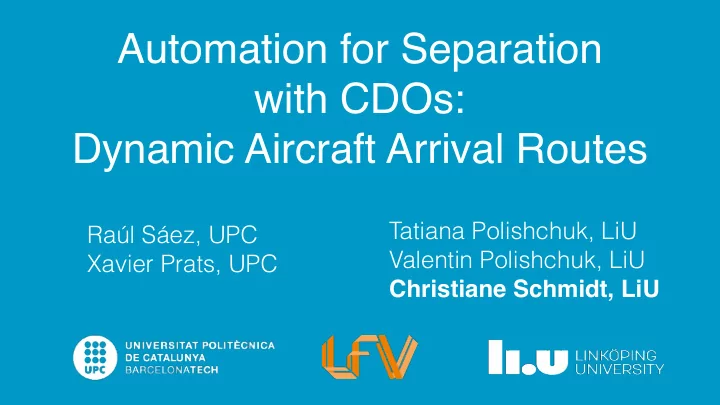

Automation for Separation with CDOs: Dynamic Aircraft Arrival Routes

Raúl Sáez, UPC Xavier Prats, UPC Tatiana Polishchuk, LiU Valentin Polishchuk, LiU Christiane Schmidt, LiU

slide-2
SLIDE 2

NTKt, October 23, 2019

Motivation

2

๏ Air transportation grows:

  • Beneficial for growing global economy
  • Increased complexity for air traffic controllers (ATCOs)
  • Environmental effects

๏ Terminal Maneuvering Areas (TMAs) most congested ➡ Optimization of arrival and departure procedures is needed:

  • Lessen ATCO workload
  • Mitigate environmental impact

Our solution: ๏ Automatically temporally separated arrivals to reduce complexity and ATCO’s workload ๏ Aircraft fly according to optimal continuous descent operations (CDOs):

  • Promising solution to mitigate environmental effects, according to ICAO and EUROCONTROL:

CDOs "allow aircraft to follow a flexible, optimum flight path that delivers major environmental and economic benefits— reduced fuel burn, gaseous emissions, noise and fuel costs—without any adverse effect on safety”

slide-3
SLIDE 3

NTKt, October 23, 2019

CDOs

3

CDOs have shown important environmental benefits w.r.t. conventional (step-down) approaches in TMAs

Figure source: Performance comparison between TEMO and a typical FMS in presence of CTA and wind uncertainties, by Ramon Dalmau, Xavier Prats, Ronald Verhoeven and Nico de Gelder, DASC 2016

slide-4
SLIDE 4

NTKt, October 23, 2019

Previous Work 4

  • LiU-LFV:
  • Optimal standard arrival routes (STARs)
  • Time-separated demand-weighted arrival routes (dynamic,

for pre-tactical planning), assuming unit edge traversal time

  • UPC: CDO-enabled optimized arrival procedures (engine-idle,

low noise)

  • Here: Automated time-separated demand-weighted CDO-

enabled optimized arrival routes

slide-5
SLIDE 5

NTKt, October 23, 2019 5

Grid-based MIP Formulation

slide-6
SLIDE 6

NTKt, October 23, 2019

Input

  • Location and direction

  • f the airport runway
  • Locations of the entry points to

the TMA

  • Aircraft arrival times at the entry

points for a fixed time period

  • Cruise conditions (altitude, true

airspeed, distance to entry point + path distance inside TMA) and aircraft type for CDO profile generation

6

Ent 3 Ent 2

RWY

Ent 1 Ent 4

slide-7
SLIDE 7

NTKt, October 23, 2019

Output

7

Ent 3 Ent 2

RWY

Ent 4 Ent 1

Optimal arrival tree that:

  • Merges traffic from the entries to

the runway

  • Ensures safe aircraft separation

for the given time period ⇨ A set of time-separated CDO- enabled tree-shaped aircraft trajectories optimized w.r.t. the traffic demand during the given period

RWY

slide-8
SLIDE 8

NTKt, October 23, 2019

Operational Requirements

8

๏ No more than two routes merge at a point: in-degree ≤ 2 ๏ Merge point separation: distance threshold L ๏ No sharp turns: angle threshold α, minimum edge length L ๏ Temporal separation of all aircraft along the routes ๏ All aircraft fly energy-neutral CDO:
 idle thrust, no speed brakes (noise avoidance) ๏ Smooth transition between consecutive trees when switching

slide-9
SLIDE 9

NTKt, October 23, 2019

Grid-based MIP Formulation

9

Ent 3 Ent 2

RWY

Ent 1 Ent 4

  • Square grid in the TMA
  • Snap locations of the entry points

and the runway into the grid

  • Grid cell side of the length L

(separation parameter)

slide-10
SLIDE 10

NTKt, October 23, 2019

Grid-based MIP Formulation

10

Ent 3 Ent 2

RWY

Ent 1 Ent 4

  • Square grid in the TMA
  • Snap locations of the entry points

and the runway into the grid

  • Grid cell side of the length l

(separation parameter)

  • Every node connected to its 8

neighbours

slide-11
SLIDE 11

NTKt, October 23, 2019

Grid-based MIP Formulation

11

Ent 3 Ent 2

RWY

Ent 1 Ent 4

  • Square grid in the TMA
  • Snap locations of the entry points

and the runway into the grid

  • Grid cell side of the length l

(separation parameter)

  • Every node connected to its 8

neighbours

  • Problem formulated as MIP
  • Based on flow MIP formulation for

Steiner trees

slide-12
SLIDE 12

NTKt, October 23, 2019

MIP Formulation

12

VARIABLES OBJECTIVES

Demand-weighted path length: Total tree weight:

  • decision variable - indicates whether edge e participates in arrival tree
  • gives the flow on edge e = (i, j), non-negative

Short flight routes for aircraft Arrival tree should “occupy little space”

slide-13
SLIDE 13

NTKt, October 23, 2019

Constraints

13

๏ Flow constraints ๏ Degree constraints ๏ Turn angle constraints ๏ Auxiliary constraints to prevent crossings ๏ Temporal separation of all aircraft along the routes ๏ Realistic CDO speed profiles ๏ Consistency between trees of different time periods

slide-14
SLIDE 14

NTKt, October 23, 2019 14

Flow from all entry points reaches runway Flow of #a/c leaves each entry point Flow conservation Edges with positive flow are in STAR Flow non-negative Edge decision variables are binary Degree constraints: Outdegree of every vertex at most 1, maximum indegree is 2. Runway only one ingoing, entry points only one

  • utgoing edge.

ae = |Ae|

X

k:(k,i)∈E

fki − X

j:(i,j)∈E

fij = 8 > < > : P

k∈EP κk

i = R −κi i ∈ EP i ∈ V \ {EP ∪ R} (1) xe ≥ fe |EP| ∀e ∈ E (2) fe ≥ 0 ∀e ∈ E (3) xe ∈ {0, 1} ∀e ∈ E (4) X

k:(k,i)∈E

xki ≤ 2 ∀i ∈ V \ {EP ∪ R} (5) X

j:(i,j)∈E

xij ≤ 1 ∀i ∈ V \ {EP ∪ R} (6) X

k:(k,R)∈E

xkR = 1 (7) X

j:(R,j)∈E

xRj ≤ 0 (8) X

k:(k,i)∈E

xki ≤ 0 ∀i ∈ EP (9) X

j:(i,j)∈E

xij = 1 ∀i ∈ EP (10) aexe + X

f∈Ae

xf ≤ ae ∀e ∈ E (11)

  • T. Andersson, T. Polishchuk, V. Polishchuk, C. Schmidt. Automatic Design of Aircraft Arrival Routes with

Limited Turning Angle. ATMOS 2016, Aarhus, Denmark.

If an edge xe the angle to the consecutive segment of a route is never smaller than 𝞫

slide-15
SLIDE 15

NTKt, October 23, 2019

Constraints

15

Auxiliary Constraints to Prevent Crossings

Why? Temporal Separation may enforce paths that are not shortest, hence, crossings may appear

  • J. Dahlberg, T. Andersson Granberg , T. Polishchuk, C. Schmidt, L. Sedov. Capacity-Driven Automac

Design of Dynamic Aircraft Arrival Routes. DASC 2018, London, UK. For all points except last column, last row, entries and rwy: For different entry point locations:

slide-16
SLIDE 16

NTKt, October 23, 2019

Constraints

16

Temporal Aircraft Separation

Assumption: unit time u to cover a single edge

More variables: - binary, shows a/c a at node j at time t

  • binary: edge e in the route from entry point b

Connect to plus several other constraints Set:

Forward the information on the times at which a arrives at nodes along the route from b to the rwy

  • J. Dahlberg, T. Andersson Granberg , T. Polishchuk, C. Schmidt, L. Sedov. Capacity-Driven

Automatic Design of Dynamic Aircraft Arrival Routes. DASC 2018, London, UK.

Aircraft arriving at entry point b Time when aircraft a arrives at entry point b

Temporal separation: 𝞃 - separation parameter Not linear ⟹ we linearise using a new variable za,j,k,b,t

slide-17
SLIDE 17

NTKt, October 23, 2019

Constraints

17

๏ Flow constraints ๏ Degree constraints ๏ Turn angle constraints ๏ Auxiliary constraints to prevent crossings ๏ Temporal separation of all aircraft along the routes ๏ Realistic CDO speed profiles ๏ Consistency between trees of different time periods

slide-18
SLIDE 18

NTKt, October 23, 2019

Realistic CDO Speed Profiles

18

  • The state vector x represents the fixed initial conditions of the aircraft: TAS v, altitude

h and distance to go s

  • To achieve environmentally friendly trajectories, idle thrust is assumed and speed-

brakes use is not allowed throughout the descent → energy-neutral CDO

  • The flight path angle is the only control variable in this problem → control vector u
slide-19
SLIDE 19

NTKt, October 23, 2019

Realistic CDO Speed Profiles

19

Dynamic constraints Path constraints Terminal constraints

  • A point-mass representation of the aircraft reduced to a “gamma-command” is considered,

where vertical equilibrium is assumed → Dynamic constraints f

  • Path constraints h are enforced to ensure that the aircraft airspeed remains within
  • perational limits, and that the maximum and minimum descent gradients are not exceeded
  • Terminal constraints 𝜔 fix the final states vector
slide-20
SLIDE 20

NTKt, October 23, 2019

Realistic CDO Speed Profiles

20

Sáez, R., Dalmau, R., & Prats, X. (2018 , Sep). Optimal assignment of 4D close-loop instructions to enable CDOs in dense TMAs. Proceedings of the 37th IEEE/AIAA Digital Avionics Systems Conference (DASC)

  • The trajectory is divided in two phases: the latter part of the cruise phase prior

the top of descent (TOD) and the idle descent

  • The original cruise speed is not modified after the optimization process, so the

two-phases optimal control problem can be converted into a single-phase

  • ptimal control problem
  • BADA V4 is used to model the aircraft performance
slide-21
SLIDE 21

NTKt, October 23, 2019

Constraints

21

๏ Flow constraints ๏ Degree constraints ๏ Turn angle constraints ๏ Auxiliary constraints to prevent crossings ๏ Temporal separation of all aircraft along the routes ๏ Realistic CDO speed profiles ๏ Consistency between trees of different time periods

slide-22
SLIDE 22

NTKt, October 23, 2019

Constraints

22

Integration of CDO-enabled Realistic Speed Profiles

Substitute: with - binary, indicates whether a/c a using speed profile p occupies the n-th vertex j at time t. Compute l(b) - path length from b to the rwy For each a/c a arriving from b we pick the speed profile from S(a) that has the length l(b), i.e., we want: l(b) is a variable ⟹ We use auxiliary binary variables and constraints to achieve this. Separation constraint: 𝞃 - separation parameter Substitute the corresponding equations with: Set of all speed profiles (different lengths) for aircraft a

slide-23
SLIDE 23

NTKt, October 23, 2019

Constraints

23

Consistency between trees of consecutive time periods

Define: - edge indicators for current and previous periods U - limits the number of differing edges in the two trees

slide-24
SLIDE 24

NTKt, October 23, 2019 24

Experimental Study: Stockholm Arlanda Airport

slide-25
SLIDE 25

NTKt, October 23, 2019

Experimental Airport: Stockholm Arlanda Airport

25

๏ Data: Stockholm Arlanda airport arrivals during one hour of

  • peration

๏ Source: EUROCONTROL DDR2, BADA 4 ๏ High-traffic scenario on October 3, 2017, time: 15:00 - 16:00 ๏ Solved using GUROBI ๏ Run on a powerful Tetralith server, provided by SNIC, LIU: Intel HNS2600BPB nodes with 32 CPU cores and 384 GiB RAM

slide-26
SLIDE 26

NTKt, October 23, 2019

CDO profiles inside TMA

26

๏ Cruise conditions are obtained from DDR2 ๏ TOD position and descent phase are

  • ptimized

๏ Same time at the entry point for different path lengths inside TMA

slide-27
SLIDE 27

NTKt, October 23, 2019

CDO profiles inside TMA

27

๏ A set of realistic alternative speed profiles for different possible route lengths inside TMA ๏ Generated for all a/c types arriving to Arlanda during the given period ๏ Used as input to MIP

Example of A320 speed profiles for different path lengths inside TMA

slide-28
SLIDE 28

NTKt, October 23, 2019

Results: Stockholm Arlanda Airport

28

Tree 1: time: 15:00 - 15:30 (10 a/c) Tree 2: time: 15:30 - 16:00 (7 a/c)

slide-29
SLIDE 29

NTKt, October 23, 2019

Results: Stockholm Arlanda Airport

29

๏ Tree 1: time: 15:00 - 15:30 (10 a/c) ๏ Tree 2: time: 15:30 - 16:00 (7 a/c) ๏ Optimized for 30 min intervals (longer periods may be sub-optimal. Note: time within TMA 5-18 min) ๏ U = 23 provides consistency between the trees ๏ Separation: 2 min, ~6 nm ๏ 17 out of 22 arrivals scheduled ๏ 5 filtered out, because of:

  • Initial violation of separation at entry points
  • Potential overtaking problem
  • In general, about 10-15% are not scheduled
slide-30
SLIDE 30

NTKt, October 23, 2019 30

Comparison against historical trajectories (Open Sky Network)

slide-31
SLIDE 31

NTKt, October 23, 2019 31

Time Schedule

slide-32
SLIDE 32

NTKt, October 23, 2019 32

t = 15:00

slide-33
SLIDE 33

NTKt, October 23, 2019 33

t = 15:03

slide-34
SLIDE 34

NTKt, October 23, 2019 34

t = 15:04

slide-35
SLIDE 35

NTKt, October 23, 2019 35

t = 15:05

slide-36
SLIDE 36

NTKt, October 23, 2019 36

t = 15:07

slide-37
SLIDE 37

NTKt, October 23, 2019 37

t = 15:08

slide-38
SLIDE 38

NTKt, October 23, 2019 38

t = 15:09

slide-39
SLIDE 39

NTKt, October 23, 2019 39

t = 15:10

slide-40
SLIDE 40

NTKt, October 23, 2019 40

t = 15:11

slide-41
SLIDE 41

NTKt, October 23, 2019 41

t = 15:12

slide-42
SLIDE 42

NTKt, October 23, 2019 42

t = 15:13

slide-43
SLIDE 43

NTKt, October 23, 2019 43

t = 15:14

slide-44
SLIDE 44

NTKt, October 23, 2019 44

t = 15:15

slide-45
SLIDE 45

NTKt, October 23, 2019 45

t = 15:16

slide-46
SLIDE 46

NTKt, October 23, 2019 46

t = 15:17

slide-47
SLIDE 47

NTKt, October 23, 2019 47

t = 15:18

slide-48
SLIDE 48

NTKt, October 23, 2019 48

t = 15:19

slide-49
SLIDE 49

NTKt, October 23, 2019 49

t = 15:20

slide-50
SLIDE 50

NTKt, October 23, 2019 50

t = 15:21

slide-51
SLIDE 51

NTKt, October 23, 2019 51

t = 15:22

slide-52
SLIDE 52

NTKt, October 23, 2019 52

t = 15:23

slide-53
SLIDE 53

NTKt, October 23, 2019 53

t = 15:24

slide-54
SLIDE 54

NTKt, October 23, 2019 54

t = 15:25

slide-55
SLIDE 55

NTKt, October 23, 2019 55

t = 15:26

slide-56
SLIDE 56

NTKt, October 23, 2019 56

t = 15:27

slide-57
SLIDE 57

NTKt, October 23, 2019 57

t = 15:28

slide-58
SLIDE 58

NTKt, October 23, 2019 58

t = 15:29

slide-59
SLIDE 59

NTKt, October 23, 2019 59

t = 15:30

slide-60
SLIDE 60

NTKt, October 23, 2019 60

t = 15:30

slide-61
SLIDE 61

NTKt, October 23, 2019 61

t = 15:30

slide-62
SLIDE 62

NTKt, October 23, 2019 62

t = 15:30

slide-63
SLIDE 63

NTKt, October 23, 2019 63

t = 15:30

slide-64
SLIDE 64

NTKt, October 23, 2019 64

t = 15:31

slide-65
SLIDE 65

NTKt, October 23, 2019 65

t = 15:32

slide-66
SLIDE 66

NTKt, October 23, 2019 66

Conclusions and Future Work

slide-67
SLIDE 67

NTKt, October 23, 2019

Conclusions and Future Work

67

๏ Flexible optimization framework for dynamic route planning inside TMA ๏ Automated spatial and temporal separation ๏ Environmentally-friendly speed profiles (CDO) ๏ Applicable to any other realistic speed profiles ๏ May be used for TMA capacity evaluation ๏ Account for uncertainties due to variations in arrival times ๏ Solve overtaking problem (allow non-optimal profiles, or route stretching) ๏ Consider fleet diversity ๏ Elaborate on implementation possibilities, link to the future operational enablers (data links, technologies) for air-ground synchronisation (EPP)

Conclusions Future Work

slide-68
SLIDE 68

NTKt, October 23, 2019 68

THANKS.
