Automated Testing of Debian Packages Holger Levsen - - PowerPoint PPT Presentation

▶

Jan 19, 2024 975 likes •1.38k views

Introduction Lintian and Linda Rebuilding packages Piuparts Structuring QA Conclusion Automated Testing of Debian Packages Holger Levsen debian@layer-acht.org Lucas Nussbaum lucas@debian.org Holger Levsen and Lucas Nussbaum Automated

SLIDE 1

Introduction Lintian and Linda Rebuilding packages Piuparts Structuring QA Conclusion

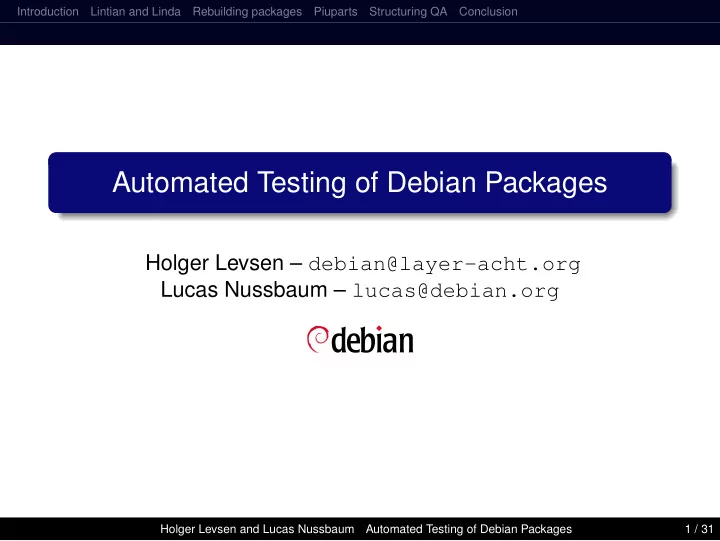

Automated Testing of Debian Packages

Holger Levsen – debian@layer-acht.org Lucas Nussbaum – lucas@debian.org

Holger Levsen and Lucas Nussbaum Automated Testing of Debian Packages 1 / 31

SLIDE 2

Introduction Lintian and Linda Rebuilding packages Piuparts Structuring QA Conclusion

Summary

1

Introduction

2

Lintian and Linda

3

Rebuilding packages

4

Piuparts

5

Structuring QA

6

Conclusion

Holger Levsen and Lucas Nussbaum Automated Testing of Debian Packages 2 / 31

SLIDE 3

Introduction Lintian and Linda Rebuilding packages Piuparts Structuring QA Conclusion Debian’s Quality Popcon data Automated Testing

Summary

1

Introduction Debian’s Quality Popcon data Automated Testing

2

Lintian and Linda

3

Rebuilding packages

4

Piuparts

5

Structuring QA

6

Conclusion

Holger Levsen and Lucas Nussbaum Automated Testing of Debian Packages 3 / 31

SLIDE 4

Introduction Lintian and Linda Rebuilding packages Piuparts Structuring QA Conclusion Debian’s Quality Popcon data Automated Testing

Debian’s Quality

Ask around : considered quite good compared to other distros A lot of packages, all supported in the same way : 10316 source packages in etch/main 18167 binary packages in etch/main

Holger Levsen and Lucas Nussbaum Automated Testing of Debian Packages 4 / 31

SLIDE 5

Introduction Lintian and Linda Rebuilding packages Piuparts Structuring QA Conclusion Debian’s Quality Popcon data Automated Testing

Packages installations according to popcon

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 5000 10000 15000 20000 25000 30000 percentage of packages installations

18167 packages in etch/main (max : 27700 installations) 1591 packages have less than 10 installations 8985 packages have less than 100 installations 15321 packages have less than 1000 installations ⇒ Most packages don’t have a lot of installations

Holger Levsen and Lucas Nussbaum Automated Testing of Debian Packages 5 / 31

SLIDE 6

Introduction Lintian and Linda Rebuilding packages Piuparts Structuring QA Conclusion Debian’s Quality Popcon data Automated Testing

Automated Testing

A way to : give the same level of attention to all packages in Debian not only rely on humans to find bugs avoid regressions keep maintainers busy :-)

Holger Levsen and Lucas Nussbaum Automated Testing of Debian Packages 6 / 31

SLIDE 7

Introduction Lintian and Linda Rebuilding packages Piuparts Structuring QA Conclusion Introduction Example output Future work

Summary

1

Introduction

2

Lintian and Linda Introduction Example output Future work

3

Rebuilding packages

4

Piuparts

5

Structuring QA

6

Conclusion

Holger Levsen and Lucas Nussbaum Automated Testing of Debian Packages 7 / 31

SLIDE 8

Introduction Lintian and Linda Rebuilding packages Piuparts Structuring QA Conclusion Introduction Example output Future work

Lintian and Linda

Static checks on Debian packages Lintian : (mostly in) Perl, Linda : Python Easy to run them yourself Generates lots of warnings and errors (some false-positives, too) See http://lintian.debian.org/ (not up to date)

Holger Levsen and Lucas Nussbaum Automated Testing of Debian Packages 8 / 31

SLIDE 9

Introduction Lintian and Linda Rebuilding packages Piuparts Structuring QA Conclusion Introduction Example output Future work

Example Lintian output

belpic (maintainer : Wouter Verhelst) :

W: belpic source: diff-contains-substvars debian/substvars E: libbeidlibopensc2: postinst-must-call-ldconfig usr/lib/libbeidpkcs11.so.2.1.0 E: libbeid2: postinst-must-call-ldconfig usr/lib/libbeidlibjni.so.2.7.2 W: beidgui: binary-without-manpage beidgui W: beidgui: non-dev-pkg-with-shlib-symlink usr/lib/libbeidgui.so.1.5.0 usr/lib/libbeidgui.so E: beidgui: no-shlibs-control-file usr/lib/libbeidgui.so.1.5.0 W: beidgui: postrm-should-call-ldconfig usr/lib/libbeidgui.so.1.5.0 W: beidgui: package-name-doesnt-match-sonames libbeidgui1 W: beid-tools: binary-without-manpage beidcrld W: beid-tools: binary-without-manpage beidpcscd W: beid-tools: init.d-script-missing-lsb-section /etc/init.d/beid

⇒ As I said, probably many false positives :-)

Holger Levsen and Lucas Nussbaum Automated Testing of Debian Packages 9 / 31

SLIDE 10

Introduction Lintian and Linda Rebuilding packages Piuparts Structuring QA Conclusion Introduction Example output Future work

Future work

Make maintainers use them ! (ideas ?) Fix bugs (or use overrides if false positives) And mostly infrastructure work : Work on lintian.debian.org Regular runs File bugs ?

Holger Levsen and Lucas Nussbaum Automated Testing of Debian Packages 10 / 31

SLIDE 11

Introduction Lintian and Linda Rebuilding packages Piuparts Structuring QA Conclusion Introduction Tools Resources usage Parallel rebuilds Future work

Summary

1

Introduction

2

Lintian and Linda

3

Rebuilding packages Introduction Tools Resources usage Parallel rebuilds Future work

4

Piuparts

5

Structuring QA

Holger Levsen and Lucas Nussbaum Automated Testing of Debian Packages 11 / 31

SLIDE 12

Introduction Lintian and Linda Rebuilding packages Piuparts Structuring QA Conclusion Introduction Tools Resources usage Parallel rebuilds Future work

Rebuilding packages

packages with "Arch : all" are only built on the developer’s machine packages with "Arch : any" are only built automatically before they reach unstable (and only on $ARCH != Uploader’s arch) After that, the build environment changes : newer/older compiler and libraries build-dependencies not available anymore (b-deps are not considered for testing propagation) Problems : Everyone should be able to build your package Stable releases must be self-contained (security upgrades !)

Holger Levsen and Lucas Nussbaum Automated Testing of Debian Packages 12 / 31

SLIDE 13

Introduction Lintian and Linda Rebuilding packages Piuparts Structuring QA Conclusion Introduction Tools Resources usage Parallel rebuilds Future work

Rebuilding packages : tools

pbuilder : builds a package inside a chroot very easy to set up you should use it ! use cowbuilder for faster builds (cowdancer package) sbuild (the Debian package) : relies on schroot harder to set up, but more powerful

Holger Levsen and Lucas Nussbaum Automated Testing of Debian Packages 13 / 31

SLIDE 14

Introduction Lintian and Linda Rebuilding packages Piuparts Structuring QA Conclusion Introduction Tools Resources usage Parallel rebuilds Future work

Rebuilding packages : resources usage

Rebuilding all packages in Debian Etch : about 10 days on a single computer Most packages are fast to build :

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 1 10 100 1000 10000 F(x) package build time (s), logarithmic scale Holger Levsen and Lucas Nussbaum Automated Testing of Debian Packages 14 / 31

SLIDE 15

Introduction Lintian and Linda Rebuilding packages Piuparts Structuring QA Conclusion Introduction Tools Resources usage Parallel rebuilds Future work

Rebuilding packages : resources usage (2)

But some packages take a long time : Source package Time

penoffice.org

7 h 14 min latex-cjk-chinese-arphic 6 h 18 min linux-2.6 5 h 43 min gcc-4.1 2 h 52 min gcj-4.1 2 h 44 min gnat-4.1 1 h 52 min gcc-3.4 1 h 50 min installation-guide 1 h 45 min axiom 1 h 44 m k3d 1 h 39 min (On Dual-Opteron 2 GHz, 2 GB RAM)

Holger Levsen and Lucas Nussbaum Automated Testing of Debian Packages 15 / 31

SLIDE 16

Introduction Lintian and Linda Rebuilding packages Piuparts Structuring QA Conclusion Introduction Tools Resources usage Parallel rebuilds Future work

Parallel Rebuilds

Easy to distribute over several nodes : Since October, several rebuilds on Grid’5000 (french experimental grid platform, with 2500 CPUs) ⇒ Full rebuild in about 7.5 hours, on about 40 nodes

. . .

node 40 node 39 node 37 node 38 node 1

penoffice.org

linux−2.6 ~ 7.5 hours

Holger Levsen and Lucas Nussbaum Automated Testing of Debian Packages 16 / 31

SLIDE 17

Introduction Lintian and Linda Rebuilding packages Piuparts Structuring QA Conclusion Introduction Tools Resources usage Parallel rebuilds Future work

Parallel Rebuilds

Using more nodes is useless Need to make a few packages build faster "make -j" : no common interface (#209008) Some packages fail to build when using several CPUs Solutions : Work on #209008 Work on those few packages Ignore those packages

Holger Levsen and Lucas Nussbaum Automated Testing of Debian Packages 17 / 31

SLIDE 18

Introduction Lintian and Linda Rebuilding packages Piuparts Structuring QA Conclusion Introduction Tools Resources usage Parallel rebuilds Future work

Future Work

Test build scripts (rebuild after change, clean rule, etc) Compare build results with what is in the archive First results are quite depressing Build in "strange" environments and compare results

Holger Levsen and Lucas Nussbaum Automated Testing of Debian Packages 18 / 31

SLIDE 19

Introduction Lintian and Linda Rebuilding packages Piuparts Structuring QA Conclusion Introduction False positives Future work

Summary

1

Introduction

2

Lintian and Linda

3

Rebuilding packages

4

Piuparts Introduction False positives Future work

5

Structuring QA

6

Conclusion

Holger Levsen and Lucas Nussbaum Automated Testing of Debian Packages 19 / 31

SLIDE 20

Introduction Lintian and Linda Rebuilding packages Piuparts Structuring QA Conclusion Introduction False positives Future work

Piuparts

Tests installation and removal of packages Process : cleans up a chroot (removes everything except apt) installs the package to test and its dependencies Removes everything, purge all dependencies Purges the package to test ⇒ test of the package maintainer scripts (preinst, postinst, prerm, postrm) under the most extreme conditions

Holger Levsen and Lucas Nussbaum Automated Testing of Debian Packages 20 / 31

SLIDE 21

Introduction Lintian and Linda Rebuilding packages Piuparts Structuring QA Conclusion Introduction False positives Future work

Piuparts (2)

Also tests other things : upgrades running processes after removal dangling symlinks files left after removal/purge, files from other packages modified

Holger Levsen and Lucas Nussbaum Automated Testing of Debian Packages 21 / 31

SLIDE 22

Introduction Lintian and Linda Rebuilding packages Piuparts Structuring QA Conclusion Introduction False positives Future work

Piuparts and false positives

Piuparts generates A LOT of false positives To be tested, a package must be able to install non-interactively debconf is nice (Noninteractive frontend) but doesn’t solve everything (e.g packages that need access a database) ⇒ Make all packages use debconf ⇒ After that, not much to do about false positives

Holger Levsen and Lucas Nussbaum Automated Testing of Debian Packages 22 / 31

SLIDE 23

Introduction Lintian and Linda Rebuilding packages Piuparts Structuring QA Conclusion Introduction False positives Future work

Piuparts and set theory

Problem : how can one easily get a list of real failures, without false positives ? ⇒ Set theory ! Example : find packages that fail to install because of a missing depend on debconf. Run piuparts over all packages, without debconf installed Fetch the list of failures For each package that failed during the first run, re-run piuparts with debconf installed Packages that succeeded = our list of failures

Holger Levsen and Lucas Nussbaum Automated Testing of Debian Packages 23 / 31

SLIDE 24

Introduction Lintian and Linda Rebuilding packages Piuparts Structuring QA Conclusion Introduction False positives Future work

Future work

Other piuparts tests (not just installation/removal failures) Improve piuparts (now maintained collaboratively !) Make it more flexible piatti.debian.org : dual Xeon in helsinki Used by liw to run piuparts over the archive Slower by Grid’5000 ;) Idea : Xen instances for interested DD to reproduce/investigate results More ideas ?

Holger Levsen and Lucas Nussbaum Automated Testing of Debian Packages 24 / 31

SLIDE 25

Introduction Lintian and Linda Rebuilding packages Piuparts Structuring QA Conclusion Problem Collaborative QA collab-qa project

Summary

1

Introduction

2

Lintian and Linda

3

Rebuilding packages

4

Piuparts

5

Structuring QA Problem Collaborative QA collab-qa project

6

Conclusion

Holger Levsen and Lucas Nussbaum Automated Testing of Debian Packages 25 / 31

SLIDE 26

Introduction Lintian and Linda Rebuilding packages Piuparts Structuring QA Conclusion Problem Collaborative QA collab-qa project

Structuring QA

Problems

QA mostly done by individuals ⇒ not a good solution on the long term : nobody knows what people are doing duplicated efforts things not tested, even in etch some resources could be shared, but are not

Holger Levsen and Lucas Nussbaum Automated Testing of Debian Packages 26 / 31

SLIDE 27

Introduction Lintian and Linda Rebuilding packages Piuparts Structuring QA Conclusion Problem Collaborative QA collab-qa project

Better, collaborative QA

use debian-qa@l.d.o for communication share information documentation on processes lists of false positives, bugs already filed, etc use usertags

Holger Levsen and Lucas Nussbaum Automated Testing of Debian Packages 27 / 31

SLIDE 28

Introduction Lintian and Linda Rebuilding packages Piuparts Structuring QA Conclusion Problem Collaborative QA collab-qa project

Example "good" process

Bob wants to test a new compiler version (rebuild all packages with the new version) Bob tells about his plans on debian-qa@l.d.o Joe proposes to run the tests on his large computing cluster After discussing the details, Joe runs the tests Bob analyzes the logs and files bugs

Holger Levsen and Lucas Nussbaum Automated Testing of Debian Packages 28 / 31

SLIDE 29

Introduction Lintian and Linda Rebuilding packages Piuparts Structuring QA Conclusion Problem Collaborative QA collab-qa project

"Collaborative QA" project @ alioth

collab-qa alioth project : share as much stuff as possible currently : scripts to run rebuilds and piuparts on a cluster scripts to analyze logfiles data : blacklists for rebuilds and piuparts list of piuparts false positives estimated build time for each package ⇒ Join us !

Holger Levsen and Lucas Nussbaum Automated Testing of Debian Packages 29 / 31

SLIDE 30

Introduction Lintian and Linda Rebuilding packages Piuparts Structuring QA Conclusion

Summary

1

Introduction

2

Lintian and Linda

3

Rebuilding packages

4

Piuparts

5

Structuring QA

6

Conclusion

Holger Levsen and Lucas Nussbaum Automated Testing of Debian Packages 30 / 31

SLIDE 31

Introduction Lintian and Linda Rebuilding packages Piuparts Structuring QA Conclusion

Conclusion

We have a nice set of tools could clearly be used a lot more Many tests to run and many bugs to fix with the current tools Main objective : Be better at finding and fixing bugs using the current tools Even if writing new tools is clearly sexier ;)

Holger Levsen and Lucas Nussbaum Automated Testing of Debian Packages 31 / 31
