SLIDE 1

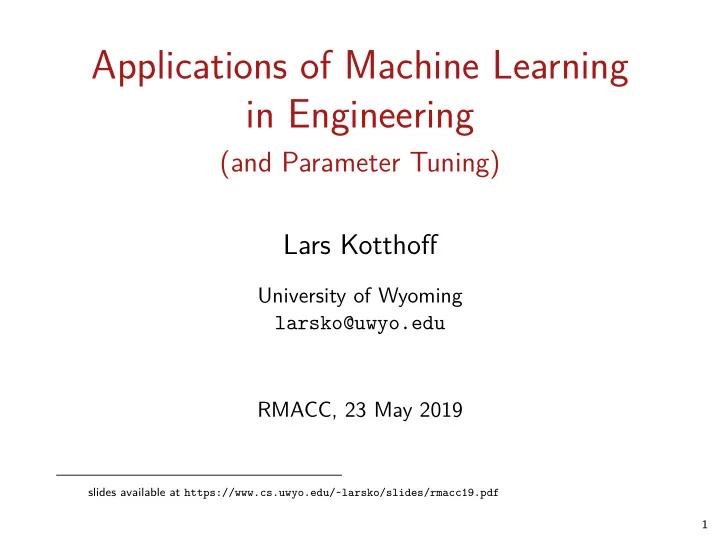

Applications of Machine Learning in Engineering

(and Parameter Tuning) Lars Kotthofg

University of Wyoming larsko@uwyo.edu RMACC, 23 May 2019

slides available at https://www.cs.uwyo.edu/~larsko/slides/rmacc19.pdf 1

SLIDE 2

Optimizing Graphene Oxide Reduction

▷ reduce graphene oxide to graphene through laser irradiation ▷ allows to create electrically conductive lines in insulating material ▷ laser parameters need to be tuned carefully to achieve good results

2

SLIDE 3

From Graphite/Coal to Carbon Electronics

Overview of the Process

3

SLIDE 4

Evaluation of Irradiated Material

4

SLIDE 5

ML-Optimized Laser Parameters

2

4 6 10 20 30 40 50

Iteration Ratio

5

SLIDE 6

ML-Optimized Laser Parameters

2

4 6 2 4 6 8

Iteration Ratio

Predictions work even with small training dataset (19 points)
AI Model achieved IG/ID ratio (>6) after 1st prediction

During Training After 1st prediction + Prediction

Actual

50 um 50 um 6

SLIDE 7

Explored Parameter Space

1

4 3 45 5 7 6 8 2 15 13 14 12 17 26 21 22 27 19 20 18 25 9 24 31 40 32 35 29 38 41 34 33 11 30 28 10 16 23 46 36 42 37 39 47 48 44 43 2 4 6

Parameter Space Ratio

7

SLIDE 8

Design of New Materials

▷ optimize parameters of pattern generator for energy absorption of material

8

SLIDE 9

Big Picture

▷ advance the state of the art through meta-algorithmic techniques ▷ rather than inventing new things, use existing things more intelligently – automatically ▷ invent new things through combinations of existing things

9

SLIDE 10

What to Tune – Parameters

▷ anything you can change that makes sense to change ▷ e.g. heuristic, power of a laser, kernel for a machine learning method ▷ not random seed, whether to enable debugging, etc. ▷ some will afgect performance, others will have no efgect at all

10

SLIDE 11

Automated Parameter Tuning

Frank Hutter and Marius Lindauer, “Algorithm Confjguration: A Hands on Tutorial”, AAAI 2016 11

SLIDE 12

General Approach

▷ evaluate algorithm as black-box function ▷ observe efgect of parameters without knowing the inner workings ▷ decide where to evaluate next ▷ balance diversifjcation/exploration and intensifjcation/exploitation ▷ repeat until satisfjed

12

SLIDE 13

When are we done?

▷ most approaches incomplete ▷ cannot prove optimality, not guaranteed to fjnd optimal solution (with fjnite time) ▷ performance highly dependent on confjguration space

How do we know when to stop?

13

SLIDE 14

Resource Budget

How much time/how many function evaluations? ▷ too much wasted resources ▷ too little suboptimal result ▷ use statistical tests ▷ evaluate on parts of the instance set ▷ for runtime: adaptive capping

14

SLIDE 15

Grid and Random Search

▷ evaluate certain points in parameter space

Bergstra, James, and Yoshua Bengio. “Random Search for Hyper-Parameter Optimization.” J. Mach. Learn.

Res. 13, no. 1 (February 2012): 281–305.

15

SLIDE 16

Local Search

▷ start with random confjguration ▷ change a single parameter (local search step) ▷ if better, keep the change, else revert ▷ repeat, stop when resources exhausted or desired solution quality achieved ▷ restart occasionally with new random confjgurations

16

SLIDE 17

Local Search Example

(Initialisation)

graphics by Holger Hoos 17

SLIDE 18

Local Search Example

(Initialisation)

graphics by Holger Hoos 18

SLIDE 19

Local Search Example

(Local Search)

graphics by Holger Hoos 19

SLIDE 20

Local Search Example

(Local Search)

graphics by Holger Hoos 20

SLIDE 21

Local Search Example

(Perturbation)

graphics by Holger Hoos 21

SLIDE 22

Local Search Example

(Local Search)

graphics by Holger Hoos 22

SLIDE 23

Local Search Example

(Local Search)

graphics by Holger Hoos 23

SLIDE 24

Local Search Example

(Local Search)

graphics by Holger Hoos 24

SLIDE 25

Local Search Example

?

Selection (using Acceptance Criterion)

graphics by Holger Hoos 25

SLIDE 26

Surrogate-Model-Based Search

▷ evaluate small number of initial (random) confjgurations ▷ build surrogate model of parameter-performance surface based

n this

▷ use model to predict where to evaluate next ▷ repeat, stop when resources exhausted or desired solution quality achieved ▷ allows targeted exploration of promising confjgurations

26

SLIDE 27

Surrogate-Model-Based Search Example

y

ei −1.0 −0.5 0.0 0.5 1.0 0.0 0.4 0.8 −0.02 0.00 0.02 0.04 0.06

x type

init

prop

type

y yhat ei

Iter = 1, Gap = 1.5281e−01

Bischl, Bernd, Jakob Richter, Jakob Bossek, Daniel Horn, Janek Thomas, and Michel Lang. “MlrMBO: A Modular Framework for Model-Based Optimization of Expensive Black-Box Functions,” March 9, 2017. http://arxiv.org/abs/1703.03373. 27

SLIDE 28

Surrogate-Model-Based Search Example

y

ei −1.0 −0.5 0.0 0.5 1.0 0.0 0.4 0.8 0.00 0.01 0.02 0.03

x type

init

prop seq

type

y yhat ei

Iter = 2, Gap = 1.5281e−01

Bischl, Bernd, Jakob Richter, Jakob Bossek, Daniel Horn, Janek Thomas, and Michel Lang. “MlrMBO: A Modular Framework for Model-Based Optimization of Expensive Black-Box Functions,” March 9, 2017. http://arxiv.org/abs/1703.03373. 28

SLIDE 29

Surrogate-Model-Based Search Example

y

ei −1.0 −0.5 0.0 0.5 1.0 0.0 0.4 0.8 0.000 0.005 0.010 0.015 0.020

x type

init

prop seq

type

y yhat ei

Iter = 3, Gap = 1.5281e−01

Bischl, Bernd, Jakob Richter, Jakob Bossek, Daniel Horn, Janek Thomas, and Michel Lang. “MlrMBO: A Modular Framework for Model-Based Optimization of Expensive Black-Box Functions,” March 9, 2017. http://arxiv.org/abs/1703.03373. 29

SLIDE 30

Surrogate-Model-Based Search Example

y

ei −1.0 −0.5 0.0 0.5 1.0 0.0 0.4 0.8 0.000 0.005 0.010

x type

init

prop seq

type

y yhat ei

Iter = 4, Gap = 1.3494e−02

Bischl, Bernd, Jakob Richter, Jakob Bossek, Daniel Horn, Janek Thomas, and Michel Lang. “MlrMBO: A Modular Framework for Model-Based Optimization of Expensive Black-Box Functions,” March 9, 2017. http://arxiv.org/abs/1703.03373. 30

SLIDE 31

Surrogate-Model-Based Search Example

y

ei −1.0 −0.5 0.0 0.5 1.0 0.0 0.4 0.8 0.000 0.005 0.010 0.015

x type

init

prop seq

type

y yhat ei

Iter = 5, Gap = 1.3494e−02

Bischl, Bernd, Jakob Richter, Jakob Bossek, Daniel Horn, Janek Thomas, and Michel Lang. “MlrMBO: A Modular Framework for Model-Based Optimization of Expensive Black-Box Functions,” March 9, 2017. http://arxiv.org/abs/1703.03373. 31

SLIDE 32

Surrogate-Model-Based Search Example

y

ei −1.0 −0.5 0.0 0.5 1.0 0.0 0.4 0.8 0.000 0.002 0.004 0.006

x type

init

prop seq

type

y yhat ei

Iter = 6, Gap = 2.1938e−06

Bischl, Bernd, Jakob Richter, Jakob Bossek, Daniel Horn, Janek Thomas, and Michel Lang. “MlrMBO: A Modular Framework for Model-Based Optimization of Expensive Black-Box Functions,” March 9, 2017. http://arxiv.org/abs/1703.03373. 32

SLIDE 33

Surrogate-Model-Based Search Example

y

ei −1.0 −0.5 0.0 0.5 1.0 0.0 0.4 0.8 0e+00 5e−04 1e−03

x type

init

prop seq

type

y yhat ei

Iter = 7, Gap = 2.1938e−06

Bischl, Bernd, Jakob Richter, Jakob Bossek, Daniel Horn, Janek Thomas, and Michel Lang. “MlrMBO: A Modular Framework for Model-Based Optimization of Expensive Black-Box Functions,” March 9, 2017. http://arxiv.org/abs/1703.03373. 33

SLIDE 34

Tools and Resources

iRace http://iridia.ulb.ac.be/irace/ TPOT https://github.com/EpistasisLab/tpot mlrMBO https://github.com/mlr-org/mlrMBO SMAC http://www.cs.ubc.ca/labs/beta/Projects/SMAC/

Spearmint https://github.com/HIPS/Spearmint TPE https://jaberg.github.io/hyperopt/

COSEAL group for COnfjguration and SElection of ALgorithms: https://www.coseal.net/ Further reading: Jones, Donald R., Matthias Schonlau, and William J. Welch. “Effjcient Global Optimization of Expensive Black-Box Functions.” J. of Global Optimization 13, no. 4 (December 1998): 455–92.

34

SLIDE 35

https://www.automl.org/book/

35

SLIDE 36

I’m hiring!

Several positions available.

36

SLIDE 37

Exercises

▷ (install python and/or scikit-learn) ▷ download https://www.cs.uwyo.edu/~larsko/mbo/mbo.py and run it ▷ try a difgerent data set ▷ try tuning difgerent/more parameters ▷ …

37

SLIDE 38

Two-Slide MBO

# https://www.cs.uwyo.edu/~larsko/mbo/mbo.py params = { 'C': np.logspace(-2, 10, 13), 'gamma': np.logspace(-9, 3, 13) } param_grid = [ { 'C': x, 'gamma': y } for x in params['C'] for y in params['gamma'] ] # [{'C': 0.01, 'gamma': 1e-09}, {'C': 0.01, 'gamma': 1e-08}...] initial_samples = 3 evals = 10 random.seed(1) def est_acc(pars): clf = svm.SVC(**pars) return np.median(cross_val_score(clf, iris.data, iris.target, cv = 10)) data = [] for pars in random.sample(param_grid, initial_samples): acc = est_acc(pars) data += [ list(pars.values()) + [ acc ] ] # [[1.0, 0.1, 1.0], # [1000000000.0, 1e-07, 1.0], # [0. 1, 1e-06,0.9333333333333333]]

38

SLIDE 39

Two-Slide MBO

regr = RandomForestRegressor(random_state = 0) for evals in range(0, evals): df = np.array(data) regr.fit(df[:,0:2], df[:,2]) preds = regr.predict([ list(pars.values()) for pars in param_grid ]) i = preds.argmax() acc = est_acc(param_grid[i]) data += [ list(param_grid[i].values()) + [ acc ] ] print("{}: best predicted {} for {}, actual {}" .format(evals, round(preds[i], 2), param_grid[i], round(acc, 2))) i = np.array(data)[:,2].argmax() print("Best accuracy ({}) for parameters {}".format(data[i][2], data[i][0:2]))

39

SLIDE 40

Two-Slide MBO (slide 3)

0: best predicted 0.99 for {'C': 1.0, 'gamma': 1e-09}, actual 0.93 1: best predicted 0.99 for {'C': 1000000000.0, 'gamma': 1e-09}, actual 0.93 2: best predicted 0.99 for {'C': 1000000000.0, 'gamma': 0.1}, actual 0.93 3: best predicted 0.97 for {'C': 1.0, 'gamma': 0.1}, actual 1.0 4: best predicted 0.99 for {'C': 1.0, 'gamma': 0.1}, actual 1.0 5: best predicted 1.0 for {'C': 1.0, 'gamma': 0.1}, actual 1.0 6: best predicted 1.0 for {'C': 1.0, 'gamma': 0.1}, actual 1.0 7: best predicted 1.0 for {'C': 1.0, 'gamma': 0.1}, actual 1.0 8: best predicted 1.0 for {'C': 0.01, 'gamma': 0.1}, actual 0.93 9: best predicted 1.0 for {'C': 1.0, 'gamma': 0.1}, actual 1.0 Best accuracy (1.0) for parameters [1.0, 0.1]

40
