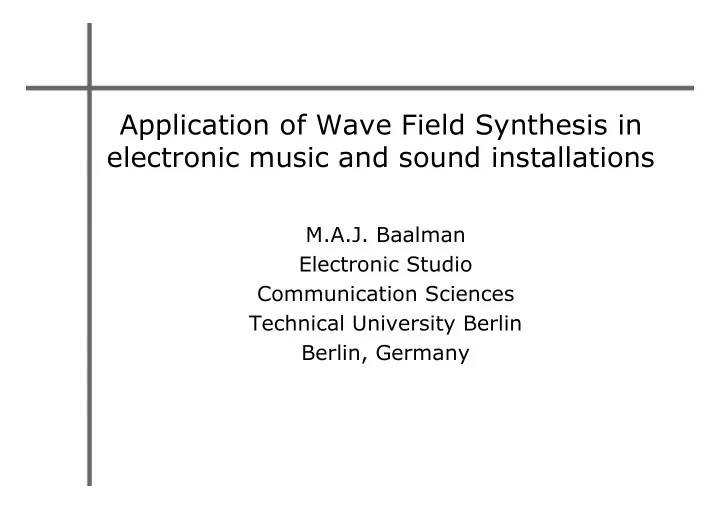

Application of wave field synthesis in electronic music and sound installations

Application of Wave Field Synthesis in electronic music and sound installations

M.A.J. Baalman Electronic Studio Communication Sciences Technical University Berlin Berlin, Germany

slide-2
SLIDE 2

Application of wave field synthesis in electronic music and sound installations

Overview

  • Introduction

* Spatialisation in electronic music * Theory of Wave Field Synthesis

  • System setup
  • Interface Software
  • Application in composition & sound installations
  • Outlook & discussion
slide-3
SLIDE 3

Application of wave field synthesis in electronic music and sound installations

Spatialisation in EM

  • Since early development of electronic music an

interest in spatial sound

  • Standards are quadraphonic or octaphonic

setups, with or without ambisonic techniques

  • A lot of examples of setups with a lot of

loudspeakers for one specific piece or as a way

  • f interpreting a work
  • Overview in Malham’s article in Computer Music

Journal, winter 1996

slide-4
SLIDE 4

Application of wave field synthesis in electronic music and sound installations

Spatialisation in EM

  • Since early development of electronic music an

interest in spatial sound

  • Standards are quadraphonic or octaphonic

setups, with or without ambisonic techniques

  • A lot of examples of setups with a lot of

loudspeakers for one specific piece or as a way

  • f interpreting a work
  • Overview in Malham’s article in Computer Music

Journal, winter 1996 Wave Field Synthesis could be an interesting technique in EM nal, winter 1996

slide-5
SLIDE 5

Application of wave field synthesis in electronic music and sound installations

Wave Field Synthesis

  • Principle of Huygens
  • Principle of Wave Field Synthesis
  • Possibilities with Wave Field Synthesis
  • Limitations
  • Practical applications
slide-6
SLIDE 6

Application of wave field synthesis in electronic music and sound installations

Principle of Huygens

slide-7
SLIDE 7

Application of wave field synthesis in electronic music and sound installations

Principle of Huygens

slide-8
SLIDE 8

Application of wave field synthesis in electronic music and sound installations

Principle of Wave Field Synthesis

slide-9
SLIDE 9

Application of wave field synthesis in electronic music and sound installations

Principle of Wave Field Synthesis

slide-10
SLIDE 10

Application of wave field synthesis in electronic music and sound installations

Possibilities

  • Synthesize sound sources on specific places,

even in front of the loudspeakers

  • Moving sound sources
  • Simulate acoustics of a room, by synthesizing

reflections

  • No sweet spot, but a large listening area!
slide-11
SLIDE 11

Application of wave field synthesis in electronic music and sound installations

Limitations

  • Frequency limitations

* Low frequencies limited by size of speakers

  • -> subwoofers!

* High frequencies limited through spatial aliasing: the

further apart the speakers, the lower the high frequency limit

  • Computation: for each speaker a signal needs to

be calculated

  • A lot of speakers are needed!
slide-12
SLIDE 12

Application of wave field synthesis in electronic music and sound installations

Limitations

  • Frequency limitations are inherent to the theory

and characteristics of loudspeakers

  • Computation seems to be a matter of time; cpu

power increases

  • Loudspeaker panels are becoming available, as

well as multi-exciter flat panel loudspeakers, partly with built-in computation units for wave field synthesis

slide-13
SLIDE 13

Application of wave field synthesis in electronic music and sound installations

Applications

  • Direct sound enhancement
  • Virtual reality
  • Cinema
  • Teleconferencing
  • Simulation
  • Research
  • Electronic music
slide-14
SLIDE 14

Application of wave field synthesis in electronic music and sound installations

System of the TU Berlin

  • 24 speakers (FOSTEX personal monitor 6301B)
  • PC with RME Hammerfall soundcard running Linux
  • Interface software:

* graphical interface * calculates the delays and attenuations * Controls the convolution engine (BruteFIR) that makes the

convolutions in real time and feeds the soundcard with the

  • utput sound

* Is controllable via OpenSoundControl

slide-15
SLIDE 15

Application of wave field synthesis in electronic music and sound installations

Interface software: WONDER

  • Created to provide an interface for composers

and sound artists of electronic music

  • Has to be usable without the user needing to

worry about the actual calculations

  • Has to be flexible with regard to the actual

setup of the system

slide-16
SLIDE 16

Application of wave field synthesis in electronic music and sound installations

Interfacesoftware: WONDER

3 parts:

  • Composition tool
  • Grid definition tool
  • Play engine
  • Control possible via OpenSoundControl
slide-17
SLIDE 17

Application of wave field synthesis in electronic music and sound installations

WONDER - composition

  • For each source:

* Type * Movement * Reflections, also variable rooms * Division in time sections * Possible to loop movements

  • Positions and paths can be entered graphically or typed
  • WONDER calculates points on the path and a score that

can be played.

slide-18
SLIDE 18

Application of wave field synthesis in electronic music and sound installations

WONDER - composition

slide-19
SLIDE 19

Application of wave field synthesis in electronic music and sound installations

WONDER - grid definition

  • Allows the user to set a grid of points that can be

used for live control of the system

  • Grid can consist of different ‘segments’, of

different shapes and spacing and characteristics (high frequency damping, room characteristics)

  • Input is graphical or typed
  • WONDER calculates the points and the

necessary filters

slide-20
SLIDE 20

Application of wave field synthesis in electronic music and sound installations

WONDER - grid definition

slide-21
SLIDE 21

Application of wave field synthesis in electronic music and sound installations

WONDER - grid definition

slide-22
SLIDE 22

Application of wave field synthesis in electronic music and sound installations

WONDER - play engine

  • The play engine consists of:

* Convolution engine BruteFIR, which is run as a

childe process

* Communication with BruteFIR via the “command line

interface” to control the movement of sources (switching between filters)

* Control over the movements by the user, either

graphically via WONDER or by sending OSC messages to WONDER

slide-23
SLIDE 23

Application of wave field synthesis in electronic music and sound installations

WONDER - play engine

slide-24
SLIDE 24

Application of wave field synthesis in electronic music and sound installations

WONDER - Open Sound Control

  • The OpenSoundControl server* of WONDER

allows external control over the program

* Over sources: “/WFS/source/” with messages for

position, type, etc.

* Over a score: “/WFS/score/” with messages for play,

record, pause, stop, save, time

* Over the engine: “/WFS/” with messages for init

(initialisation), start, stop

* OSC-server created by Daniel Plewe

slide-25
SLIDE 25

Application of wave field synthesis in electronic music and sound installations

Work with composers

  • Done in December 2002/January 2003 in

preparation for Club Transmediale Festival in February 2003 in Berlin

  • After a general introduction in December, one to

two days work with composer in studio for spatialisation

  • Sound material was prepared elsewhere by each

composer

slide-26
SLIDE 26

Application of wave field synthesis in electronic music and sound installations

Ping Pong Ballet, Marc Lingk

  • Sounds were created from ping pong ball sounds
  • so: movements based on ping pong ball game
slide-27
SLIDE 27

Application of wave field synthesis in electronic music and sound installations

Ping Pong Ballet, Marc Lingk

  • Sounds were created from ping pong ball sounds
  • so: movements based on ping pong ball game
slide-28
SLIDE 28

Application of wave field synthesis in electronic music and sound installations

Ping Pong Ballet, Marc Lingk

  • Sounds were created from ping pong ball sounds
  • so: movements based on ping pong ball game
slide-29
SLIDE 29

Application of wave field synthesis in electronic music and sound installations

Ping Pong Ballet, Marc Lingk

  • Sounds were created from ping pong ball sounds
  • so: movements based on ping pong ball game
  • all loop movements
  • composition moves from familiar ping pong game

to dense vivid sound scape

slide-30
SLIDE 30

Application of wave field synthesis in electronic music and sound installations

Restored to Life, Ilka Theurich

  • Use of various movements
  • Use of plane waves and point sources
  • Use of virtual rooms
slide-31
SLIDE 31

Application of wave field synthesis in electronic music and sound installations

Restored to Life, Ilka Theurich

slide-32
SLIDE 32

Application of wave field synthesis in electronic music and sound installations

Restored to Life, Ilka Theurich

slide-33
SLIDE 33

Application of wave field synthesis in electronic music and sound installations

Restored to Life, Ilka Theurich

slide-34
SLIDE 34

Application of wave field synthesis in electronic music and sound installations

Restored to Life, Ilka Theurich

slide-35
SLIDE 35

Application of wave field synthesis in electronic music and sound installations

Restored to Life, Ilka Theurich

slide-36
SLIDE 36

Application of wave field synthesis in electronic music and sound installations

Restored to Life, Ilka Theurich

slide-37
SLIDE 37

Application of wave field synthesis in electronic music and sound installations

Beurskrach, M. Baalman

  • Concept of an object of a fairly large size,

modeled as 4 points on the object

  • All points have the same source material, but

filtered differently

  • Cooperation with Julius Stahl, who made

visuals

slide-38
SLIDE 38

Application of wave field synthesis in electronic music and sound installations

Beurskrach, M. Baalman

slide-39
SLIDE 39

Application of wave field synthesis in electronic music and sound installations

Beurskrach, M. Baalman

slide-40
SLIDE 40

Application of wave field synthesis in electronic music and sound installations

Beurskrach, M. Baalman

slide-41
SLIDE 41

Application of wave field synthesis in electronic music and sound installations

Beurskrach, M. Baalman

slide-42
SLIDE 42

Application of wave field synthesis in electronic music and sound installations

Beurskrach, M. Baalman

slide-43
SLIDE 43

Application of wave field synthesis in electronic music and sound installations

Beurskrach, M. Baalman

slide-44
SLIDE 44

Application of wave field synthesis in electronic music and sound installations

Scratch

  • Responsive sound installation, created in

SuperCollider

  • Concept: a virtual sonic creature that

develops itself, depending on internal and external impulses

  • Movement of the sound is controlled with

OSC from SuperCollider

slide-45
SLIDE 45

Application of wave field synthesis in electronic music and sound installations

Future

  • Extending external control via OSC
  • More complex source definition

* size * frequency dependent directional characteristics

  • More work with composers
slide-46
SLIDE 46

Application of wave field synthesis in electronic music and sound installations

Where can I hear it?

  • Sound installation:

* 13:00-14:00 and 19:00-20:00 each day of the LAD * today: 19:00-21:00 * and on appointment

  • Workshop on Saturday, starting at 15:00

“Kleine Studio”, next to the Kubus, First Floor

slide-47
SLIDE 47

Application of wave field synthesis in electronic music and sound installations

More info

  • Web:

* http://www.nescivi.de

  • Email:

* marije@baalt.nl
