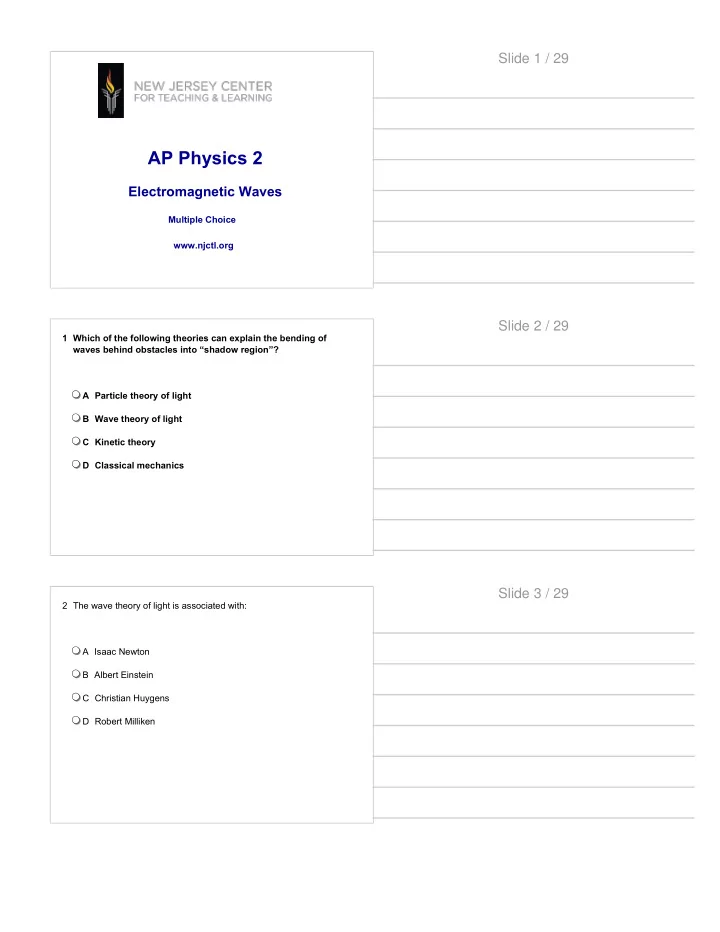

Slide 1 / 29 AP Physics 2 Electromagnetic Waves Multiple Choice www.njctl.org Slide 2 / 29 1 Which of the following theories can explain the bending of waves behind obstacles into shadow region? A Particle theory of light B Wave
SLIDE 2
SLIDE 3
6 A light beam traveling in air with a wavelength of 600 nm falls on a glass block. What is the speed of the light beam in glass? (c = 3·108 m/s, n = 1.5) A 3.0·108 m/s B 2.0·108 m/s C 1.5·108 m/s D 4.5·108 m/s
Slide 7 / 29
7 A light beam traveling in air with a wavelength of 600 nm falls on a glass block. What is the frequency of the light beam in glass? (c = 3·108 m/s, n = 1.5) A 5.0·1014 Hz B 2.5·1014 Hz C 3.0·1014 Hz D 6.0·1014 Hz
Slide 8 / 29
8 Which of the following correctly orders electromagnetic radiation for increasing frequency? A Radio Waves, Visible Light, IR Radiation, UV Radiation, X- Rays, γ –Rays B γ–Rays, Visible Light, IR Radiation, UV Radiation, X-Rays, Radio Waves C Radio Waves, UV Radiation, Visible Light, IR Radiation, X- Rays, γ –Rays D Radio Waves, IR Radiation, Visible Light, UV Radiation, X- Rays, γ –Rays
Slide 9 / 29
SLIDE 4
9 A light beam spreads when it travels through a narrow slit. Which
- f the following can explain this phenomenon?
A Polarization B Dispersion C Diffraction D Refraction
Slide 10 / 29
10 In Young’s double-slit experiment a series of bright and dark lines was observed. Which of the following principles is responsible for this phenomenon? A Polarization B Dispersion C Interference D Refraction
Slide 11 / 29
11 Which of the following electro-magnetic waves can be diffracted by a building? A Radio waves B Infrared waves C Visible light D γ-rays
Slide 12 / 29
SLIDE 5
12 A blue beam of light falls on two narrow slits producing an interference pattern on a screen. If instead blue light a yellow beam
- f light is used in the same experiment, how will the interference
pattern change? A Interference fringes move close to the central maximum B Interference fringes move away from the central maximum C No change in interference D Bright fringes are replaced with dark fringes
Slide 13 / 29
13 How does the interference pattern produced by a Young’s double- slit apparatus in air change when it is submerged in water? A Interference fringes move close to the central maximum B Interference fringes move away from the central maximum C No change in interference D Bright fringes are replaced with dark fringes
Slide 14 / 29
14 Two coherent light waves intersect at a screen and constructively
- interfere. The extra distance traveled by one of the waves could
be: A λ/2 B λ/3 C 3λ/2 D 3λ
Slide 15 / 29
SLIDE 6
15 When the distance between slits in a Young’s double-slit apparatus is increased, what happens to the interference pattern? A The distance between the maxima increases B The distance between the maxima decreases C The distance between the maxima stays the same D The pattern is replaced by one bright line from each slit.
Slide 16 / 29
16 When the slit spacing in a double-slit experiment is halved, the separation between the two adjacent maxima… A is doubled B is halved C is quadrupled D is unchanged
Slide 17 / 29
17 When a laser beam passes through a circular aperture, a set of bright and dark concentric circles is observed. When the aperture is increased, what happens to the interference pattern? A The separation between the circles increases B The separation between the circles decreases C The pattern is unchanged D The separation between the circles increases and then decreases
Slide 18 / 29
SLIDE 7
18 Light incident on a thin film partially reflects from the film and partially transmits through the film. What is the phase difference between the reflected and transmitted waves? A 45ο B 60ο C 90ο D 180ο
Slide 19 / 29
19 A light beam traveling in water enters air. What is the phase difference between the incident and transmitted waves? A 0ο B 180ο C 120ο D 90ο
Slide 20 / 29
20 A beam of coherent light with a wavelength of 600 nm is incident
- n a diffraction grating with a slit separation of 1.8 µm. What is the
maximum number of spectral orders can be observed on a screen? A 1 B 2 C 3 D 11
Slide 21 / 29
SLIDE 8
21 Sunlight strikes a glass prism. Which of the following light colors will be refracted the least? A Blue B Violet C Red D Yellow
Slide 22 / 29
22 Unpolarized light passes through two Polaroid filters which are
- riented so that their polarization axes are rotated 60° with respect
to one another̊. If the intensity of the incident light is I0, what is the intensity of the transmitted light? A Io B Io/8 C Io/4 D 3Io/8
Slide 23 / 29
23 When white light enters a glass prism, light is dispersed, creating a
- rainbow. Why do some colors of light refract more than other
colors to create this pattern? A The entry angle is different for different colors of light, so the different colors exit at different angles too B The surface of the prism that the light exits from is curved, so the angles the light makes with the normal line are all different C The index of refraction for glass changes depending on the wavelength of the light D This phenomenon does not occur
Slide 24 / 29
SLIDE 9
24 A beam of light is going from air through a window at a 15 degree angle with respect to the normal line. If the angle the refracted beam makes with the normal line is is 4.5 degrees less than the incident angle, what is the index of refraction of the glass? A 0.13 B 0.26 C 1.33 D 1.42
Slide 25 / 29
25 Which of the following is true when light enters a denser medium? (Select 2 answers) A f increases B λ increases C f stays the same D v decreases
Slide 26 / 29
26 Which of the following phenomena support the wave theory of light? (Select 2 answers) A Reflection B Interference C Diffraction D Projection
Slide 27 / 29
