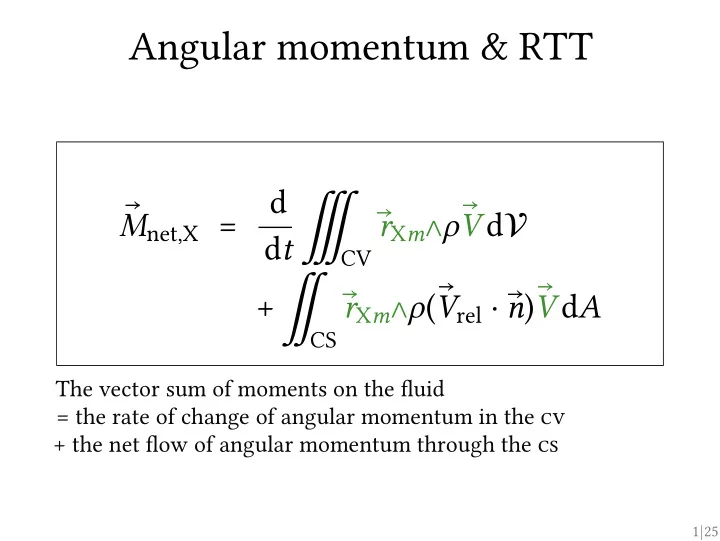

Angular momentum & RTT

⃗ Mnet,X = d dt ∭CV ⃗ rXm∧휌⃗ V d + ∬CS ⃗ rXm∧휌(⃗ Vrel ⋅ ⃗ n)⃗ V dA

The vector sum of moments on the fluid = the rate of change of angular momentum in the cv + the net flow of angular momentum through the cs

1|25

slide-2
SLIDE 2

Figure CC-0 Olivier Cleynen 2|25

slide-3
SLIDE 3

Figure CC-0 Olivier Cleynen 3|25

slide-4
SLIDE 4

If ⃗ rXm ∧ 휌(⃗ Vrel ⋅ ⃗ n)⃗ V is uniform across each inlet/outlet: ⃗ Mnet = d dt ∭CV ⃗ rXm ∧ 휌⃗ V d + ∑

  • ut

{ ⃗ rXm ∧ | ̇ m|⃗ V } − ∑

in

{ ⃗ rXm ∧ | ̇ m|⃗ V }

4|25

slide-5
SLIDE 5

Photo CC-by-sa by Commons User:Timhall 5|25

slide-6
SLIDE 6

Photo CC-by by JJ Harrison 6|25

slide-7
SLIDE 7

Drawing CC-by-sa U:Tosaka 7|25

slide-8
SLIDE 8

Photo by Andy Wolfe, US Army (public domain) 8|25

slide-9
SLIDE 9

Figure CC-by by Commons User:Tosaka 9|25

slide-10
SLIDE 10

Photo by Alex R. Lloyd, U.S. Air Force (public domain) 10|25

slide-11
SLIDE 11

∼ A worked-out example for the angular momentum equation ∼

11|25

slide-12
SLIDE 12

Falcon Heavy take-off on 2019-04-10

Photo by nasa (public domain) 12|25

slide-13
SLIDE 13

Falcon Heavy take-off on 2019-04-10

Photo CC-0 by SpaceX 13|25

slide-14
SLIDE 14

crs-8 landing on 2016-04-09

Photo CC-0 by SpaceX 14|25

slide-15
SLIDE 15

crs-8 landing on 2016-04-09

Photo CC-0 by SpaceX 15|25

slide-16
SLIDE 16

Figure CC-0 Olivier Cleynen 16|25

slide-17
SLIDE 17

Figure CC-0 Olivier Cleynen 17|25

slide-18
SLIDE 18

Figure CC-0 Olivier Cleynen 18|25

slide-19
SLIDE 19

Remove unsteady terms, split inlet/outlet ⃗ Mnet,X = d dt ∭CV ⃗ rXm ∧ 휌⃗ V d + ∬CS ⃗ rXm ∧ 휌(⃗ Vrel ⋅ ⃗ n)⃗ V dA = + ∬in ⃗ rXm ∧ 휌(⃗ Vrel ⋅ ⃗ n)⃗ V dA + ∬out ⃗ rXm ∧ 휌(⃗ Vrel ⋅ ⃗ n)⃗ V dA = + ∬in ⃗ rXm ∧ 휌V⟂ in⃗ V dA + ∬out ⃗ rXm ∧ 휌V⟂ out⃗ V dA

19|25

slide-20
SLIDE 20

Hoop #1: sign of V⟂ ⃗ Mnet,X = + ∬in ⃗ rXm ∧ 휌V⟂ in⃗ V dA + ∬out ⃗ rXm ∧ 휌V⟂ out⃗ V dA = − ∬in ⃗ rXm ∧ 휌|V⟂ in|⃗ V dA + ∬out ⃗ rXm ∧ 휌|V⟂ out|⃗ V dA

20|25

slide-21
SLIDE 21

Uniform velocity at inlets & outlets ⃗ Mnet,X = − ∬in ⃗ rXm ∧ 휌|V⟂ in|⃗ V dA + ∬out ⃗ rXm ∧ 휌|V⟂ out|⃗ V dA = − ⃗ rX-inlet ∧ 휌|V⟂ in|⃗ Vin Ain + ⃗ rX-outlet ∧ 휌|V⟂ out|⃗ Vout Aout = − 휌|V⟂ in| Ain ⃗ rX-inlet ∧ ⃗ Vin + 휌|V⟂ out| Aout ⃗ rX-outlet ∧ ⃗ Vout = − ̇ min ⃗ rX-inlet ∧ ⃗ Vin + ̇ mout ⃗ rX-outlet ∧ ⃗ Vout

21|25

slide-22
SLIDE 22

Vector cross-product: don’t panic ⃗ Mnet,X = − ̇ min ⃗ rX-inlet ∧ ⃗ Vin + ̇ mout ⃗ rX-outlet ∧ ⃗ Vout = − ̇ min ⃗ rX-inlet ∧ ⃗ Vin⟂r + ̇ mout ⃗ rX-outlet ∧ ⃗ Vout⟂r

22|25

slide-23
SLIDE 23

All right-hand-side vectors in same plane: we drop vectors Hoop #2: sign of V⟂r ⃗ Mnet,X = − ̇ min ⃗ rX-inlet ∧ ⃗ Vin⟂r + ̇ mout ⃗ rX-outlet ∧ ⃗ Vout⟂r Mnet,X = − ̇ min rX-inlet × (Vin⟂r) + ̇ mout rX-outlet × (Vout⟂r)

(V⟂r positive clockwise, negative anticlockwise)

Mnet,X = 0 + ̇ mout rX-outlet × (+ |Vout⟂r|)

(length in z-direction)

23|25

slide-24
SLIDE 24

Numbers! Mnet,X = 0 + ̇ mout rX-outlet × (+ |Vout⟂r|) = 0 + 2,5 × 40 × (+ |155 cos 20|) = +14,7 kN m ⃗ Mnet,X = ⎛ ⎜ ⎜ ⎝ +14,7 ⋅ 103 ⎞ ⎟ ⎟ ⎠ Moment exerted on fluid leaving the rocket (moment on rocket by fluid is opposite)

24|25

slide-25
SLIDE 25

Angular momentum & RTT

⃗ Mnet,X = d dt ∭CV ⃗ rXm∧휌⃗ V d + ∬CS ⃗ rXm∧휌(⃗ Vrel ⋅ ⃗ n)⃗ V dA

The vector sum of moments on the fluid = the rate of change of angular momentum in the cv + the net flow of angular momentum through the cs
