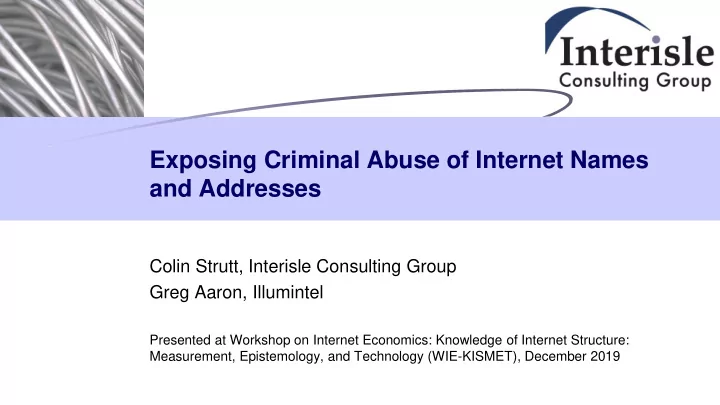

Exposing Criminal Abuse of Internet Names and Addresses

Colin Strutt, Interisle Consulting Group Greg Aaron, Illumintel

Presented at Workshop on Internet Economics: Knowledge of Internet Structure: Measurement, Epistemology, and Technology (WIE-KISMET), December 2019

Measuring and Documenting Domain Name Abuse

◼ Spam, malware, phishing, etc., degrade the online environment

⧫ Erode user confidence ⧫ Inflict serious harm on individuals and organizations across the world

◼ Harms:

⧫ Financial ⧫ Election interference ⧫ Cyber terrorism ⧫ Physical harms, as criminals target critical infrastructures (e.g., healthcare systems)

◼ Countering them tops “most important Internet issues” list for most

2

ECAINA Vision

◼ A measurable and quantifiably safer Internet ◼ An Internet in which organizations, governments, and individuals have data they can use to

⧫ Deploy security measures ⧫ Demonstrate empirically the effectiveness of security and administrative controls ⧫ Make informed policy and regulatory decisions ⧫ Conduct research

3

ECAINA Mission

To collect and publish information that identifies, quantifies, and categorizes Internet identifier abuse and the contexts in which it occurs

4

ECAINA Mission (the detailed version)

◼ We seek the structural, systemic enablers of Internet abuse ◼ Numerous organizations already compile reputation data or “threat intelligence”

⧫ Can be used tactically to stop crimes in progress, notify victims, pursue legal recourse, and prevent future abuse — in individual instances

◼ We will collect, process, and warehouse reputation information that identifies, quantifies, and categorizes activities that harm Internet users

⧫ Can be used strategically to identify and fight cybercriminal activity Internet-wide

◼ Information comprising census & reputation statistics for

⧫ Domain names ⧫ IP addresses ⧫ Autonomous Systems (AS) ⧫ Associated organizations (e.g., registries, registrars, and hosting, cloud, or ISP operators)

5

ECAINA Project

◼ ECAINA will provide

⧫ Scientifically reliable data for researchers to:

⚫ Observe and report concentrations of criminal activity ⚫ Measure, quantify, and rank domain name service providers and operators ⚫ Measure, quantify, and rank addressing service providers and operators ⚫ Observe criminal flocking and migration behavior over time ⚫ Discover and codify indicators that allow us to discover additional abuse identifiers ⚫ Report the above to inform legislators and policy makers

⧫ Researchers with means to:

⚫ Study harmful names and addresses

6

ECAINA Proof of Concept

◼ Feasibility study begun 3 September 2019

⧫ Gathering daily blocklist data for 23 TLDs ⧫ Identifying the associated registrar from available domain name registration data

◼ Analysis of blocklist and Whois data for each TLD on each day:

1. # domain names on blocklist; “sponsoring” registrar 2. # domain names added to blocklist each day; “sponsoring” registrar 3. # domain names removed from the blocklist each day

◼ Demonstrating the value and viability of ECAINA

⧫ Observed relationships between turnover, bulk registration, and blocklisting “spikes” and well-recognized patterns of criminal behavior

7

Number of Names on Each TLD’s Blocklist

8

2,000 4,000 6,000 8,000 10,000 12,000 14,000 16,000 18,000 3-Sep 5-Sep 7-Sep 9-Sep 11-Sep 13-Sep 15-Sep 17-Sep 19-Sep 21-Sep 23-Sep 25-Sep 27-Sep 29-Sep 1-Oct 3-Oct 5-Oct 7-Oct 9-Oct 11-Oct 13-Oct 15-Oct 17-Oct 19-Oct 21-Oct 23-Oct 25-Oct 27-Oct 29-Oct 31-Oct 2-Nov 4-Nov 6-Nov 8-Nov 10-Nov 12-Nov 14-Nov 16-Nov 18-Nov 20-Nov 22-Nov 24-Nov 26-Nov 28-Nov 30-Nov 2-Dec 4-Dec 6-Dec 8-Dec 10-Dec Sep Oct Nov Dec agency biz cloud co.kr com fit gdn icu info life live monster net

• rg

pet ru site tokyo top us work world xyz

2,000 4,000 6,000 8,000 10,000 12,000 3-Sep 5-Sep 7-Sep 9-Sep 11-Sep 13-Sep 15-Sep 17-Sep 19-Sep 21-Sep 23-Sep 25-Sep 27-Sep 29-Sep 1-Oct 3-Oct 5-Oct 7-Oct 9-Oct 11-Oct 13-Oct 15-Oct 17-Oct 19-Oct 21-Oct 23-Oct 25-Oct 27-Oct 29-Oct 31-Oct 2-Nov 4-Nov 6-Nov 8-Nov 10-Nov 12-Nov 14-Nov 16-Nov 18-Nov 20-Nov 22-Nov 24-Nov 26-Nov 28-Nov 30-Nov 2-Dec 4-Dec 6-Dec 8-Dec 10-Dec Sep Oct Nov Dec agency biz cloud co.kr com fit gdn icu info life live monster net

• rg

pet ru site tokyo top us work world xyz

Number of Names Added to Each TLD’s Blocklist

.us, 14 Oct 10,516 names

9

Registrars with High Proportion of Blocklisted Domains

Top Registrar for all blocked domains in TLD TLD Date Blocked Domains Top Registrar # domains % domains Added biz 9/4/2019 4,083 GMO Internet, Inc. d/b/a Onamae.com 3,381 82.8% 132 biz 9/5/2019 4,269 GMO Internet, Inc. d/b/a Onamae.com 3,487 81.7% 245 biz 9/6/2019 3,593 GMO Internet, Inc. d/b/a Onamae.com 2,767 77.0% 163 biz 9/10/2019 3,409 GMO Internet, Inc. d/b/a Onamae.com 2,207 64.7% 244 biz 9/11/2019 3,416 GMO Internet, Inc. d/b/a Onamae.com 2,000 58.5% 484 biz 9/13/2019 3,444 GMO Internet, Inc. d/b/a Onamae.com 1,880 54.6% 76 biz 9/15/2019 4,059 GMO Internet, Inc. d/b/a Onamae.com 1,809 44.6% 131 biz 9/18/2019 4,783 GMO Internet, Inc. d/b/a Onamae.com 1,963 41.0% 629 biz 9/19/2019 4,884 GMO Internet, Inc. d/b/a Onamae.com 2,050 42.0% 317 biz 9/20/2019 5,648 GMO Internet, Inc. d/b/a Onamae.com 2,791 49.4% 911 biz 9/22/2019 5,682 GMO Internet, Inc. d/b/a Onamae.com 2,869 50.5% 164 biz 9/23/2019 5,795 GMO Internet, Inc. d/b/a Onamae.com 2,948 50.9% 253 biz 9/24/2019 6,495 GMO Internet, Inc. d/b/a Onamae.com 3,612 55.6% 966 10

14 October – 10,516 Names Added to .us Blocklist

01fl9z 01py42 02gtn1 02joer 0317gm 034wo8 047pip 048bfu 049eql 04bqda 04dtr9 04otrs 058dax 05cfis 05h3tx 05kbpy 05ourk 05vbdo 05vmdi 06mwpx 07ebdo 07ktun 081uq5 082asy 08phqx 09feqg 09nb2a 09w8yh 09zzc4 0aaior 0aec3m 0afxwz 0ahncl 0amepc 0ammbh 0bgisc 0bhqex 0bkpju 0brnlo 0c2wmp 0cb1o3 0cbik6 0cenf4 0chmtp 0chyql 0ck65z 0cmddq 0cornp 0cyxbl 0d3q2g 0d4ayv 0d6gml 0dm5hn 0duz8q 0dzwfo 0e2lrg 0eganq 0enwfg 0es5oz 0ess1k 0faari 0foksf 0gd9bf 0gia1m 0gim9b 0gjswb 0gjvxp 0gklqr 0gnnt9 0gtkue 0guvdk 0h4blq 0h4ofm 0hfbkg 0hiep1 0hl5vh 0hlc3x 0hmdi2 0hmdiu 0iilt4 0j5mer 0jef9e 0jh2vh 0jhtex 0jjzqc 0joebq 0juxgq 0jvtes 0kjboo 0kngxi 0kwngu 0kxtzj 0lcosd 0lezti 0lhlgs 0lnajf 0lqpph 0lrgre 0lvdaw 0mbvys 0mi31c 0mm2de 0nbd8d 0nfegu 0ogm1f 0olerp 0on1yf 0oqq1x 0oxcwz 0oyjgo 0p6zxx 0pun6d 0q5ger 0q6frx 0q9ity 0qaf4b 0qfuof 0qrqeu 0qtl67 0qyrcj 0r6tbq 0rmgbe 0rpimy 0rpmyl 0rv1f8 0rxnru 0sbtxd 0senfy 0sgonf 0slxkr 0sogh3 0sq6ie 0sxqqu 0szzsa 0t8acb 0t9pfs 0tfks6 0tgque 0tjx8h 0u5k7v 0unbec 0uradt 0urq3q 0uta83 0uzprk 0v5dfu 0vqc2r 0vxhat 0vxnkw 0w6jyz 0w7knj 0wu4kl 0wz5tr 0x1qiw 0x63s4 0x6a7o 0xaaub 0xeil1 0xo5yn 0xrpvu 0xx3hk 0y8n4q 0ycepx 0yeapq 0yi3nm 0yiobn 0yxwkl 0zcues 0zelby 0ziu9u 0zmkya 0zreem 0zvms9 0zwgx9 10g8ki 12dggb 13mp4u 14fjnq 14fkid 14quhf 14zvhy 15bj8p 15soim 15topm 16bhoj 16jsrg 16oldc 16onzh 17hed6 17mkzd 17usze 18kvrq 18mmn2 19betq 19rlft 19tutk 19vpjn 19wiqd 1a7wmt 1aaymn 1akyt8 1asirm 1bcg2o 1bg94j 1blmny 1bslan 1bukmx 1bw9f8 1cahhd 1cb4ko 1cbxpw 1ciuwl 1cjqrg 1ckggh 1cnkef 1coswo 1coznb 1devil 1dey2n 1dgr4p 1dioyr 1dph6j 1dv5vq 1e9jbj 1eabcv 1eqjju 1eu4lp 1f0hln 1f4o67 1f5c3b 1fbdhn 1fo7tv 1fottc 1fri3d 1fryuk 1fvysa 1fy4bd 1getts 1ghxzy 1gyexj 1h6icu 1hbglt 1hfluh 1hhqna 1hjat2 1hpbxt 1i7ryf 1iaqnp 1igeop 1igqmr 1ipdax 1j2v0p 1jgsyq 1jikfz 1jm4cp 1jyawi 1k2kvp 1kbpgd 1kdu98 1kvvet 1kyfgu 1lae98 1lkesp 1lna7l 1lpm8e 1lupth 1m08dx 1m8vkd 1m9bo8 1mg3ha 1micki 1mqdsx 1mupiw 1mvofp 1n2xo5 1nfexj 1ngw50 1nr5sy 1o4m2i 1ojyrx 1omb8j 1ozlxj 1ozmz6 1pridj 1pseyq 1pxrsn 1q3ptz 1q3thg 1qllzn 1qra03 1raqpw 1rb2gu 1rbtu4 1ribqz 1rygkd 1s7kn0 1slbol 1sw9ar 1tfvbb 1tihrp 1tkyev 1tn29j 1tnhkw 1tpblj 1txwra 1tycqx 1ueqgd 1ukude 1uo8iy 1urwba 1usqrj 1uvxmd 1uzwhl 1vgxt9 1vwkoc 1w0ied 1wfsks 1whdgb 1wpkre 1wr5rg 1wsvrp 1wzlxn 1xgow5 1xjjes 1y8mr7 1yanr7 1yhunx 1yjuga 1yqtjl 1z9cxe 1zcbhj 1zxyve 20zbln 21adq0 21dwzi 21ghy7 21gj9z 21ndte 21oyjn 21s8os 23mdip 23yd0z 24aro5 24cpne 25fhdd 25ikb6 25lzj3 260uwp 26vlcz 26x5na 27brhe 29jvhi 2adoqi 2akoul 2anwem 2arqez 2azznj 2b8n3q 2befys 2bggcd 2bir8b 2blqhm 2blukk 2bpivj 2bqo0x 2bsidd 2bultj 2bxszf 2canrt 2cmwk9 2dbh71 2dm1hd 2dqfjn 2dwyn7 2dzvpw 2e1zvh 2ecpom 2ejalk 2epwfb 2ercji 2etrfa 2etvis 2eymrl 2f0wxk 2fersd 2fnrye 2fsvyg 2g4eus 2ga3oe 2gdehd 2gi6jq 2glrum 2guqot 2gwvif 2ihrhe 2irkap 2izmeu 2jdj9v 2jgzqt 2jkozr 2jqv3h 2jsukg 2jwtbh 2kkzhj 2knpu8 2l7dky 2lgawo 2lgayw 2lh1gv 2limoc 2m9zho 2mcer1 2mfda6 2mktqo 2mqbvz 2mwcld 2mxo1l 2mzaxq 2nhlrn 2o0lov 2o1mfa 2o9fkd 2oaobn 2ocuye 2odsd0 2ofeyj 2omalh 2osplf 2pizlu 2pntiq 2pvxdo 2px0et 2pxnr0 2pxogx 2qjalh 2qkvtc 2qpthe 2r8ttl 2rcmci 2rfbhp 2rjxvu 2rknin 2rkwug 2rspug 2rtm13 2rxhfn 2s1elx 2sdryw 2si9ts 2sndla 2somkm 2sprjd 2strin 2t7pvz 2tbspk 2tefgz 2tj5vf 2tjnam 2tnify 2tuev3 2tzfqn 2tzmd7 2tzuhm 2ubxm6 2ud43l 2ufozp 2up8cg 2uuvfz 2uvn1g 2uxdh3 2uz7dm 2vdwcg 2vfcjy 2vrno7 2wpdwh 2wrvwi 2x4ct9 2x8jlc 2xj59t 2xouvk 2xv1pi 2xwqmf 2ylexc 2ysyu5 2ytahr 2yzkip 2z37mp 2zamxh 2zfivy 2zil5a 2zjp9s 2zpqh4 2zsbs5 30dtrs 30kil9 30pm2n 31oizc 326mbg 329rxj 32znio 34hagr 34opqr 34rhps 34sgyb 34v6fo 358hx2 35j01w 35jly4 35qcmb 36hvuq 36mgrp 36naqh 36zdwc 37ieeb 37ksrr 37upab 384vwt 38ktvt 38qe1m 38rper 3aa8rp 3afsfu 3ao2zr 3atdol 3awnhp zwscho zwuhqg zwuqvh zwxoy6 zx2hwj zxd2gj zxe1ds zxhixb zxhpwa zxjaib zxmion zxnmer zxpnva zxppcl zxrgfh zxtoh5 zxvamd zxy3kl zy4nw0 zy5wco zy61nk zyabti zyapks zyfota zyogai zytotn zyvlss zyw7k5 zz7yld zzf38l zzgktf zzlbeu zzojwa zzr3fs zzryek

···

11

0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100% 3-Sep 5-Sep 7-Sep 9-Sep 11-Sep 13-Sep 15-Sep 17-Sep 19-Sep 21-Sep 23-Sep 25-Sep 27-Sep 29-Sep 1-Oct 3-Oct 5-Oct 7-Oct 9-Oct 11-Oct 13-Oct 15-Oct 17-Oct 19-Oct 21-Oct 23-Oct 25-Oct 27-Oct 29-Oct 31-Oct 2-Nov 4-Nov 6-Nov 8-Nov 10-Nov 12-Nov 14-Nov 16-Nov 18-Nov 20-Nov 22-Nov 24-Nov 26-Nov 28-Nov 30-Nov 2-Dec 4-Dec 6-Dec 8-Dec 10-Dec Sep Oct Nov Dec agency biz cloud co.kr com fit gdn icu info life live monster net

• rg

pet ru site tokyo top us work world xyz

Percent of Each TLD’s Blocklist Added

.monster, 14 Sep 82% 89 names .tokyo, 30 Oct 82% 307 names .pet, 1 Nov 100%, 2 names

12

.icu, 10 Dec 51%, 1,195 names

10 December – 1,195 Names Added to .icu Blocklist – ERANET names

aaykz aazoj adlbq afexe ajqhg allcq arwza atdbf athia atpzw attsl atudd atyze avqlw avqxr avrwr awpwu awsib aybx ayen ayma azbbt azje azrhq azyk balz bamt barmy basb bbnz bbqo bckz bcnig bcpxm bcpyl bdqot bdww beei berpm besm bfaei bfbve bfmj bfwtw bfzb bfzh bgfz bgjl bgury bhju bhsau bhuah biehw bihne bikqj bipbs bjaf bjufp bkas bkdh bkdoe blaiv bluuk blwg bmgk bmjdw bmjxj bodoy bolyh bqkub bqxya brfc brgmn briak brtx bscu bsfly bslev bslml bsnk bssr bsth bthp bung bupvi buscb bvdb bvlhv bvwfv byaat bybe bykur bzffm bzjgx bzkqy bzwcl cbas cbcuk cbynt cccpi cclfz cddwb cdkjw cdzbj ceqn cevg cfhwo cfoz cgdxe cguyl chavm chfzg chpt chsb chuwp civzq cixe cjcdd ckng ckwa clapi clbmq cmeqg cnizl cnqxg cnvf cnzgr cokri cpml cqrhk cqus crajj cruud csawg csfqm ctbxh ctmob ctnay curn cvfq cvsn cwcs cwpg cwput cwtz cxbci cxnfq cxvwz cyogl cypz czuwx czyyl daozs daxr dcaqz dcchx dcyw ddmfp ddneb deam deiat deqkq dewkc dffju dgfgq dgln dguys dhcac dixiy diyss djex djsj dkijr dkqut dksz dkxql dljsv dluih dlyc dmgk dmgu dnhdq dnok dnon dnqu dnsr dnxyx domc dosia doudw dpsmu dpue dpuf dpvpk dqjyt dsbim dsbm dshdl dstua dsxf dtadu dthro dtlzh dtnwc dtqrf dtyf duvz dvogs dvot dvvxu dxggq dzsk eacgz eahl ebrou ebsnf ebvha ebzzg echnh ecnai ecspf edfmk edweg eehz eeifo eeri efxo egbwq ehfvg ehga ehkda ehtt eifos ejftk ejsz ekcel ekqp ekwbl ekxb elqgi eltz emiq emlr emtt enzl epam epdt eqkx eqvm eraz erbrs eriq erzo esdv esrae estbp etau etdhj etuwm euwtd euxaf euzeo evdli evztw ewgou ewocs ewpvb ewpzt ewvcq ewxe exani exaxe exly exxkw eysm eythm eyxtf eyzwn ezcfe ezeys fbejj fcdwk fchjd fcsxp fcurz fdgss fduck fdwf fejhn fejzg felkl fffyy ffpm fgawg fhdi fhrni finl fjko fjlde fjqkp fjyfe fjzer fklzi fkozo flcfy flfdq flgez fliud flqk fmkte fmmwb fmtlv fmtz fnjkw foev fohxe foqry fqbar fqgd fqtf frzt fsbbk fsdx fstqd ftaf ftgla ftgqy ftvyt fuaqk fuejj fuxsy fuxvm fvcxs fwbs fwou fxsvo fyqe fzdez fzpn gaajn gawp gawzm gaypu gbxf gcftp gcgao gcte gctlf gcxuc genb gfadc gfdzx gfqz ggyij ghavr ghfz ghlov gibac gidla gipz gisxf gjfjy gknat gktfo gmro gmup gmxmy gntft goqzn gosdb gqclb gqcpt grbe grccw gskd gsoyo gtlxn gtrad gugoc gurq gvmca gvmvt gvni gvsmc gvtt gvxdo gwca gwfa gwjib gwkea gwtnr gyev gzjen gztq gzxi habcy hamv haxge hayeu hbxqe hcdcl hcemu hchg hcjpu hcovl hcslq hdusg hedz hfcm hftsu hgcgj hgnmh hgwqw hhap hhmn hifkn hiqd hivoq hjecy hkydg hmew hmlk hmma hnycl hnzo hpjo hpnel hptup hpwi hrvga hsit hsye htgqd htqbm htudi htwxp hulyx hunx huypa hvked hvuui hwvml hxgob hycdt hzgfj hzixt hzvjd iaprn icacm icaeo icfjm icssm idbr idjot idof idrbx ienlu ievs ifbbn ifqh ihqhy ihyra ihzic ijdfi ijfc ijqj ijtmu ikkvk ikssg ikwnc ilcwu illld ilxr ilygi imlwl immc injsv intdn invtk inxlr iocjj ipkfl iprag iqise isjbp ispt isvge ithy itjf ituy ivvgs ivvn iwba iwjp iwqaz iwyye ixwmp ixywm iywvg izgar jado jahra jarxv jbhg jblik jbrr jchz jcih jcjsr jdfww jdjot jdugv jesn jeta jiasn jidb jizzl jjdio jjiw jjybg jkee jkqaa jkxd jldy jmlq xbvqj xcolh xdbbr xekbp xffbu xfocf xgtjn xhsid xnicj xqjbh xqonj xxzmz xypzk xysjm xzhvb yaaxq yaiyr ybldw yblrm yddvx ydura ygsd yjka ynfvh yruii ytodh yudrb yvlob ywxhk zksop zmxpq zsqik ztcmk zyhxe zzzpc

···

13

Turnover Rate

Date TLD Blocklist Size Names Added 14 Sep .monster 108 89 6 Oct .us 9,401 6,329 14 Oct .us 18,636 10,516 20 Oct .cloud 1,072 620 23 Nov .cloud 779 429 25 Nov .co.kr 213 123 2 Dec .xyz 4,653 1,052 5 Dec .info 7,952 3,115 Date TLD Names Removed Blocklist Size 29 Oct .us 9,821 3,928 2 Nov .agency 1,615 247 12 Sep .monster 160 41

14

20,000 40,000 60,000 80,000 100,000 120,000 140,000 160,000 180,000 200,000 3-Sep 5-Sep 7-Sep 9-Sep 11-Sep 13-Sep 15-Sep 17-Sep 19-Sep 21-Sep 23-Sep 25-Sep 27-Sep 29-Sep 1-Oct 3-Oct 5-Oct 7-Oct 9-Oct 11-Oct 13-Oct 15-Oct 17-Oct 19-Oct 21-Oct 23-Oct 25-Oct 27-Oct 29-Oct 31-Oct 2-Nov 4-Nov 6-Nov 8-Nov 10-Nov 12-Nov 14-Nov 16-Nov 18-Nov 20-Nov 22-Nov 24-Nov 26-Nov 28-Nov 30-Nov 2-Dec 4-Dec 6-Dec 8-Dec 10-Dec Sep Oct Nov Dec agency biz cloud co.kr com fit gdn icu info life live monster net

• rg

pet ru site tokyo top us work world xyz

Cumulative Unique Blocked Domains

.com overwhelms

16

5,000 10,000 15,000 20,000 25,000 30,000 35,000 3-Sep 5-Sep 7-Sep 9-Sep 11-Sep 13-Sep 15-Sep 17-Sep 19-Sep 21-Sep 23-Sep 25-Sep 27-Sep 29-Sep 1-Oct 3-Oct 5-Oct 7-Oct 9-Oct 11-Oct 13-Oct 15-Oct 17-Oct 19-Oct 21-Oct 23-Oct 25-Oct 27-Oct 29-Oct 31-Oct 2-Nov 4-Nov 6-Nov 8-Nov 10-Nov 12-Nov 14-Nov 16-Nov 18-Nov 20-Nov 22-Nov 24-Nov 26-Nov 28-Nov 30-Nov 2-Dec 4-Dec 6-Dec 8-Dec 10-Dec Sep Oct Nov Dec agency biz cloud co.kr fit gdn icu info life live monster net

• rg

pet ru site tokyo top us work world xyz

Cumulative Blocked Domains (excluding .com)

.us increases

17

ECAINA Plan

◼ ECAINA will operate a trusted, neutral, public clearinghouse ◼ ECAINA will use trusted reputation data sources with additional high fidelity “curation” ◼ ECAINA will expand the reputation data to allow classification and analysis of additional security threats ◼ ECAINA will operate as a research project at George Mason University ◼ University and commercial participation will be part of ECAINA’s DNA ◼ Interisle staff will participate as co-Principal Investigators to provide subject matter expertise, recommend research activities, co-advise University graduate research assistants, and solicit industry or foundation participation and financial support

18

ECAINA Project

Phase 1:Publish Reports Phase 2: Reports, aggregated data, ECAINA-sourced and licensed underlying data Phase 1.1: Reports and underlying aggregated data available Phase 1.2: Reports, aggregated data, ECAINA- sourced underlying data ECAINA DATA REPOSITORY and ANALYTICS ENGINE Data collected by ECAINA from public sources “Raw” subscription data Pre-processed subscription data

19

ECAINA – The Players So Far

◼ Interisle

⧫ Dave Piscitello ⧫ Lyman Chapin ⧫ Colin Strutt

◼ Illumintel

⧫ Greg Aaron

◼ George Mason University (GMU)

⧫ Eric Osterweil

◼ Others welcome!

20
