Analysis of the Effects of Single Event Transients on an SAR-ADC based on Charge Redistribution Graduate Program Department of Electrical Engineering Federal University of Rio Grande do Sul - UFRGS Alisson J. C. Lanot, Tiago R. Balen

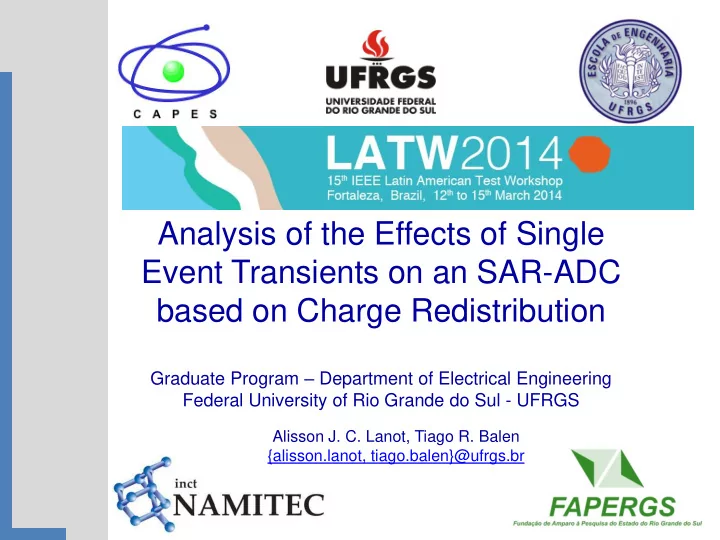

SLIDE 1

Alisson J. C. Lanot, Tiago R. Balen {alisson.lanot, tiago.balen}@ufrgs.br

Analysis of the Effects of Single Event Transients on an SAR-ADC based on Charge Redistribution

Graduate Program – Department of Electrical Engineering Federal University of Rio Grande do Sul - UFRGS

SLIDE 2

Outline

Motivation;
Theoretical Background:
Charge Redistribution SAR ADCs
Single Event Effects
Transient Faults on Programmable Capacitor Arrays (PCAs)
Methodology;
Results;
Current research.

SLIDE 3

Motivation

Analog-to-Digital converters are

frequently used on data acquisition systems.

Critical applications subject such

converters to environmental interactions (e.g. radiation effects or electromagnetic interference)

SLIDE 4

Charge Redistribution SAR ADCs

Characteristics:
Low Power
Low Area
Medium Resolution
Good Speed
Present in several commercial SoC:
PSoC5
SmartFusion
MSP430F6638 (Texas Instruments)

SLIDE 5

Charge Redistribution SAR ADCs

Stages of Conversion:
1) Sample:
2) Hold:

Kugelstadt, T. (2000)

SLIDE 6

Charge Redistribution SAR ADCs

3) Charge Redistribution Process:

Kugelstadt, T. (2000)

SLIDE 7

Theoretical Background

Single Event Effects (SEE)
Occurs when a particle collides with the semiconductor,

ionizing it.

The effects are technology-dependent.

Sturesson, F. et al. (2009)

SLIDE 8

Theoretical Background

Single Event Transient:
Arises on reversely-biased PN junctions.

Messenger, G.C. IEEE Transactions on Nuclear Science, Vol. NS-29, No. 6, December 1982

I(t) = I0 (e-t / τ1 – e-t / τ2)

SLIDE 9

Transient Faults on Programmable Capacitor Arrays:
First addressed on Balen, T.R. et. al. 12th Latin American Test

Workshop(2011).

A fault on an inverter of a transmission gate may cause a

misbalance on the capacitor array.

Though a Charge Redistribution ADC uses a similar

topology, it differs a little!

Theoretical Background

SLIDE 10

Methodology

Current sources attached to candidate

nodes of the switches. (S7.. S0)

Worst-Case:
Amplitude: 2mA
Pulse Width: 700ps

SLIDE 11

Methodology

130 nm process (Predictive Technology Model)
Design of an 8-bit charge redistribution SAR ADC
SPICE Model
Experimental Data
FERLET-CAVROIS, V. et al. IEEE Transactions on Nuclear

Science , vol.53, no.6, pp.3242-3252

NARASIMHAM, B. et al. IEEE Transactions on Nuclear

Science, vol.54, no.6, pp.2506-2511.

Fault Injection
Messenger’s double exponential model

SLIDE 12

Methodology

Switches are modelled as transmission-gates based 2:1 MUX.

SLIDE 13

Results

Switch SB (common node switch):

Voltage at the comparator input showing an error caused due the change of state on switch SB.

SLIDE 14

Results

Switch S7 (or other MSBs):

Voltage at the comparator input showing an error caused due the change of state on switch S7.

SLIDE 15

Discussion

The effect is observed mainly on switches with small widths:
(W/L)n = 520nm/130nm (4/1)
A complete correction to the faults on the switches may be

reached at:

(W/L)n = 39µm/130nm (300/1)
An SET observed on an LSB switch on an early stage of

conversion won’t impact the conversion.

Switch SB – Irrecoverable failure. May be mitigated with

redundancy.

SLIDE 16

Current Research

So, how does a SET on the switches may affect a ramp on the

input?

SLIDE 17

Current Research

So, how does the sizing of the switches may affect on the single

event transients? (W/L = 40/1).

SLIDE 18

Questions? Thank you!

Alisson J. C. Lanot alisson.lanot@ufrgs.br Tiago R. Balen tiago.balen@ufrgs.br
