SPM technique for DECIDE (Diagnostic Enhancement of Confidence by an International Distributed Environment ) Isabella Castiglioni Institute of Molecular Bioimaging and Physiology (IBFM) National Research Council (CNR), Italy DECIDE

slide-1
SLIDE 1

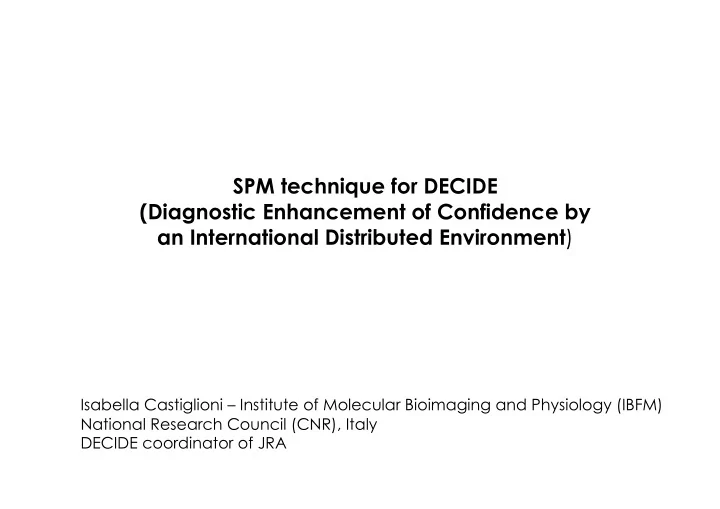

SPM technique for DECIDE (Diagnostic Enhancement of Confidence by an International Distributed Environment)

Isabella Castiglioni – Institute of Molecular Bioimaging and Physiology (IBFM) National Research Council (CNR), Italy DECIDE coordinator of JRA

slide-2
SLIDE 2

Assisted diagnosis assist physicians in the interpretation of medical images Diagnostic Enhancement of Confidence

slide-3
SLIDE 3

Computer-Aided Assisted (CAD) diagnosis CAD

  • Probability of a

specific disease

  • biomarker value
  • characteristic

pattern

  • …
slide-4
SLIDE 4

SPM: Statistical Parametric Mapping

  • developed by the Wellcome Trust Center for Neuroimaging (London, UK) in 1995

Maps of statistically significant hypo/hyper metabolic regions

  • free available (software package) to the scientific community since 1996

(spm96-spm2008) Friston KJ Holmes AP Worsley KJ Poline JB Frith CD and Frackowiak RSJ. (1995b) Statistical Parametric Maps in functional imaging: A general linear approach Hum. Brain Mapp. 2:189-210

  • btained by functional neuroimaging studies (es. 18FDG-PET)

Computer-Aided Assisted (CAD) diagnosis

  • characteristic metabolic

pattern

  • probability

e.g.“subject has a 95% chance of having that pattern.”

associated to a

slide-5
SLIDE 5

SPM: Statistical Parametric Mapping

slide-6
SLIDE 6
slide-7
SLIDE 7
slide-8
SLIDE 8
slide-9
SLIDE 9
slide-10
SLIDE 10
slide-11
SLIDE 11
slide-12
SLIDE 12
slide-13
SLIDE 13
slide-14
SLIDE 14

Analysis: voxel by voxel

slide-15
SLIDE 15
slide-16
SLIDE 16
slide-17
SLIDE 17
slide-18
SLIDE 18
slide-19
SLIDE 19
slide-20
SLIDE 20
slide-21
SLIDE 21
slide-22
SLIDE 22

Comparison of N different conditions of a single subject Hypothesis CONDITIONS N

  • 1. health
  • 4. health

N-1. health

  • N. pathological

real CONDITIONS

  • 1. Health subject 1

N-1. health subject N-1

  • N. pathological

. . . . . . . . . . . . NORMATIVE GROUP

SPM and 18FDG PET for neurodegenerative studies

  • 2. health
  • 3. health
  • 2. Health subject 2
  • 3. Health subject 3
  • 4. Health subject 4
slide-23
SLIDE 23

Covariates of interests:

SPM and 18FDG PET for neurodegenerative studies

AGE SEX Normal aging hypometabolism Smaller brain, global lower metabolism

slide-24
SLIDE 24

t-test: single subject (suspected Alzheimer’s disease) vs group of normal subjects Hypo-metabolism Normal metabolism Results: Maps of statistically significant hypometabolic regions vs Analysis: voxel by voxel General Linear Model Statistical inference p<0.05

SPM and 18FDG PET for neurodegenerative studies

slide-25
SLIDE 25

Coregistration to standard atlas (Elestic deformation + affine traslation) Standard atlas Spatial rialignement +normalization Original images

SPM and 18FDG PET for neurodegenerative studies

slide-26
SLIDE 26

Smoothed images Spatially-normalized images Smoothing

SPM and 18FDG PET for neurodegenerative studies

slide-27
SLIDE 27

Patient images Spatial normalization standard atlas Smoothing Statistical parameter maps Genera l Linear Model parameter estimates Statistical design matrix Statistical inference p<0.05

SPM and 18FDG PET for neurodegenerative studies

slide-28
SLIDE 28

18F-FDG PET study: SPM Diagnostic report for a patient with suspected AD.

The coloured regions identified by SPM (retrosplenial cortex and bilateral temporal- parietal) are typical of AD pattern.

slide-29
SLIDE 29

SPM

  • Matlab licence
  • Normal subject database
  • Expertise in the use of SPM
  • Interaction with the software

interface during image processing Requirements

ISSUES

slide-30
SLIDE 30

SPM e-services for the assisted diagnosis of neurodegenerative diseases: the FP7-Eu project DECIDE (Diagnostic Enhancement of Confidence by an International Distributed Environment) THE SOLUTION

slide-31
SLIDE 31

SPM e-services in DECIDE (GridSPM) SPM

  • Matlab licence
  • Normal subject database
  • Expertise in the use of SPM
  • Interaction with the software

interface during image processing

  • Centralized/Grid porting

Requirements Requirements

  • Collected by DECIDE clinical partners
  • Process is simpified/Users are trained
  • Avoided
slide-32
SLIDE 32

SPM in DECIDE (GridSPM)

slide-33
SLIDE 33

SPM in DECIDE (GridSPM)

slide-34
SLIDE 34

SPM in DECIDE (GridSPM)

slide-35
SLIDE 35
slide-36
SLIDE 36
slide-37
SLIDE 37
slide-38
SLIDE 38
slide-39
SLIDE 39
slide-40
SLIDE 40

Results file : Page 1

slide-41
SLIDE 41

Results file: Page 2

slide-42
SLIDE 42

Results file : Page 3

slide-43
SLIDE 43

Results file : Page 4
