AE-705: Introduction to Flight AIRFOILS Shishir Damani Mechanical Engineering Department NIT Tiruchirappalli AE-705 Introduction to Flight Lecture 07 Capsule-04 OVERVIEW What is an Airfoil? Airfoil Terminologies and Nomenclature

slide-1
SLIDE 1

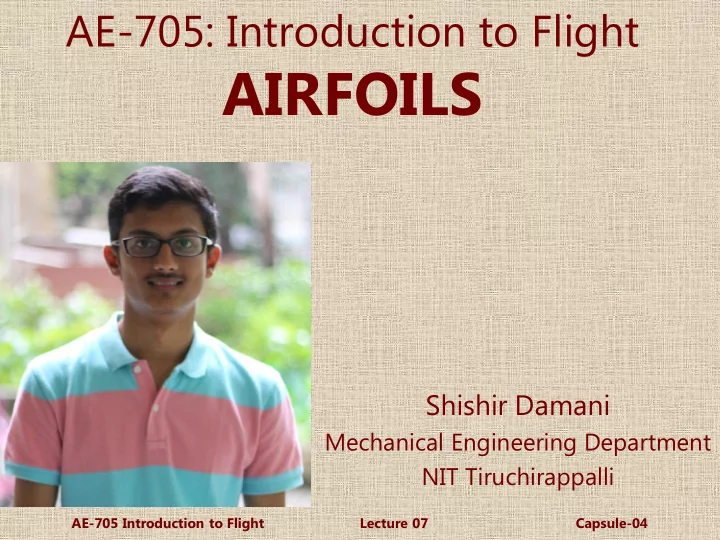

AE-705 Introduction to Flight Lecture 07 Capsule-04

AE-705: Introduction to Flight

AIRFOILS

Shishir Damani

Mechanical Engineering Department NIT Tiruchirappalli

slide-2
SLIDE 2

AE-705 Introduction to Flight Lecture 07 Capsule-04

OVERVIEW

 What is an Airfoil?  Airfoil Terminologies and Nomenclature  History of Airfoil  Types of Airfoils

 Flat Plate and Cambered Airfoil  Thick Airfoil  Laminar Airfoil  Low Reynolds Number Airfoil  Supersonic Airfoil  Supercritical Airfoil

 Modern Developments

slide-3
SLIDE 3

AE-705 Introduction to Flight Lecture 07 Capsule-04

WHAT IS AN AIRFOIL?

Foil paper in air!!

slide-4
SLIDE 4

AE-705 Introduction to Flight Lecture 07 Capsule-04

X section of the wing normal to span

Airfoil

slide-5
SLIDE 5

AE-705 Introduction to Flight Lecture 07 Capsule-04

Airfoil Terminology

slide-6
SLIDE 6

AE-705 Introduction to Flight Lecture 07 Capsule-04

AIRFOIL NOMENCLATURE

Airfoils belong to families too !

slide-7
SLIDE 7

AE-705 Introduction to Flight Lecture 07 Capsule-04

NACA 4, 5, 6, 7 & 8 series SERI family Gottingen series Eppler family NASA family GAW series Clark family TsAGI family Lissaman series Lieback family Wortmann series Antonov family KFM series BAC family Beech series Bell family Boeing series RAF series

slide-8
SLIDE 8

AE-705 Introduction to Flight Lecture 07 Capsule-04

 Solar Energy Research Institute  Advanced wind turbine blades

Source: Research paper on SERI Advance Wind Turbine Blades by J. Tangier, B. Smith, D. Jager

SERI NOMENCLATURE

Control peak rotor power (high winds) Produce power in Medium winds also

slide-9
SLIDE 9

AE-705 Introduction to Flight Lecture 07 Capsule-04

 Devised ~ 50 years ago  Poor lift-to-drag ratio  Used in RC airplanes

KLINE FOGLEMAN AIRFOIL

slide-10
SLIDE 10

AE-705 Introduction to Flight Lecture 07 Capsule-04

slide-11
SLIDE 11

AE-705 Introduction to Flight Lecture 07 Capsule-04

 Created at Gottingen University,Germany~1910s  There are one, two and three digit numbers

GOTTINGEN AIRFOIL

Source: http://www.aerospaceweb.org/question/airfoils/q0197.shtml

Gottingen 622 What’s the relation ??

slide-12
SLIDE 12

AE-705 Introduction to Flight Lecture 07 Capsule-04

 Design based on conformal-mapping  Considered velocity distribution

EPPLER AIRFOIL

Source: https://en.wikipedia.org/wiki/Conformal_map#/ media/File:Conformal_map.svg

Function which preserves angles locally

For details: https://www.youtube.com /watch?v=woBgZMtiAeI

slide-13
SLIDE 13

AE-705 Introduction to Flight Lecture 07 Capsule-04

AIRFOIL HISTORY

Who was behind all this??

slide-14
SLIDE 14

AE-705 Introduction to Flight Lecture 07 Capsule-04

A VISIT TO THE PAST

slide-15
SLIDE 15

AE-705 Introduction to Flight Lecture 07 Capsule-04

  • 1849 ; Gliders flown by Sir George Cayley
  • Scientific reasoning on cambered airfoil
  • 1884
  • Further studied and developed by Jean

Marie Le Bris, John J. Montgomery, Otto Lilienthal, Percy Pilcher, Octave Chanute and Augustus Moore Herring

slide-16
SLIDE 16

AE-705 Introduction to Flight Lecture 07 Capsule-04

Sir George Cayley first glider

slide-17
SLIDE 17

AE-705 Introduction to Flight Lecture 07 Capsule-04

 Lilienthal Ornithopter

slide-18
SLIDE 18

AE-705 Introduction to Flight Lecture 07 Capsule-04

  • Wright Brothers developed three gliders
  • In July 1899 Wilbur tested wing warping
  • 1901 glider larger wing area

Stalled a few times Forward elevator

Source: https://en.wikipedia.org/wiki/Wright_brothers#Flights

Phewwww!!!

slide-19
SLIDE 19

AE-705 Introduction to Flight Lecture 07 Capsule-04

Early WTT misleading!! Thin Airfoils WTT at low speed

At low speeds most flow remained attached but was separated in reality

slide-20
SLIDE 20

AE-705 Introduction to Flight Lecture 07 Capsule-04

slide-21
SLIDE 21

AE-705 Introduction to Flight Lecture 07 Capsule-04

TYPES OF AIRFOILS

Let’s see what this has to give us??

slide-22
SLIDE 22

AE-705 Introduction to Flight Lecture 07 Capsule-04

FLAT PLATE

Seriously!!!!!

slide-23
SLIDE 23

AE-705 Introduction to Flight Lecture 07 Capsule-04

Flat Plates cannot produce Lift ?

WHY NOT USE FLAT PLATES?

slide-24
SLIDE 24

AE-705 Introduction to Flight Lecture 07 Capsule-04

 Air flow speed and static pressure Lift  Camber changes V and P laminar flow  Most wings are designed with this concept 

η of the airfoil

slide-25
SLIDE 25

AE-705 Introduction to Flight Lecture 07 Capsule-04 Source: https://www.quora.com/Why-are-thick-airfoils-useful-Are-they-for-generating-lift-at-low-airspeeds

EFFECT OF CAMBER ON LIFT

slide-26
SLIDE 26

AE-705 Introduction to Flight Lecture 07 Capsule-04

EFFECT OF CAMBER ON LIFT

slide-27
SLIDE 27

AE-705 Introduction to Flight Lecture 07 Capsule-04 Source: https://www.quora.com/Why-are-thick-airfoils-useful-Are-they-for-generating-lift-at-low-airspeeds

EFFECT OF CAMBER ON LIFT

slide-28
SLIDE 28

AE-705 Introduction to Flight Lecture 07 Capsule-04

EFFECT OF CAMBER ON LIFT

slide-29
SLIDE 29

AE-705 Introduction to Flight Lecture 07 Capsule-04

 Powerful engines Focus on L/D ratio ( L)  Drag aerodynamic characteristic

Source: https://www.quora.com/Why-are-thick-airfoils-useful-Are-they-for-generating-lift-at-low-airspeeds

EFFECT OF CAMBER ON LIFT

slide-30
SLIDE 30

AE-705 Introduction to Flight Lecture 07 Capsule-04

THICK AIRFOILS

Are these stuffed up??

Source: https://backcountrypilot.org/forum/horizontal- stabilizer-shape-air-foil-vs-flat-pros-cons-18170

slide-31
SLIDE 31

AE-705 Introduction to Flight Lecture 07 Capsule-04

 Thin airfoils stall at α  Separation of the flow over the top surface creates

drag loss of lift

Ludwig Prandtl (1875-1953)

I have a mathematical model

Larger LE radii Higher α before stall

slide-32
SLIDE 32

AE-705 Introduction to Flight Lecture 07 Capsule-04

 Thicker airfoils flow separation till α

L

 German engineers planes climbed faster and

maneuver more sharply

Source: http://www.aviation-history.com/articles/great-war.htm

slide-33
SLIDE 33

AE-705 Introduction to Flight Lecture 07 Capsule-04

Source: https://www.quora.com/How-can-wings-of-aircraft-store-fuel

 Thicker airfoils flow separation till α

L

 German engineers planes climbed faster and

maneuver more sharply

 Benefits; more space for:

  • Fuel tanks
  • Space for LG
slide-34
SLIDE 34

AE-705 Introduction to Flight Lecture 07 Capsule-04

Source: https://www.quora.com/How-can-wings-of-aircraft-store-fuel

Source: http://www.clubhyper.com/reference/fw190landinggear_1.htm

 Thicker airfoils flow separation till α

L

 German engineers planes climbed faster and

maneuver more sharply

 Benefits; more space for:

  • Fuel tanks
  • Space for LG
  • Structural spar

Source: http://www.darkgovernment.com/RANCHO/CRASH/TWA/WINGBOX/wingbox.gif

slide-35
SLIDE 35

AE-705 Introduction to Flight Lecture 07 Capsule-04

Some Airplanes with their Airfoils

slide-36
SLIDE 36

AE-705 Introduction to Flight Lecture 07 Capsule-04

LAMINAR AIRFOIL

So they don’t have turbulence?

slide-37
SLIDE 37

AE-705 Introduction to Flight Lecture 07 Capsule-04

Source: https://blog.rescale.com/leveraging-rescale-for-high-order-cfd-simulation/

slide-38
SLIDE 38

AE-705 Introduction to Flight Lecture 07 Capsule-04

 Developed to fly faster  Aim: Maintain laminar flow over larger chord

slide-39
SLIDE 39

AE-705 Introduction to Flight Lecture 07 Capsule-04

 Developed to fly faster  Aim: Maintain laminar flow over larger chord

slide-40
SLIDE 40

AE-705 Introduction to Flight Lecture 07 Capsule-04

Turbulent flow on airfoil more stable?? Simple Answer: Skin friction drag compared to turbulent flow

WHY LAMINAR AIRFOILS?

P-51 Mustang

slide-41
SLIDE 41

AE-705 Introduction to Flight Lecture 07 Capsule-04

Turbulent flow on airfoil more stable?? Simple Answer: Skin friction drag compared to turbulent flow

WHY LAMINAR AIRFOILS?

https://en.wikipedia.org/wiki/North_American_P-51_Mustang

P-51 Mustang

slide-42
SLIDE 42

AE-705 Introduction to Flight Lecture 07 Capsule-04

LOW REYNOLDS NUMBER AIRFOIL

Fly at low speed….

slide-43
SLIDE 43

AE-705 Introduction to Flight Lecture 07 Capsule-04

Reynolds number inertial effects vs viscous (fluid stickiness) effects

LRN AIRFOILS

Drag or stream wise resistance Limiting and controlling the maximum lift

Grumman HU-16B Albatross

Chord Reynolds Number = Vc/ν

slide-44
SLIDE 44

AE-705 Introduction to Flight Lecture 07 Capsule-04

Reynolds number inertial effects vs viscous (fluid stickiness) effects

LRN AIRFOILS

Drag or stream wise resistance Limiting and controlling the maximum lift

Source: http://www.humanpoweredflying.propdesigner.co.uk/html/the_gossamers.html

Gossamer Albatross

slide-45
SLIDE 45

AE-705 Introduction to Flight Lecture 07 Capsule-04

Reynolds number inertial effects vs viscous (fluid stickiness) effects

LRN AIRFOILS

Drag or stream wise resistance Limiting and controlling the maximum lift

Source: https://media.defense.gov/2005/Dec/26/2000574422/670/394/0/050322-F-1234P-028.JPG

Grumman HU-16B Albatross

slide-46
SLIDE 46

AE-705 Introduction to Flight Lecture 07 Capsule-04

SUPERSONIC AIRFOIL

Faster than sound!!!

slide-47
SLIDE 47

AE-705 Introduction to Flight Lecture 07 Capsule-04

Source: https://www.rt.com/usa/330524-sonic-boom-new-jersey/

Notice here

slide-48
SLIDE 48

AE-705 Introduction to Flight Lecture 07 Capsule-04

 Engines (powerful) easy v( )  High speeds difficult for flow to remain attached

Sharp LE Do you notice something?

slide-49
SLIDE 49

AE-705 Introduction to Flight Lecture 07 Capsule-04

Have you ever wondered that you could be flying on a plane producing shock waves?? Now what does that mean??

Video Courtesy: Russell Croman (https://www.youtube.com/watch?v=HekbC6Pl4_Y)

slide-50
SLIDE 50

AE-705 Introduction to Flight Lecture 07 Capsule-04

 Objective: Delay the onset of wave drag  This aircraft speed is called the critical speed

Now hat does that mean??

slide-51
SLIDE 51

AE-705 Introduction to Flight Lecture 07 Capsule-04

 Objective: Delay the onset of wave drag  This aircraft speed is called the critical speed

Source: https://www.nasa.gov/centers/armstrong/news/FactSheets/FS-044-DFRC.html

Large LE Radius Flat upper surface High cambered aft section

slide-52
SLIDE 52

AE-705 Introduction to Flight Lecture 07 Capsule-04

 The flat upper surface does the  Reduces aerodynamic drag associated with

BL separation

Source: Richard Whitcomb; Review of NASA Supercritical Airfoils. NASA

slide-53
SLIDE 53

AE-705 Introduction to Flight Lecture 07 Capsule-04

VERY LOW SPEED AIRFOIL

Do these fly at the speed of Maruti 800?

slide-54
SLIDE 54

AE-705 Introduction to Flight Lecture 07 Capsule-04

 Lift with very less speed  Solar powered aircraft low power engines  The airfoil used on the Solar Challenger

VLS AIRFOILS

Source: http://www.aviastar.org/air/usa/maccready_solar.php

Flat upper surface for easy solar cells installation

slide-55
SLIDE 55

AE-705 Introduction to Flight Lecture 07 Capsule-04

 Laminar airfoil was considered  NACA 63412 profile  Lissaman Hibbs 8025, 8230 and Wortmann

profiles also

Solar Impulse

slide-56
SLIDE 56

AE-705 Introduction to Flight Lecture 07 Capsule-04

PARAFOIL

Used in parachutes?

slide-57
SLIDE 57

AE-705 Introduction to Flight Lecture 07 Capsule-04

Source: https://www.gombergkites.com/inflated.html

slide-58
SLIDE 58

AE-705 Introduction to Flight Lecture 07 Capsule-04

 Nonrigid (textile) airfoil inflated by the wind  Ram-air inflates it to a classic wing cross-

section

 Material-Ripstop nylon

slide-59
SLIDE 59

AE-705 Introduction to Flight Lecture 07 Capsule-04

REFLEX AIRFOIL

Wow! Are these flexible?

slide-60
SLIDE 60

AE-705 Introduction to Flight Lecture 07 Capsule-04

A flying wing is a tailless fixed-wing aircraft that has no definite fuselage

Source: Google images (B2 Bomber)

Non-symmetrical airfoils on flying wings

slide-61
SLIDE 61

AE-705 Introduction to Flight Lecture 07 Capsule-04

Non-symmetrical airfoils on flying wings

S-Shape Lifted aft

slide-62
SLIDE 62

AE-705 Introduction to Flight Lecture 07 Capsule-04

SYMMETRICAL AIRFOIL

Nature loves symmetry!!

slide-63
SLIDE 63

AE-705 Introduction to Flight Lecture 07 Capsule-04

 Line of symmetry (chord)

Source: http://www.wbko.com/content/news/The-Latest-Missing-pilots-company-calls-it-a-difficult-day- 408890925.html

Pilatus PC-12

slide-64
SLIDE 64

AE-705 Introduction to Flight Lecture 07 Capsule-04

 Line of symmetry (chord)  Best L/D ratio  Lower Cl than the asymmetrical airfoil  Tilting changes the flow of air Lift  Used on control surfaces

Source: http://www.wbko.com/content/news/The-Latest-Missing- pilots-company-calls-it-a-difficult-day-408890925.html

slide-65
SLIDE 65

AE-705 Introduction to Flight Lecture 07 Capsule-04

INVERTED AIRFOIL

So we can fly upside down?

slide-66
SLIDE 66

AE-705 Introduction to Flight Lecture 07 Capsule-04

 Usually for horizontal stabilizer  Provide –ve lift  downforce

Dornier 228

Source: https://planefinder.net/data/aircraft/G-SAYE

slide-67
SLIDE 67

AE-705 Introduction to Flight Lecture 07 Capsule-04

THAT’S ALL !

Time for some self-study now
