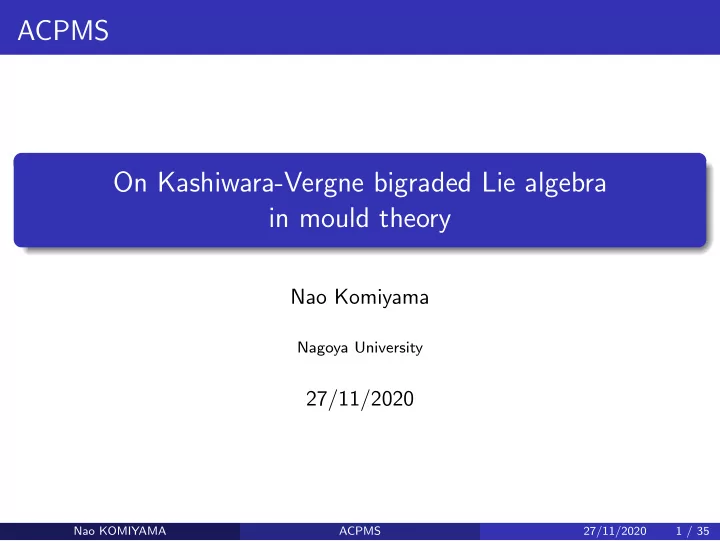

ACPMS On Kashiwara-Vergne bigraded Lie algebra in mould theory

Nao Komiyama

Nagoya University

27/11/2020

Nao KOMIYAMA ACPMS 27/11/2020 1 / 35

Contents

1

Introduction Kashiwara-Vergne group Kashiwara-Vergne Lie algebra

2

Mould Definition of mould Lie algebra ARI(Γ) of moulds

3

Lie algebra Lie subalgebras of ARI(Γ) Kashiwara-Vergne bigraded Lie algebra lkrv(Γ)••

Nao KOMIYAMA ACPMS 27/11/2020 2 / 35

Section 1 Introduction

Nao KOMIYAMA ACPMS 27/11/2020 3 / 35

Introduction ∼Kashiwara-Vergne group∼

Kashiwara and Vergne proposed a conjecture related to the Campbell-Baker-Hausdorff series in the following paper: The Campbell-Hausdorff formula and invariant hyperfunctions,

• Invent. Math. 47 (1978), no. 3, 249-272.

There is one of the formulations of the above KV conjecture by Alekseev, Enriquez and Torossian.

Notation

• Let F2 be the completed free Lie algebra with two variables X0 and X1.
• Denote by UF2 = k⟨⟨X0, X1⟩⟩ the non-commutative formal power series

ring defined as the universal enveloping algebra of F2.

• Put exp F2 to be the image of F2 under the map exp : F2 → UF2 defined

by exp(x) := ∑

n≥0

xn n! (x ∈ F2).

Nao KOMIYAMA ACPMS 27/11/2020 4 / 35

Introduction ∼Kashiwara-Vergne group∼

Generalized Kashiwara-Vergne problem ([Alekseev-Enriquez-Torossian])

Find a group automorphism P : exp F2 → exp F2 such that P ∈ TAut exp F2 and P satisfies P(eX0eX1) = eX0+X1 and the coboundary Jacobian condition δ ◦ J(P) = 0. Here, P ∈ TAut exp F2 means that P is in Aut exp F2 such that P(eX0) = p1eX0p−1

1

and P(eX1) = p2eX1p−1

2

for some p1, p2 ∈ exp F2. J stands for the Jacobian cocycle and δ means the differential map.

Nao KOMIYAMA ACPMS 27/11/2020 5 / 35

Introduction ∼Kashiwara-Vergne group∼

Definition ([A-E-T; 2010], [A-T; 2012])

The Kashiwara-Vergne group KRV is defined to be the set of P ∈ TAut exp F2 which satisfies P(eX0eX1) = eX0+X1 and the coboundary Jacobian condition δ ◦ J(P) = 0.

Remark

The set KRV forms a subgroup of Aut exp F2.

Nao KOMIYAMA ACPMS 27/11/2020 6 / 35

Introduction ∼Kashiwara-Vergne group∼

We denote KRV0 to be a subgroup of KRV consisting of P without linear terms in p1 and p2. There are the following inclusions.

Theorem ([A-E-T; 2010], [A-T; 2012])

GRT1 ⊂ KRV0.

Theorem ([Schneps; 2012])

DMR0 ⊂ KRV0. Here, GRT1 is the Grothendieck-Teichm¨ uller group introduced by Drinfel’d, and DMR0 is the double shuffle group introduced by Racinet. cf.) H. Furusho, Around associators. Automorphic forms and Galois representations, (2014) Vol. 2, 105–117.

Nao KOMIYAMA ACPMS 27/11/2020 7 / 35

Introduction ∼Kashiwara-Vergne Lie algebra∼

To recall the definition of KV Lie algebra, we prepare some notations.

• Let L = ⊕w≥1Lw be the free graded Lie Q-algebra generated by two

variables x and y with deg x = deg y = 1 (Lw is the Q-linear space generated by Lie monomials whose total degree is w).

• The non-commutative polynomial algebra

A = Q⟨x, y⟩ is regarded as the universal enveloping algebra of L.

• Put Cyc(A) to be the Q-linear space generated by cyclic words of A,

and put the trace map tr : A ↠ Cyc(A) to be the natural projection.

Nao KOMIYAMA ACPMS 27/11/2020 8 / 35

Introduction ∼Kashiwara-Vergne Lie algebra∼

Definition ([A-E-T; 2010], [A-T; 2012])

The Kashiwara-Vergne (graded) Lie algebra is the graded Q-linear space krv• = ⊕w≥2krvw. Here, its degree w-part krvw is defined to be the set of Lie elements F ∈ Lw such that there exists G = G(F) in Lw with [x, G] + [y, F] = 0 (KV1) and α ∈ Q with tr(Gxx + Fyy) = α · tr ((x + y)w − xw − yw) (KV2) when we write F = Fxx + Fyy and G = Gxx + Gyy in A. We note that such G = G(F) uniquely exists for F ∈ Lw when w ≥ 2.

Nao KOMIYAMA ACPMS 27/11/2020 9 / 35

Introduction ∼Kashiwara-Vergne Lie algebra∼

The Lie algebra structure of krv•

• Let tder be the set of tangential derivation of L.

The derivation DF,G of L defined by x → [x, G] and y → [y, F] for some F, G ∈ L. It forms a Lie algebra by the bracket [DF1,G1, DF2,G2] = DF1,G1 ◦ DF2,G2 − DF2,G2 ◦ DF1,G1.

• We denote sder to be set of special derivations, which are tangential

derivations D such that D(x + y) = 0. It forms a Lie subalgebra of tder. The Lie algebra structure of krv• is defined to be compatible with that of sder under the embedding F ∈ krv• to DF,G(F) ∈ sder.

Today’s goal

To give a Kashiwara-Vergne bigraded Lie algebra lkrv(Γ)••.

Nao KOMIYAMA ACPMS 27/11/2020 10 / 35

Section 2 Mould

Nao KOMIYAMA ACPMS 27/11/2020 11 / 35

Mould ∼Definition∼

Early 1980s, the mould was introduced by Ecalle in his paper: Les fonctions r´ esurgentes, Tome I, II, III. In 2000s, he applied the moulds to study of multiple zeta values in papers:

• ARI/GARI, la dimorphie et l’arithm´

etique des multizetas,

• The flexion structure and dimorphy: flexion units, singulators, generators,

and the enumeration of multizeta irreducibles. cf.) Schneps, ARI, GARI, Zig and Zag: An introduction to Ecalle’s theory

• f multiple zeta values, arXiv:1507.01534.

Nao KOMIYAMA ACPMS 27/11/2020 12 / 35

Mould ∼Definition∼

Let Γ be a finite abelian group. We set F := ∪

m⩾1

Q(x1, . . . , xm).

Definition ([Furusho-K, Definition 1.1])

A mould on Z⩾0 with values in F is a collection (a sequence) M = (Mm(x1, . . . , xm))m∈Z⩾0 = ( M0(∅), M1(x1), M2(x1, x2), . . . ) , with M0(∅) ∈ Q and Mm(x1, . . . , xm) ∈ Q(x1, . . . , xm)⊕Γ⊕m for m ⩾ 1, which is described by a summation Mm(x1, . . . , xm) = ⊕

(σ1,...,σm)∈Γ⊕mMm σ1,...,σm(x1, . . . , xm)

where each Mm

σ1,...,σm(x1, . . . , xm) ∈ Q(x1, . . . , xm).

Nao KOMIYAMA ACPMS 27/11/2020 13 / 35

Mould ∼Definition∼

• We denote the set of all moulds with values in F by M(F; Γ).

The set M(F; Γ) forms a Q-linear space by A + B := (Am(x1, . . . , xm) + Bm(x1, . . . , xm))m∈Z⩾0, cA := (cAm(x1, . . . , xm))m∈Z⩾0, for A, B ∈ M(F; Γ) and c ∈ Q.

• We define a product on M(F; Γ) by

(A × B)m

σ1,...,σm(x1, . . . , xm) := m

∑

i=0

Ai

σ1,...,σi(x1, . . . , xi)Bm−i σi+1,...,σm(xi+1, . . . , xm),

for A, B ∈ M(F; Γ) and for m ⩾ 0 and for (σ1, . . . , σm) ∈ Γ⊕m.

• Then the pair (M(F; Γ), ×) is a non-commutative, associative, unital

Q-algebra. Here, the unit I ∈ M(F; Γ) is given by I := (1, 0, 0, . . . ).

Nao KOMIYAMA ACPMS 27/11/2020 14 / 35

Mould ∼Example∼

We give some examples.

Example

(1). Define A ∈ M(F; Γ) by

Am

σ1,...,σm(x1, . . . , xm) :=

{ 0 (m = 0, 1),

1 (x2−x1) · · · 1 (xr −xr−1)

(m ≥ 2),

for m ≥ 0 and for σ1, . . . , σm ∈ Γ. (2). Define B ∈ M(F; Γ) by

Bm

σ1,...,σm(x1, . . . , xm) :=

{ 0 (m = 0, 1),

1 x1 + · · · + 1 xm − 1 x1+···+xm

(m ≥ 2),

for m ≥ 0 and for σ1, . . . , σm ∈ Γ.

Nao KOMIYAMA ACPMS 27/11/2020 15 / 35

Mould ∼Lie algebra ARI(Γ)∼

• Put ARI(Γ) := {M ∈ M(F; Γ) | M0(∅) = 0}

(this set forms a non-unital subalgebra of (M(F; Γ), ×)). For M ∈ ARI(Γ), we sometimes denote Mm

σ1,...,σm(x1, . . . , xm) by

Mm (x1, ..., xm

σ1, ..., σm

) .

• In order to give a Lie algebraic structure to ARI(Γ), we prepare the

algebraic formulation: Put X := {(xi

σ

)}

i∈N,σ∈Γ. Let XZ be the set such that

XZ := {(u

σ) | u = a1x1 + · · · + akxk, k ∈ N, aj ∈ Z, σ ∈ Γ} .

Let X •

Z be the non-commutative free monoid generated by all elements of

XZ with the empty word ∅ as the unit. Occasionally we denote each element ω = u1 · · · um ∈ X •

Z with u1, . . . , um ∈ XZ by ω = (u1, . . . , um) as

a sequence. The length of ω = u1 · · · um is defined to be l(ω) := m.

Nao KOMIYAMA ACPMS 27/11/2020 16 / 35

Mould ∼Lie algebra ARI(Γ)∼

Definition ([F-K, Definition 1.8])

The flexions are the four binary operators

∗⌈∗, ∗⌉∗, ∗⌊∗, ∗⌋∗ : X •

Z × X • Z → X • Z which are defined by

β⌈α :=

(

b1 + · · · + bn + a1, a2, . . . , am σ1, σ2, . . . , σm

) , α⌉β := (

a1, . . . , am−1, am + b1 + · · · + bn σ1, . . . , σm−1, σm

) ,

β⌊α :=

(

a1, . . . , am τ −1

n

σ1, . . . , τ −1

n

σm

) , α⌋β := (

a1, . . . , am σ1τ −1

1

, . . . , σmτ −1

1

) ,

∅⌈γ := γ⌉∅ := ∅⌊γ := γ⌋∅ := γ, γ⌈∅ := ∅⌉γ := γ⌊∅ := ∅⌋γ := ∅,

for α = (a1,...,am

σ1,...,σm

) , β = (

b1,...,bn τ1,...,τn

) ∈ X •

Z (m, n ⩾ 1) and γ ∈ X • Z.

Nao KOMIYAMA ACPMS 27/11/2020 17 / 35

Mould ∼Lie algebra ARI(Γ)∼

Put x0 := ∅ and xm := (x1, ..., xm

σ1, ..., σm

) for m ⩾ 1.

Definition ([F-K, Definition 1.9]

• cf. [Ecalle; 2011], [Schneps; 2015])

Let B ∈ ARI(Γ). The linear map aritu(B) : ARI(Γ) → ARI(Γ) is defined by (aritu(B)(A))0(x0) := (aritu(B)(A))1(x1) := 0 and for m ≥ 2 (aritu(B)(A))m(xm) := ∑

xm=αβγ β,γ̸=∅

Al(α,γ)(αβ⌈γ)Bl(β)(β⌋γ) − ∑

xm=αβγ α,β̸=∅

Al(α,γ)(α⌉βγ)Bl(β)(α⌊β), for A ∈ ARI(Γ).

Remark

Assume that u1, . . . , um ∈ F are algebraically independent over Q. For M ∈ ARI(Γ), we denote Mm (u1, ..., um

σ1, ..., σm

) to be the image of Mm (x1, ..., xm

σ1, ..., σm

) under the field embedding Q(x1, . . . , xm) ֒ → F sending xi → ui.

Nao KOMIYAMA ACPMS 27/11/2020 18 / 35

Mould ∼Lie algebra ARI(Γ)∼

Example

For m = 2, we have

(aritu(B)(A))2(x2) = A1 (x1 + x2 σ2 ) B1 ( x1 σ1σ−1

2

) − A1 (x1 + x2 σ1 ) B1 ( x2 σ2σ−1

1

) ,

and for m = 3, we have

(aritu(B)(A))3(x3) = A2 (x1, x2 + x3 σ1, σ3 ) B1 ( x2 σ2σ−1

3

) + A1 (x1 + x2 + x3 σ3 ) B2 ( x1, x2 σ1σ−1

3 , σ2σ−1 3

) + A2 (x1 + x2, x3 σ2, σ3 ) B1 ( x1 σ1σ−1

2

) − A2 (x1 + x2, x3 σ1, σ3 ) B1 ( x2 σ2σ−1

1

) − A1 (x1 + x2 + x3 σ1 ) B2 ( x2, x3 σ2σ−1

1 , σ3σ−1 1

) − A2 (x1, x2 + x3 σ1, σ2 ) B1 ( x3 σ3σ−1

2

) .

Nao KOMIYAMA ACPMS 27/11/2020 19 / 35

Mould ∼Lie algebra ARI(Γ)∼

Lemma ([F-K, Lemma 1.10])

For any A ∈ ARI(Γ), aritu(A) forms a derivation of ARI(Γ) with respect to the product ×, that is, for any B, C ∈ ARI(Γ), we have aritu(A)(B × C) = aritu(A)(B) × C + B × aritu(A)(C). The bilinear map ariu : ARI(Γ)⊗2 → ARI(Γ) is defined by ariu(A, B) := aritu(B)(A) − aritu(A)(B) + [A, B] for A, B ∈ ARI(Γ). Here, we have [A, B] := A × B − B × A.

Proposition ([F-K, Proposition 1.12])

The Q-linear space ARI(Γ) forms a Lie algebra under the ariu-bracket.

Nao KOMIYAMA ACPMS 27/11/2020 20 / 35

Section 3 Lie algebra

Nao KOMIYAMA ACPMS 27/11/2020 21 / 35

Lie subalgebra of ARI(Γ)

• We set AX := Q⟨XZ⟩ to be the non-commutative polynomial algebra

generated by XZ (i.e. AX is the Q-linear space generated by X •

Z).

• We equip AX a product : A⊗2

X → AX which is linearly defined by

∅ ω := ω ∅ := w and uω vη := u(ω vη) + v(uω η), for u, v ∈ XZ and ω, η ∈ X •

Z.

• Then the pair (AX, ) forms a commutative, associative, unital

Q-algebra. We define the family { Sh (ω;η

α

)}

ω,η,α∈X •

Z in Z by

ω η = ∑

α∈X •

Z

Sh (ω; η α ) α.

Nao KOMIYAMA ACPMS 27/11/2020 22 / 35

Lie subalgebra of ARI(Γ)

Definition ([F-K, Definition 1.4])

A mould M ∈ ARI(Γ) is called alternal if ∑

α∈X •

Z

Sh ((x1, ..., xp

σ1, ..., σp

) ; (xp+1, ..., xp+q

σp+1, ..., σp+q

) α ) Mp+q(α) = 0, for all p, q ⩾ 1. The Q-linear space ARI(Γ)al is defined to be the subset of moulds M ∈ ARI(Γ) which are alternal.

Proposition ([F-K, Proposition 1.13])

The Q-linear space ARI(Γ)al forms a Lie subalgebra of ARI(Γ) under the ariu-bracket. cf.) The above proposition for Γ = {e} is shown in [SaSch, Appendix A].

Nao KOMIYAMA ACPMS 27/11/2020 23 / 35

Lie subalgebra of ARI(Γ)

• We prepare ARI(Γ), a copy of ARI(Γ).
• We denote Mm

σ1,...,σm(x1, . . . , xm) by Mm (σ1, ..., σm x1, ..., xm ) for each element

M ∈ ARI(Γ) to distinguish it from an element in ARI(Γ). (For M ∈ ARI(Γ), Mm

σ1,...,σm(x1, . . . , xm) is denoted by Mm (x1, ..., xm σ1, ..., σm

) )

• We define the Q-linear map swap : ARI(Γ) → ARI(Γ) by

swap(M)m ( σ1, . . . , σm x1, . . . , xm ) = Mm ( xm, xm−1 − xm, . . . , x2 − x3, x1 − x2 σ1 · · · σm, σ1 · · · σm−1, . . . , σ1σ2, σ1 )

for any mould M = ( Mm (x1, ..., xm

σ1, ..., σm

)) ∈ ARI(Γ).

ARI(Γ)al/al := {M ∈ ARI(Γ)al | swap(M) ∈ ARI(Γ)al, M1 (x1

σ1

) = M1 (

−x1 σ−1

1

) }.

Proposition ([F-K, Proposition 1.21])

The Q-linear space ARI(Γ)al/al forms a Lie subalgebra of ARI(Γ)al under the ariu-bracket.

Nao KOMIYAMA ACPMS 27/11/2020 24 / 35

Lie subalgebra of ARI(Γ)

• Define maps push : ARI(Γ) → ARI(Γ) and pus : ARI(Γ) → ARI(Γ) by

push(M)m(

x1, . . . , xm σ1, . . . , σm

) = Mm( −x1 − · · · − xm,

x1, . . . , xm−1 σ−1

m ,

σ1σ−1

m ,

. . . , σm−1σ−1

m

) , pus(N)m(

σ1, . . . , σm x1, . . . , xm

) = Nm(

σm, σ1, . . . , σm−1 xm, x1, . . . , xm−1

) , for M ∈ ARI(Γ) and N ∈ ARI(Γ).

• We call a mould M ∈ ARI(Γ) push invariant when we have

push(M) = M, and call a mould N ∈ ARI(Γ) pus-neutral when we have

m

∑

i=1

pusi(N)m (σ1, ..., σm

x1, ..., xm

)  = ∑

i∈Z/mZ

Nm (σi+1, ..., σi+m

xi+1, ..., xi+m

)   = 0, for all m ⩾ 1 and σ1, . . . , σm ∈ Γ.

• We define ARI(Γ)push/pusnu to be the set of moulds M ∈ ARI(Γ) which

is push-invariant and whose swap(M) ∈ ARI(Γ) is pus-neutral.

Nao KOMIYAMA ACPMS 27/11/2020 25 / 35

Lie subalgebra of ARI(Γ)

Theorem ([F-K, Theorem 1.28])

The set ARI(Γ)push/pusnu forms a Lie subalgebra of ARI(Γ) under the ariu-bracket. The set ARI(Γ)al/al is encoded with the depth filtration {Film

DARI(Γ)al/al}m≥0 where Film DARI(Γ)al/al is the collection of moulds

M ∈ ARI(Γ)al/al with Mr(x1, . . . , xr) = 0 for r < m. The Lie algebra structure of ARI(Γ)al/al is compatible with the depth filtration.

Theorem ([F-K, Theorem 3.13])

There is an embedding Fil2

DARI(Γ)al/al ֒

→ ARI(Γ)push/pusnu

• f graded Lie algebras.

Nao KOMIYAMA ACPMS 27/11/2020 26 / 35

Kashiwara-Vergne bigraded Lie algebra lkrv(Γ)••

• Let L = ⊕w≥1Lw be the free graded Lie Q-algebra generated by N + 1

variables x and yσ (σ ∈ Γ) with deg x = deg yσ = 1. Here Lw is the Q-linear space generated by Lie monomials whose total degree is w.

• The (N + 1)-variable non-commutative polynomial algebra

A = Q⟨x, yσ; σ ∈ Γ⟩ is regarded as the universal enveloping algebra of L.

• We define the action of τ ∈ Γ on A (hence of L) by

τ(x) = x and τ(yσ) = yτσ.

• Put πY to be the composition of the natural projection and inclusion:

πY : A ↠ A/A · x ≃ Q ⊕ (⊕σ∈ΓAyσ) ֒ → A, and q to be the Q-linear isomorphism on A defined by q(xe0yσ1xe1yσ2 · · · xer−1yσr xer ) = xe0yσ1xe1yσ2σ−1

1

· · · xer−1yσrσ−1

r−1xer . Nao KOMIYAMA ACPMS 27/11/2020 27 / 35

Kashiwara-Vergne bigraded Lie algebra lkrv(Γ)••

Definition (Kashiwara-Vergne bigraded Lie algebra: [F-K, Definition 2.17])

Define lkrv(Γ)•• = ⊕w>1,d>0lkrv(Γ)w,d to be the bigraded Q-linear space, where lkrv(Γ)w,d is the Q-linear space consisting of ¯ F ∈ grd

DLw whose lift

F ∈ Fild

DLw satisfies the following relations:

[x, G] + ∑

τ∈Γ

[yτ, τ(F)] ≡ 0 mod Fild+2

D

Lw+1, (LKV1) tr ◦ q ◦ πY (F(z; (yσ))) ≡ 0 mod tr(Fild+1

D

Aw) (LKV2) for a certain G = G(F) ∈ Lw. Here, we put z = −x − ∑

σ∈Γ yσ.

Nao KOMIYAMA ACPMS 27/11/2020 28 / 35

Kashiwara-Vergne bigraded Lie algebra lkrv(Γ)••

• A mould M ∈ M(F; Γ) is called finite when Mm(x1, . . . , xm) = 0 except

for finitely many m. It is called polynomial-valued when Mm

σ1,...,σm(x1, . . . , xm) ∈ Q[x1, . . . , xm] for all (σ1, . . . , σm) ∈ Γ⊕m and m.

• We denote M(F; Γ)fin,pol (resp. ARI(Γ)fin,pol) to be the subset of all

finite polynomial-valued moulds in M(F; Γ) (resp. ARI(Γ)). We note that ARI(Γ)fin,pol forms a Lie subalgebra of ARI(Γ).

Theorem ([F-K, Theorem 2.22])

We have an isomorphism of bigraded Q-linear spaces lkrv(Γ)•• ≃ ARI(Γ)push/pusnu ∩ ARI(Γ)fin,pol

al

.

Theorem ([F-K, Theorem 2.23])

The space lkrv(Γ)•• forms a bigraded Lie algebra.

Nao KOMIYAMA ACPMS 27/11/2020 29 / 35

On the graded case

• Define a map teru : ARI(Γ) → ARI(Γ) by

teru(M)m( x1,

. . . , xm σ1, . . . , σm

) := Mm( x1,

. . . , xm σ1, . . . , σm

) + 1 um { Mm−1( x1,

. . . , xm−2, xm−1 + xm σ1, . . . , σm−2, σm−1

) − Mm−1( x1,

. . . , xm−1 σ1, . . . , σm−1

)} .

for M ∈ ARI(Γ).

• In [Ecalle, 2011], the following relation is introduced:

teru(M) = push ◦ mantar ◦ teru ◦ mantar(M), which is called the senary relation. Here, the map mantar : ARI(Γ) → ARI(Γ) is given by mantar(M)m(

x1, . . . , xm σ1, . . . , σm

) := (−1)m−1Mm(

xm, . . . , x1 σm, . . . , σ1

) .

Nao KOMIYAMA ACPMS 27/11/2020 30 / 35

On the graded case

Definition ([F-K, Definition 2.14])

We define the Q-linear space ARI(Γ)sena/pusnu to be the subset of moulds M in ARI(Γ) which satisfy the senary relation and whose swap satisfy the pus-neutrality. It is easy to know that mantar ◦ mantar = id and grD(teru) = id. Hence, we get an embedding of Q-linear space grDARI(Γ)sena/pusnu ֒ → ARI(Γ)push/pusnu.

Nao KOMIYAMA ACPMS 27/11/2020 31 / 35

On the graded case

Definition ([F-K, Definition 2.1])

Define krv(Γ)• = ⊕w≥2krv(Γ)w to be the graded Q-linear space, where krv(Γ)w is the Q-linear space consisting of Lie elements F ∈ Lw which satisfies the following relations: [x, G] + ∑

τ∈Γ

[yτ, τ(F)] = 0, (KV1) tr ◦ q ◦ πY (F(z; (yσ))) = 0 (KV2) for a certain G = G(F) ∈ Lw.

Remark (conditions of lkrv(Γ)••)

[x, G] + ∑

τ∈Γ

[yτ, τ(F)] ≡ 0 mod Fild+2

D

Lw+1, (LKV 1) tr ◦ q ◦ πY (F(z; (yσ))) ≡ 0 mod tr(Fild+1

D

Aw). (LKV 2)

Nao KOMIYAMA ACPMS 27/11/2020 32 / 35

On the graded case

Remark

We see that the above krv(Γ)• with Γ = {e} recovers the original Kashiwara-Vergne Lie algebra denoted by krv0

2 introduced in [A-T] and the

depth¿1-part of krv introduced in [Raphael-Schneps, Definition 3].

Theorem ([Theorem 2.15])

We have an isomorphism of filtered Q-linear spaces krv(Γ)• ≃ ARI(Γ)sena/pusnu ∩ ARI(Γ)fin,pol

al

.

Remark ([F-K, Theorem 2.22])

There is an isomorphism of bigraded Q-linear spaces lkrv(Γ)•• ≃ ARI(Γ)push/pusnu ∩ ARI(Γ)fin,pol

al

.

Nao KOMIYAMA ACPMS 27/11/2020 33 / 35

Future work

1 It is also not clear if krv(Γ)• forms a Lie algebra or not.

Is krv(Γ)• a Lie algebra?

2 The existence of an embedding

Fil2

DARI(Γ)al/il ֒

→ ARI(Γ)teru/pusnu. (cf. In our paper, we proved that there is an embedding Fil2

DARI(Γ)al/al ֒

→ ARI(Γ)push/pusnu).

3 In [A-T], Lie algebras krv0

n (n ≥ 1) are introduced, and in

[Alekseev-Kawazumi-Kuno-Naef], Lie algebras krvn (n ≥ 2) are also

• introduced. We do not know how their Lie algebras krv0

n and krvn are

related to our krv(Γ)•.

Nao KOMIYAMA ACPMS 27/11/2020 34 / 35

Thank you for listening!!

Nao KOMIYAMA ACPMS 27/11/2020 35 / 35
