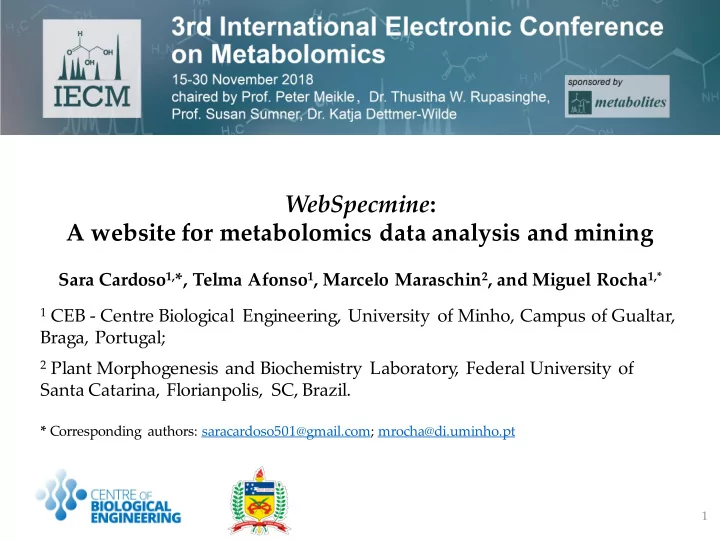

WebSpecmine: A website for metabolomics data analysis and mining

Sara Cardoso1,*, Telma Afonso1, Marcelo Maraschin2, and Miguel Rocha1,*

1 CEB - Centre Biological Engineering, University of Minho, Campus of Gualtar,

Braga, Portugal;

2 Plant Morphogenesis and Biochemistry Laboratory

, Federal University of Santa Catarina, Florianpolis, SC, Brazil.

* Corresponding authors: saracardoso501@gmail.com; mrocha@di.uminho.pt

1

WebSpecmine: A website for metabolomics data analysis and mining

2

Introduction

4

Metabolomics

✓ Analysingmetabolomics data correctly and efficiently is nowadays very important in biological and biomedical research. A website to perform metabolomicsdata analysisis an importantasset Most people that want to perform this analysismay not have the programming skills needed However

Introduction

5

Some of the Existing Websites

Covered Techniques

LC/GC-MS Raw Spectra LC/GC-MS Raw Spectra LC/GC-MS Peak Lists NMR Peak Lists Metabolites' Concentrations (Quantitative Data)

Univariate Analysis

T-Test; ANOVA; Fold Change T-Test; ANOVA; Non-Parametric Tests;

Multivariate Analysis

PCA; Clustering; Machine Learning (only PLS-DA); Feature Selection (only Random Forests and SVM) PCA; Clustering; Machine Learning (only LDA, PLS-DA and Random Forests)

Other Features

Correlation Analysis; Metabolite Identification (only for MS); Pathway Analysis Metabolite Identification; Pathway Analysis; User Account

Introduction

6

What is missing in the existing websites?

A wide variety of techniques and data formats supported SpectralData (Raman, UV-Vis and IR) is missing A wide variety of pre-processing methods Mostly just normalization, scaling, missing values treatment A wide variety of analysis methods There should be more model options for machine learning, for example Flexible Pipeline Most of the time, users have to follow a strict pipeline User Account So that data and results can be stored and shared

What was our main goal, then?

7

SOLUTION: ✓ Create an easy-to-use and freely available website that provides a wide variety of methods and data types for analysis, and ways to store and share metabolomics data and the results generated.

WebSpecmine: overview

8

Metabolomicsdata Supported ✓ NMR ✓ LC/GC-MS ✓ Infrared, UV-Visible, and Raman Spectra ✓ ConcentrationsData(QuantitativeData) Metabolomicsdata Analysis Available ✓ UnivariateStatistical Analysis ✓ Unsupervised MultivariateStatisticalAnalysis ✓ Supervised MultivariateStatistical Analysis ✓ MetaboliteIdentification ✓ Pathway Analysis Data Pre-Processing User Account ✓ Store data and results privately ✓ Share data across users Tutorials and User Guide

WebSpecmine: Supported data

9

LC/GC-MS

Raw Spectra Data Formats ✓ .mzData ✓ .mzXML ✓ .netDF Peak Lists Data Formats ✓ CSV ✓ TSV

WebSpecmine: Supported data

10

NMR

Raw Spectra Data Formats ✓ BRUKER ✓ VARIAN Peak Lists Data Formats ✓ CSV ✓ TSV

WebSpecmine: Supported data

11

Spectral Data: Raman, IR and UV-Vis

Spectra Data Formats ✓ CSV ✓ (J)DX ✓ SPC ✓ MS EXCEL (.xlsx)

WebSpecmine: Supported data

12

✓ CSV/TSV File:

Concentrations (Quantitative) Data

Metabolites Names or Identifiers Samples' Names Concentrations values of each metabolite in each sample

WebSpecmine: Supported data

13

Metadata

✓ CSV/TSV File: ✓ All types of data should have a metadata file associated

Samples' Names Names of the metadata classes Metadata values for each metadata class in each sample

WebSpecmine: User Account

14

Why a User Account?

✓ Main website functionalitiesare accessible without a user account ✓ But you will have to create an account if you want to:

• Save and Share data and results
• Leave an analysisin 'stand-by'

WebSpecmine: User Account

15

Creationof a User Account

To have one, users have to send an email, asking to create an account, and an email with the credentials will be sent as soon as possible. Email: webspecmine@gmail.com

WebSpecmine: User Account

16

Data Projects: What is?

A project is a study, or group of studies, which contains the data and metadatafor each study, as well as reports from the results obtained Projects can be: Private Public

WebSpecmine: User Account

17

Your Projects

The projects stored in an account are accessible through My Projects sidebar tab

WebSpecmine: User Account

18

Public Projects

Everyone that accesses the website can see all public projects, at the Public Projects sidebar tab

WebSpecmine: User Account

19

Public Projects

Everyone that accesses the website can see all public projects, at Public Projects sidebar tab To analyse a public project, you would have to copy it to your account and analyse it from there, so that the original project is not compromised.

WebSpecmine: User Account

20

Workspace: Users can leave their analysis in 'stand-by' and continue later

Users can leave an analysis at any time, by saving the workspace, and continue next time

WebSpecmine: Select Data for Analysis

21

For Logged In Users 1

Select the Project, the data folder from that project where the data to analyse is, and the metadata file from that project that corresponds to the data selected

WebSpecmine: Select Data for Analysis

22

For Logged In Users 1 2

Set the options required to correctly read the data and metadata files

WebSpecmine: Select Data for Analysis

23

For Logged In Users 1 2 3

After finishing the setting of data and metadataoptions, the user can submit the data for analysis

WebSpecmine: Select Data for Analysis

24

For Logged Out Users

✓ The Procedure is similar, but the data files and metadata files have to be submitted, as they are not stored in the website. ✓ The data submitted will only be temporarilystored, while the analysis is in action.

Once the user selects the data, the data analysis pages will be accessible

25

WebSpecmine: Data Visualization

26

1

The website provides a way to visualize the data

WebSpecmine: Data Visualization

27

1

Data Summary

2

WebSpecmine: Data Visualization

28

1

Data and Metadata Tables

2 3

WebSpecmine: Data Visualization

29

1

Samples' and Variables' Statistics

2 3 4

WebSpecmine: Data Visualization

30

1

Boxplots of the Variables

2 3 4 5

WebSpecmine: Data Visualization

31

1

Plot for Peaks Data

2 3 4 5 6

WebSpecmine: Data Visualization

32

1

Plot for Spectra

2 3 4 5 6

WebSpecmine: Pre-Processing

33

1

The website provides a wide variety of pre-processing methods, that can be performed in the desired order

WebSpecmine: Pre-Processing

34

1

Methods that are availablefor all types of data

2

WebSpecmine: Pre-Processing

35

1

Methods that are availablefor all types of data

2

WebSpecmine: Pre-Processing

36

1

Methods that are availablefor all types of data

2

WebSpecmine: Pre-Processing

37

1

Methods only for spectral data

2 3

WebSpecmine: Pre-Processing

38

1

Method only for NMR Spectra

2 3 4

WebSpecmine: Pre-Processing

39

1

After processing the data, a name to the new dataset has to be given

2 3 4 5

To perform an analysis on the new dataset, the user will have to choose it

• n the sidebar panel

WebSpecmine: Data Analysis

40

WebSpecmine: Data Analysis

41

Univariate Analysis

Example for T-Test

Analysis options for a T-Test

WebSpecmine: Data Analysis

42

Univariate Analysis

Example for T-Test

Types of results available for this type of analysis: numerical results

WebSpecmine: Data Analysis

43

Univariate Analysis

Example for T-Test

Types of results available for this type of analysis: plot

WebSpecmine: Data Analysis

44

Univariate Analysis

Other Analysis

There are other Univariate Analysis methods available The types of results available for each analysis is similar to those showed for T-Test

WebSpecmine: Data Analysis

45

Principal Components Analysis (PCA)

Analysis options for both normal and robust PCAs

WebSpecmine: Data Analysis

46

Principal Components Analysis (PCA)

Types of results available for this type of analysis: numerical results

WebSpecmine: Data Analysis

47

Principal Components Analysis (PCA)

Types of results available for this type of analysis: plot results

WebSpecmine: Data Analysis

48

Principal Components Analysis (PCA)

Types of results available for this type

• f analysis: plot results

Hierarchical Clustering

WebSpecmine: Data Analysis

49

Clustering Analysis

Analysis options

WebSpecmine: Data Analysis

50

Clustering Analysis

Hierarchical Clustering

Types of results available for this type of analysis

K-Means Clustering

WebSpecmine: Data Analysis

51

Clustering Analysis

Analysis options

WebSpecmine: Data Analysis

52

Clustering Analysis

K-Means Clustering

Types of results available for this type of analysis

WebSpecmine: Data Analysis

53

Machine Learning

Train Models

Analysis options

WebSpecmine: Data Analysis

54

Machine Learning

Train Models

Analysis options

Available models:

• PLS
• Decision Tree
• Rule-Based Classifier
• SVMs with Linear Kernel
• Random Forests
• Linear Discriminant Analysis
• Neural Networks

WebSpecmine: Data Analysis

55

Machine Learning

Train Models

Types of results available for this type of analysis

WebSpecmine: Data Analysis

56

Machine Learning

Predict New Samples

Analysis options

WebSpecmine: Data Analysis

57

Machine Learning

Predict New Samples

Types of results available for this type of analysis

WebSpecmine: Data Analysis

58

Feature Selection

Analysis options

WebSpecmine: Data Analysis

59

Feature Selection

Types of results available for this type of analysis

WebSpecmine: Data Analysis

60

Regression Analysis

Regression Analysis

Analysis options

WebSpecmine: Data Analysis

61

Regression Analysis

RegressionAnalysis

Types of results available for this type of analysis: numerical results

WebSpecmine: Data Analysis

62

Regression Analysis

Regression Analysis

Types of results available for this type of analysis: plot results

WebSpecmine: Data Analysis

63

Regression Analysis

Correlation Analysis

Analysis options

WebSpecmine: Data Analysis

64

Regression Analysis

CorrelationAnalysis

Types of results available for this type of analysis: numerical results

WebSpecmine: Data Analysis

65

Regression Analysis

Correlation Analysis

Types of results available for this type of analysis: plot results

WebSpecmine: Data Analysis

66

Metabolite Identification

LC-MS Data

Analysis options

WebSpecmine: Data Analysis

67

Metabolite Identification

LC-MS Data

Results available for this type of analysis

WebSpecmine: Data Analysis

68

Metabolite Identification

NMR Data

Analysis options

WebSpecmine: Data Analysis

69

Metabolite Identification

NMR Data

Results available for this type of analysis

WebSpecmine: Data Analysis

70

Pathway Analysis

Analysis options

WebSpecmine: Data Analysis

71

Pathway Analysis

Results available for this type of analysis

WebSpecmine: Analysis of MetaboLights Studies

72

You can see information on some of the MetaboLights studies

WebSpecmine: Analysis of MetaboLights Studies

73

You can see detailed information on the protocol and metadata information on each assay

WebSpecmine: Analysis of MetaboLights Studies

74

You can download the data and metadata of an assay into your private account and analyse it

Conclusions

75

✓ We were able to create an easy-to-use and freely availablewebsite with many advantages:

▪ Wide variety of techniques and data formats supported ▪ Wide variety of pre-processing methods ▪ Wide variety of analysis methods ▪ User Account ▪ Flexible Pipeline

✓ However, more analyses could be added, to add more biologicalmeaningto data, such as:

▪ Enrichment Analysis ▪ Biomarker Analysis

For More Detailed Information ...

Website Link: https://webspecmine.bio.di.uminho.pt/ We have Tutorials and a complete User Guide at the ?Help page. We have a troubleshooting window, from where the users can report any problems and see the problems already encountered, but still being solved.

76

Acknowledgments

77

Christopher Costa, for being the main developer of the specmine R package
