Intro vORAM HIRB Results A Practical Oblivious Map Data Structure with Secure Deletion and History Independence Daniel S. Roche Adam J. Aviv Seung Geol Choi Computer Science Department United States Naval Academy Annapolis, Maryland, USA


slide-1
SLIDE 1

Intro vORAM HIRB Results

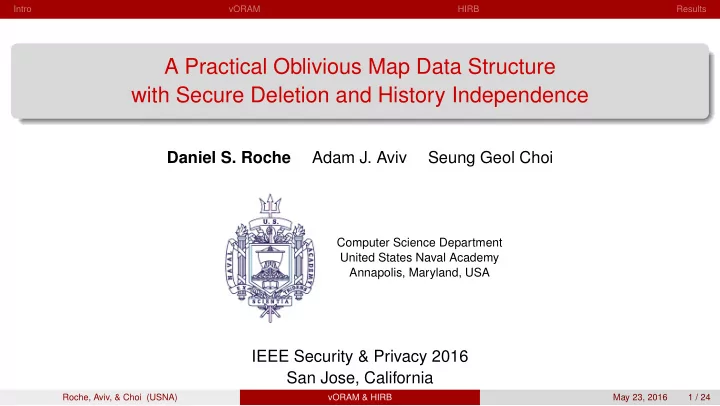

A Practical Oblivious Map Data Structure with Secure Deletion and History Independence

Daniel S. Roche Adam J. Aviv Seung Geol Choi

Computer Science Department United States Naval Academy Annapolis, Maryland, USA

IEEE Security & Privacy 2016 San Jose, California

Roche, Aviv, & Choi (USNA) vORAM & HIRB May 23, 2016 1 / 24

slide-2
SLIDE 2

Intro vORAM HIRB Results

Goal: A remote key/value store with. . .

Strong privacy

Hidden keys, values, and access patterns (Obliviousness) Secure against powerful attackers (Secure Deletion and History Independence)

Practical utility

No computation on server Poly-logarithmic local storage, bandwidth, computation Low round complexity

Roche, Aviv, & Choi (USNA) vORAM & HIRB May 23, 2016 2 / 24

slide-3
SLIDE 3

Intro vORAM HIRB Results

Oblivious RAM

Oblivious RAM (ORAM) hides access patterns as well as data. (Goldreich & Ostrovsky JACM’96, and many more since then!)

Roche, Aviv, & Choi (USNA) vORAM & HIRB May 23, 2016 3 / 24

slide-4
SLIDE 4

Intro vORAM HIRB Results

Oblivious RAM

Oblivious RAM (ORAM) hides access patterns as well as data. (Goldreich & Ostrovsky JACM’96, and many more since then!) Cloud eavesdropper learns the number of operations and nothing else.

Roche, Aviv, & Choi (USNA) vORAM & HIRB May 23, 2016 3 / 24

slide-5
SLIDE 5

Intro vORAM HIRB Results

Problem 1

What if the size of data is not fixed? ORAM reveals the number of operations, and therefore data size.

Insecure solution

Send multiple blocks depending on the data size

Inefficient solution

Pad all data up to the maximum size

Roche, Aviv, & Choi (USNA) vORAM & HIRB May 23, 2016 4 / 24

slide-6
SLIDE 6

Intro vORAM HIRB Results

Problem 1

What if the size of data is not fixed? ORAM reveals the number of operations, and therefore data size.

Insecure solution

Send multiple blocks depending on the data size

Inefficient solution

Pad all data up to the maximum size

Our approach: Oblivious RAM with variable blocks (vORAM)

Hide large data in the overhead of Path ORAM, Large data blocks are stored across multiple ORAM “buckets”.

Roche, Aviv, & Choi (USNA) vORAM & HIRB May 23, 2016 4 / 24

slide-7
SLIDE 7

Intro vORAM HIRB Results

Oblivious Data Structures (ODS)

Storing a data structure in ORAM (Wang et. al, CCS’14)

Roche, Aviv, & Choi (USNA) vORAM & HIRB May 23, 2016 5 / 24

slide-8
SLIDE 8

Intro vORAM HIRB Results

Oblivious Data Structures (ODS)

Storing a data structure in ORAM (Wang et. al, CCS’14) Pieces of data structure (i.e., nodes) are stored in ORAM blocks.

Roche, Aviv, & Choi (USNA) vORAM & HIRB May 23, 2016 5 / 24

slide-9
SLIDE 9

Intro vORAM HIRB Results

Problem 2

What if your data structure has varying running time? The number of memory accesses in each operation are leaked by ORAM.

Insecure solution

Let the number of operations vary by access

Inefficient solution

Perform dummy operations up to the worst-case cost

Roche, Aviv, & Choi (USNA) vORAM & HIRB May 23, 2016 6 / 24

slide-10
SLIDE 10

Intro vORAM HIRB Results

Problem 2

What if your data structure has varying running time? The number of memory accesses in each operation are leaked by ORAM.

Insecure solution

Let the number of operations vary by access

Inefficient solution

Perform dummy operations up to the worst-case cost

Our approach: History-Independent Randomized B Tree (HIRB)

Use a fixed-height tree data structure, so that no padding is necessary.

Roche, Aviv, & Choi (USNA) vORAM & HIRB May 23, 2016 6 / 24

slide-11
SLIDE 11

Intro vORAM HIRB Results

“Catastrophic” Attacks

An attacker may be able to coerce the private key.

Roche, Aviv, & Choi (USNA) vORAM & HIRB May 23, 2016 7 / 24

slide-12
SLIDE 12

Intro vORAM HIRB Results

“Catastrophic” Attacks

An attacker may be able to coerce the private key.

Roche, Aviv, & Choi (USNA) vORAM & HIRB May 23, 2016 7 / 24

slide-13
SLIDE 13

Intro vORAM HIRB Results

Problem 3

What if your private key is compromised? Some leakage is inevitable ORAM reveals entire history, including prior deletions Most data structures also leak history information

Inefficient solution

Re-encrypt and transfer entire data set on every access

Roche, Aviv, & Choi (USNA) vORAM & HIRB May 23, 2016 8 / 24

slide-14
SLIDE 14

Intro vORAM HIRB Results

Problem 3

What if your private key is compromised? Some leakage is inevitable ORAM reveals entire history, including prior deletions Most data structures also leak history information

Inefficient solution

Re-encrypt and transfer entire data set on every access

Our approach (vORAM+HIRB)

HIRB data structure leaks no history nor prior deletions. vORAM leaks minimal history and no prior deletions.

Roche, Aviv, & Choi (USNA) vORAM & HIRB May 23, 2016 8 / 24

slide-15
SLIDE 15

Intro vORAM HIRB Results

Outline and Related Work

1 Problem Statement and Goals 2 vORAM: Oblivious RAM with variable-sized blocks

Path ORAM (Stefanov et al., CCS’13) Secure deletion B-tree (Reardon et al., CCS’13)

3 HIRB: History Independent Randomized B-Tree

Oblivious Data Structures (Wang et al., CCS’14) History-Independent Data Structures (Naor & Teague ’01, Hartline et al. ’02, Golovin ’08)

4 Experimental Results

Roche, Aviv, & Choi (USNA) vORAM & HIRB May 23, 2016 9 / 24

slide-16
SLIDE 16

Intro vORAM HIRB Results

Path ORAM with Variable-Sized Blocks: vORAM

General idea: Large items are rare; distribute their bits along an ORAM path. Terminology: Each tree node is a bucket stored on the server. The user stores blocks of data. Each block may be broken up into chunks of bytes. Crucial restrictions: All chunks of the same block are on the same path Chunks of the same block are always in order

Roche, Aviv, & Choi (USNA) vORAM & HIRB May 23, 2016 10 / 24

slide-17
SLIDE 17

Intro vORAM HIRB Results

vORAM Example: Setup

3 1 1 1 1 1 1 3 1 1 3 1 4 1 4 1 4 1 7 1 1 1

1 2 3 4 5 6 7

Stored blocks: 1

1 1 1

Color represents data, Width = size, Number = position.

Roche, Aviv, & Choi (USNA) vORAM & HIRB May 23, 2016 11 / 24

slide-18
SLIDE 18

Intro vORAM HIRB Results

vORAM Example: Update

3 1 1 1 1 1 1 3 1 1 3 1 4 1 4 1 4 1 7 1 1 1

1 2 3 4 5 6 7

Stash: UPDATE(1 ): Evict, Re-assign, Writeback

Roche, Aviv, & Choi (USNA) vORAM & HIRB May 23, 2016 12 / 24

slide-19
SLIDE 19

Intro vORAM HIRB Results

vORAM Example: Update

3 1 1 1 1 1 1 3 1 1 3 1 4 1 4 1 4 1 7 1 1 1

1 2 3 4 5 6 7

Stash:

6 3

UPDATE(1 ): Evict, Re-assign, Writeback

Roche, Aviv, & Choi (USNA) vORAM & HIRB May 23, 2016 12 / 24

slide-20
SLIDE 20

Intro vORAM HIRB Results

vORAM Example: Update

6 3 1 1 1 1 3 1 1 3 1 4 1 4 1 4 1 7 1 1 1

1 2 3 4 5 6 7

Stash: UPDATE(1 ): Evict, Re-assign, Writeback

Roche, Aviv, & Choi (USNA) vORAM & HIRB May 23, 2016 12 / 24

slide-21
SLIDE 21

Intro vORAM HIRB Results

More details on vORAM

Identifiers are chosen randomly, and the position (leaf node index) is a prefix of the identifier. The entire path is fetched and returned in parallel, resulting in 2 rounds per operation. Each node encrypted with a key stored in the parent node that is refreshed on each

  • peration — implies secure deletion.

No history beyond the most recent O(n/ log n) operations is revealed, matching an asymptotic lower bound

Roche, Aviv, & Choi (USNA) vORAM & HIRB May 23, 2016 13 / 24

slide-22
SLIDE 22

Intro vORAM HIRB Results

How big should the buckets be?

An crucial parameter is bucket size: number of bytes per bucket. As with Path ORAM, if this is too small, the root node (or stash) will “overflow”.

Theorem

The vORAM stash will overflow with only negligible probability if: Block sizes are bounded by a geometric distribution Bucket size is 20 times the expected block size Note: In practice, the constant can be only 6, not 20.

Roche, Aviv, & Choi (USNA) vORAM & HIRB May 23, 2016 14 / 24

slide-23
SLIDE 23

Intro vORAM HIRB Results

Oblivious Data Structures

Recall the identifiers in vORAM: 4 6 These identifiers are random; where do we store them?

Roche, Aviv, & Choi (USNA) vORAM & HIRB May 23, 2016 15 / 24

slide-24
SLIDE 24

Intro vORAM HIRB Results

Oblivious Data Structures

Recall the identifiers in vORAM: 4 6 These identifiers are random; where do we store them? Standard solution: Store a position map in recursively smaller ORAMs ODS (Wang et al. ’14): If you’re storing a data structure, store each node’s identifier in its parent node! To store a key/value map, use an AVL tree.

Roche, Aviv, & Choi (USNA) vORAM & HIRB May 23, 2016 15 / 24

slide-25
SLIDE 25

Intro vORAM HIRB Results

Example: AVL Tree Leakage

We want to store a key/value data structure within the vORAM. But most data structures leak history information! Were you browsing reddit or youtube? ieee arxiv stackoverflow usna ieee arxiv usna stackoverflow

Roche, Aviv, & Choi (USNA) vORAM & HIRB May 23, 2016 16 / 24

slide-26
SLIDE 26

Intro vORAM HIRB Results

Example: AVL Tree Leakage

We want to store a key/value data structure within the vORAM. But most data structures leak history information! Were you browsing reddit or youtube? ieee arxiv stackoverflow reddit usna ieee arxiv usna stackoverflow youtube

Roche, Aviv, & Choi (USNA) vORAM & HIRB May 23, 2016 16 / 24

slide-27
SLIDE 27

Intro vORAM HIRB Results

HIRB = History-Independent Randomized B-tree

Overview: B-tree structure, but the height of each element is uniquely determined. Heights determined from a randomly-selected hash function. The keys of key/value pairs are not stored, only their hashes. Strong history independence (Naor & Teague, STOC’01): The contents of the tree uniquely determine its structure.

Roche, Aviv, & Choi (USNA) vORAM & HIRB May 23, 2016 17 / 24

slide-28
SLIDE 28

Intro vORAM HIRB Results

HIRB Example

Over-simplification: Height = number of trailing zeros in hash 400 390 145 386 398 480 640 8 489 493 531 674 679

Roche, Aviv, & Choi (USNA) vORAM & HIRB May 23, 2016 18 / 24

slide-29
SLIDE 29

Intro vORAM HIRB Results

HIRB Example

Over-simplification: Height = number of trailing zeros in hash Example: Insert HELLO hash(HELLO) = 510 400 390 145 386 398 480 640 8 489 493 531 674 679

Roche, Aviv, & Choi (USNA) vORAM & HIRB May 23, 2016 18 / 24

slide-30
SLIDE 30

Intro vORAM HIRB Results

HIRB Example

Over-simplification: Height = number of trailing zeros in hash Example: Insert HELLO hash(HELLO) = 510 400 390 145 386 398 480 510 640 8 489 493 531 674 679

Roche, Aviv, & Choi (USNA) vORAM & HIRB May 23, 2016 18 / 24

slide-31
SLIDE 31

Intro vORAM HIRB Results

Choosing the heights

At tree creation: Choose a random hash function. Crucial parameter: β, the expected block size Given an element: Compute its hash, to seed a PRNG. Sample from a geometric distribution with probability β − 1

β

to determine the height.

Roche, Aviv, & Choi (USNA) vORAM & HIRB May 23, 2016 19 / 24

slide-32
SLIDE 32

Intro vORAM HIRB Results

HIRB+vORAM

The HIRB is perfectly suited for vORAM: Node sizes follow a geometric distribution Identifiers can be stored in parent nodes Height is fixed — no padding necessary Combination still provides secure deletion HIRB leaks no operation history beyond what vORAM inevitably leaks

Roche, Aviv, & Choi (USNA) vORAM & HIRB May 23, 2016 20 / 24

slide-33
SLIDE 33

Intro vORAM HIRB Results

Comparison baselines

vORAM+HIRB: Good performance, near-best security. Path ORAM with AVL tree: Poor performance, no secure deletion. Uses padding for obliviousness. Secure deletion B-tree: Best performance, no obliviousness. A normal B-tree, re-encrypting nodes on each access. Na¨ ıve baseline: Worst performance, best security. Re-encrypt and transfer the entire dataset on each access. All implemented by us, in Python3, and tested using Amazon AWS.

Roche, Aviv, & Choi (USNA) vORAM & HIRB May 23, 2016 21 / 24

slide-34
SLIDE 34

Intro vORAM HIRB Results

Biggest Factors of Performance Improvement

Height of HIRB compared to AVL tree Larger nodes in HIRB to take advantage of block size Efficient block packing in vORAM Parallel fetching of paths from vORAM All leads to significantly reduced round complexity

Roche, Aviv, & Choi (USNA) vORAM & HIRB May 23, 2016 22 / 24

slide-35
SLIDE 35

Intro vORAM HIRB Results

Experimental Timings

0.01 0.1 1 10 100 1000 10000 29 210 211 212 213 214 215 216 217 218 219 Median Access Time (s) (logscale) Number of Entries (logscale) vORAM+HIRB Path ORAM with AVL tree Secure deletion B-tree Naive Baseline

Roche, Aviv, & Choi (USNA) vORAM & HIRB May 23, 2016 23 / 24

slide-36
SLIDE 36

Intro vORAM HIRB Results

Take-Aways

ORAMs don’t (have to) suck. Our construction has practical utility in a real cloud setting. We can get more flexibility and privacy from ORAMs. We support variable-size blocks, secure deletion, and (limited) history independence. Specialized data structures are needed to work well in ORAMs Our HIRB tree is ideally suited for vORAM.

Roche, Aviv, & Choi (USNA) vORAM & HIRB May 23, 2016 24 / 24

slide-37
SLIDE 37

Intro vORAM HIRB Results

Take-Aways

ORAMs don’t (have to) suck. Our construction has practical utility in a real cloud setting. We can get more flexibility and privacy from ORAMs. We support variable-size blocks, secure deletion, and (limited) history independence. Specialized data structures are needed to work well in ORAMs Our HIRB tree is ideally suited for vORAM.

Thank You!

Daniel S. Roche, Adam Aviv, and Seung Geol Choi (U.S. Naval Academy) A Practical Oblivious Map Data Structure with Secure Deletion and History Independence

Roche, Aviv, & Choi (USNA) vORAM & HIRB May 23, 2016 24 / 24
