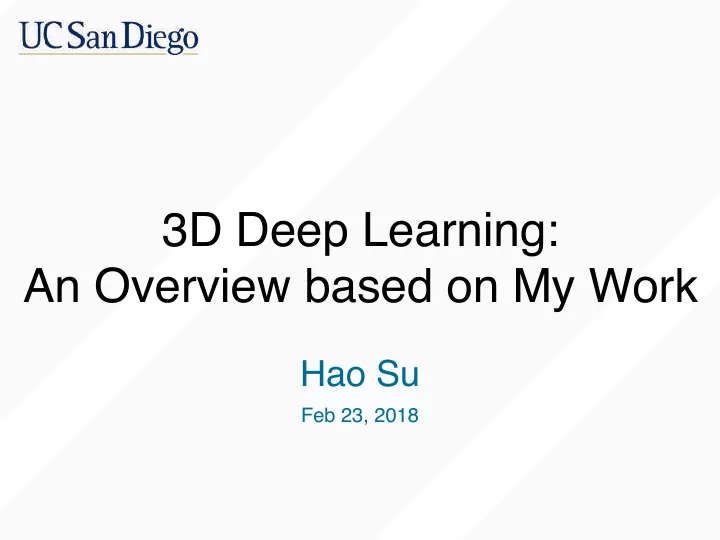

SLIDE 1
3D Deep Learning: An Overview based on My Work
Hao Su
Feb 23, 2018
02/23/2018
Our world is 3D
Hao Su
2
3D Deep Learning: An Overview based on My Work Hao Su Feb 23, 2018 - - PowerPoint PPT Presentation
3D Deep Learning: An Overview based on My Work Hao Su Feb 23, 2018 - - PowerPoint PPT Presentation
3D Deep Learning: An Overview based on My Work Hao Su Feb 23, 2018 Our world is 3D Hao Su 2 02/23/2018 Broad applications of 3D data Roboti Hao Su 3 02/23/2018 Broad applications of 3D data Augmented Roboti Hao Su 4 02/23/2018 Broad
SLIDE 2
SLIDE 3
02/23/2018
Broad applications of 3D data
Hao Su
3 Roboti
SLIDE 4
02/23/2018
Broad applications of 3D data
Hao Su
4 Roboti Augmented
SLIDE 5
02/23/2018 Autonomous
Broad applications of 3D data
Hao Su
5 Roboti Augmented
SLIDE 6
02/23/2018 Autonomous
Broad applications of 3D data
Hao Su
6 Roboti Augmented Medical Image Processing
SLIDE 7
02/23/2018
3D Understanding Enables Interactions
Hao Su
7 [SIGGRAPH Asia 2016]
Example: 3D understanding for a robot
SLIDE 8
02/23/2018
3D Understanding Enables Interactions
Hao Su
8
Shape
SLIDE 9
02/23/2018
3D Understanding Enables Interactions
Hao Su
9
Shape Graspable
SLIDE 10
02/23/2018
3D Understanding Enables Interactions
Hao Su
10
Shape Mass Graspable
SLIDE 11
02/23/2018
3D Understanding Enables Interactions
Hao Su
11
Shape Mass Mobility Graspable
SLIDE 12
02/23/2018
AI Perspective of 3D Understanding
Hao Su
12
See the world Understand the world Transform the world
Sensory Cognition Action
Towards interaction with the physical world, 3D is the key!
SLIDE 13
3D Perception requires “Knowledge” of 3D World
SLIDE 14
02/23/2018
Traditional 3D Vision
Hao Su
14
Multi-view Geometry: Physics based
SLIDE 15
3D Learning: Knowledge Based
SLIDE 16
02/23/2018
3D Learning: Knowledge Based
Hao Su
16
SLIDE 17
02/23/2018
Acquire Knowledge of 3D World by Learning
Hao Su
17
SLIDE 18
02/23/2018
3D Learning Tasks
Hao Su
18
3D Analysis
Classification Segmentation (object/scene) Correspondence
SLIDE 19
02/23/2018
3D Learning Tasks
Hao Su
19
3D Synthesis
Monocular 3D reconstruction Shape completion Shape modeling
SLIDE 20
02/23/2018
3D Learning Tasks
Hao Su
20
3D-based Knowledge Transportation
SLIDE 21
02/23/2018
3D Learning Tasks
Hao Su
21
Intuitive Physics based on 3D Understanding
SLIDE 22
02/23/2018
Deep Learning on 3D: A New Rising Field
Hao Su
22
3D Understanding
Computer Vision Computer Graphics Robotics Cognitive Science Machine Learning Differential Geometry Topological Analysis Functional Analysis
Artificial Intelligence Mathematics
SLIDE 23
02/23/2018
Outline
Hao Su
23
Overview of 3D Deep Learning 3D Deep Learning Algorithms
SLIDE 24
02/23/2018
The Representation Issue of 3D Deep Learning
Hao Su
24
Images: Unique representation with regular data structure
SLIDE 25
02/23/2018
Hao Su
25
3D has many representations: multi-view RGB(D) images volumetric polygonal mesh point cloud primitive-based models
The Representation Issue of 3D Deep Learning
SLIDE 26
02/23/2018
Hao Su
26
Novel view image synthesis
3D has many representations: multi-view RGB(D) images volumetric polygonal mesh point cloud primitive-based models
The Representation Issue of 3D Deep Learning
SLIDE 27
02/23/2018
Hao Su
27
3D has many representations: multi-view RGB(D) images volumetric polygonal mesh point cloud primitive-based models
The Representation Issue of 3D Deep Learning
SLIDE 28
02/23/2018
Hao Su
28
3D has many representations: multi-view RGB(D) images volumetric polygonal mesh point cloud primitive-based models
The Representation Issue of 3D Deep Learning
SLIDE 29
02/23/2018
Hao Su
29
3D has many representations: multi-view RGB(D) images volumetric polygonal mesh point cloud primitive-based models
The Representation Issue of 3D Deep Learning
SLIDE 30
02/23/2018
Hao Su
30
3D has many representations: multi-view RGB(D) images volumetric polygonal mesh point cloud primitive-based models
The Representation Issue of 3D Deep Learning
SLIDE 31
02/23/2018
Cartesian Product Space of “Task” and “Representation”
Hao Su
31
3D geometry analysis 3D synthesis
SLIDE 32
02/23/2018
Fundamental Challenges of 3D Deep Learning
Hao Su
32
Convolution needs an underlying structure Can we directly apply CNN on 3D data?
SLIDE 33
02/23/2018
3D has many representations: multi-view RGB(D) images volumetric
Rasterized vs Geometric
Hao Su
33
- Can directly apply CNN
- But has other challenges
Rasterized form (regular grids)
SLIDE 34
02/23/2018
3D has many representations: multi-view RGB(D) images volumetric polygonal mesh point cloud primitive-based models
Fundamental Challenges of 3D Deep Learning
Hao Su
34
Geometric form (irregular) Cannot directly apply CNN Rasterized form (regular grids)
SLIDE 35
02/23/2018
3D Deep Learning Algorithms (by Representations)
Hao Su
35
- Projection-based
[Su et al. 2015] [Kalogerakis et al. 2016] … [Maturana et al. 2015] [Wu et al. 2015] (GAN) [Qi et al. 2016] [Liu et al. 2016] [Wang et al. 2017] (O-Net) [Tatarchenko et al. 2017] (OGN) …
Volumetric Multi-view
SLIDE 36
02/23/2018
3D Deep Learning Algorithms (by Representations)
Hao Su
36
- Projection-based
[Defferard et al. 2016] [Henaff et al. 2015] [Yi et al. 2017] (SyncSpecCNN) …
Volumetric Multi-view
[Qi et al. 2017] (PointNet) [Fan et al. 2017] (PointSetGen)
Point cloud Mesh (Graph CNN) Part assembly
[Tulsiani et al. 2017] [Li et al. 2017] (GRASS) [Su et al. 2015] [Kalogerakis et al. 2016] … [Maturana et al. 2015] [Wu et al. 2015] (GAN) [Qi et al. 2016] [Liu et al. 2016] [Wang et al. 2017] (O-Net) [Tatarchenko et al. 2017] (OGN) …
SLIDE 37
02/23/2018
3D has many representations: multi-view RGB(D) images volumetric
Fundamental Challenges of 3D Deep Learning
Hao Su
37
- Can directly apply CNN
- But has other challenges
Rasterized form (regular grids)
SLIDE 38
Deep Learning on Multi-view Representation
SLIDE 39
02/23/2018
Multi-view Representation as 3D Input
Hao Su
39
▪ Leverage the huge CNN literature in image analysis
SLIDE 40
02/23/2018
Multi-view Representation as 3D Input
Hao Su
40
▪ Classification
… … … … CNN1
. . .
View poolin g CNN2: a second ConvNet producing shape descriptors … CNN2 softmax
Hang Su, Subhransu Maji, Evangelos Kalogerakis, Erik Learned-Miller, "Multi-view Convolutional Neural Networks for 3D Shape Recognition", Proceedings of ICCV 2015
SLIDE 41
2/15/2018
Multi-view Representation as 3D Output
Hao Su
41
▪ The Novel-view Synthesis Problem
SLIDE 42
2/15/2018
Fully Convolutional Network (FCN)
Hao Su
42
Segmentati
- n:
Learning Deconvolution Network for Semantic Segmentation
SLIDE 43
2/15/2018
Idea 1: Direct Novel-view Synthesis
Hao Su
43
Maxim Tatarchenko, Alexey Dosovitskiy, Thomas Brox, “Multi-view 3D Models from Single Images with a Convolutional Network”, ECCV2016
SLIDE 44
2/15/2018
Results are often Blurry
Hao Su
44
SLIDE 45
02/23/2018
Hao Su
45 +
+ +
+ …
…
0.1 0.4 0.3
Observed view image Novel view feature
Su et al, 3D-Assisted Image Feature Synthesis for Novel Views of an Object, ECCV 2016
Idea 2: Explore Cross-View Relationship
SLIDE 46
2/15/2018
Idea 2: Explore Cross-View Relationship
Hao Su
46
Single-view network architecture:
Zhou et al, View Synthesis by Appearance Flow, ECCV 2016
SLIDE 47
2/15/2018
Hao Su
47
Idea 2: Explore Cross-View Relationship
SLIDE 48
2/15/2018
Combine both ideas
Hao Su
48
- First, apply flow prediction
- Second, conduct invisible part hallucination
Park et al, Transformation-Grounded Image Generation Network for Novel 3D View Synthesis, CVPR 2017
SLIDE 49
2/15/2018
Combine both ideas
Hao Su
49
SLIDE 50
2/15/2018
Articulated Shapes: Assist Flow Synthesis by Depth Estimation
Hao Su
50
source image forward flow backward flow target image
Value point to value point to coordinate registered coordinate registered visible region invisible region flow (red is origin)
My latest paper accepted by CVPR’18
SLIDE 51
2/15/2018
Articulated Shapes: Assist Flow Synthesis by Depth Estimation
Hao Su
51
depth net
flow net mask net …… …… ……
View Para
- Conv. block
- Deconv. block
Full connection block Projection/Transforming layer Residual link Residual conv. block Source image Forward flow Remapped flow Backward flow
Forward flowTarget mask Target image Depth image
My latest paper accepted by CVPR’18
SLIDE 52
Deep Learning on Volumetric Representation
SLIDE 53
1/30/2018
Popular 3D volumetric data
Hao Su
53
fMRI Manufacturing (finite-element analysis) Geology CT
SLIDE 54
02/23/2018
Volumetric Representation as 3D Input
Hao Su
54
▪ The main hurdle is Complexity
SLIDE 55
1/30/2018
The Sparsity Characteristic of 3D Data
Hao Su
55
Resolution:
32 64 128
Occupancy:
Li et, FPNN: Field Probing Neural Networks for 3D Data, NIPS 2016
SLIDE 56
02/23/2018
Solution: Octree based CNN (O-CNN)
Hao Su
56
Octree
SLIDE 57
02/23/2018
Convolution on Octree
Hao Su
57
- Neighborhood searching: Hash table
OCTREE FullVoxel
Gernot Riegler, Ali Osman Ulusoy, Andreas Geiger “OctNet: Learning Deep 3D Representations at High Resolutions” CVPR2017 Pengshuai Wwang, Yang Liu, Yuxiao Guo, Chunyu Sun, Xin Tong “O-CNN: Octree-based Convolutional Neural Network for Understanding 3D Shapes” SIGGRAPH2017
SLIDE 58
02/23/2018
Volumetric Representation as 3D Input
Hao Su
58
▪ The main hurdle is still Complexity
SLIDE 59
1/30/2018
A Straight-forward Implementation
Hao Su
59
Choi et al. ECCV 2016
SLIDE 60
1/30/2018
Towards Higher Spatial Resolution
Hao Su
60
Maxim Tatarchenko, Alexey Dosovitskiy, Thomas Brox “Octree Generating Networks: Efficient Convolutional Architectures for High-resolution 3D Outputs” arxiv (March, 2017)
SLIDE 61
1/30/2018
Progressive Voxel Refinement
Hao Su
61
SLIDE 62
02/23/2018
3D has many representations: multi-view RGB(D) images volumetric polygonal mesh point cloud primitive-based models
Fundamental Challenges of 3D Deep Learning
Hao Su
62
Geometric form (irregular) Cannot directly apply CNN Rasterized form (regular grids)
SLIDE 63
Deep Learning on Polygonal Meshes
SLIDE 64
02/23/2018
Mesh as 3D Input
Hao Su
64
▪ Deep Learning on Graphs
SLIDE 65
02/23/2018
Geometry-aware Convolution can be Important
Hao Su
65
convolutional along spatial coordinates convolutional considering underlying geometry
image credit: D. Boscaini, et al. image credit: D. Boscaini, et al.
SLIDE 66
02/23/2018
Meshes can be represented as graphs
Hao Su
66
3D shape graph social network molecules
SLIDE 67
02/23/2018
How to define convolution kernel on graphs?
Hao Su
67
from Shuman et al. 2013
- Desired properties:
- locally supported (w.r.t graph metric)
- allowing weight sharing across different
coordinates
SLIDE 68
02/23/2018
Issues of Geodesic CNN
Hao Su
68
- The local charting method relies on a fast
marching-like procedure requiring a triangular mesh.
- The radius of the geodesic patches must be
sufficiently small to acquire a topological disk.
- No effective pooling, purely relying on
convolutions to increase receptive field.
SLIDE 69
02/23/2018
Spectral construction: Spectral CNN
Hao Su
69
Fourier analysis
Convert convolution to multiplication in spectral domain
SLIDE 70
02/23/2018
Bases on meshes: eigenfunction of Laplacian- Bertrami operator
Hao Su
70
SLIDE 71
02/23/2018
Synchronization of functional space across meshes
Hao Su
71
Functional map
Li Yi, Hao Su, Xingwen Guo, Leonidas Guibas “SyncSpecCNN: Synchronized Spectral CNN for 3D Shape Segmentation” CVPR2017 (spotlight)
SLIDE 72
02/23/2018
Mesh as 3D Output
Hao Su
72
▪ At the heart a surface parameterization problem
SLIDE 73
02/23/2018
Deep learning on surface parameterization
Hao Su
73
Use CNN to predict the parameterization, then convert to 3D mesh
Step 1 Step 2 Ayan Sinha, Asim Unmesh, Qixing Huang, Karthik Ramani “SurfNet: Generating 3D shape surfaces using deep residual networks” CVPR2017
SLIDE 74
Deep Learning
- n Point Cloud Representation
SLIDE 75
1/30/2018
Point Cloud: the Most Common Sensor Output
Hao Su
75 Figure from the recent VoxelNet paper from Apple.
SLIDE 76
02/23/2018
Point Cloud as 3D Input
Hao Su
76
▪ Deep Learning on Sets (orderless)
SLIDE 77
1/30/2018
Properties of a desired neural network on point clouds
Hao Su
77
2D array representation
N D
Point cloud: N orderless points, each represented by a D dim coordinate
Hao Su*, Charles Qi*, Kaichun Mo, Leonidas Guibas “PointNet: Deep Learning on Point Sets for 3D Classification and Segmentation” CVPR2017 (oral)
SLIDE 78
1/30/2018
Hao Su
78
2D array representation
N D
Properties of a desired neural network on point clouds
Point cloud: N orderless points, each represented by a D dim coordinate
SLIDE 79
1/30/2018
Hao Su
79
Point cloud: N orderless points, each represented by a D dim coordinate
2D array representation
N D N D
represents the same set as
Properties of a desired neural network on point clouds
SLIDE 80
1/30/2018
Permutation invariance: Symmetric function
Hao Su
80
Examples:
…
f (x1,x2,…,xn) = max{x1,x2,…,xn} f (x1,x2,…,xn) = x1 + x2 +…+ xn
f (x1,x2,…,xn) ≡ f (xπ1,xπ2,…,xπn ) xi ∈!D
,
SLIDE 81
1/30/2018
Construct symmetric function family
Hao Su
81
Observe:
f (x1,x2,…,xn) = γ ! g(h(x1),…,h(xn)) is symmetric if is symmetric
g
SLIDE 82
1/30/2018
Construct symmetric function family
Hao Su
82
(1,2,3) (1,1,1) (2,3,2) (2,3,4)
h
Observe:
f (x1,x2,…,xn) = γ ! g(h(x1),…,h(xn)) is symmetric if is symmetric
g
SLIDE 83
1/30/2018
Construct symmetric function family
Hao Su
83
(1,2,3) (1,1,1) (2,3,2) (2,3,4) simple symmetric function
h
g
Observe:
f (x1,x2,…,xn) = γ ! g(h(x1),…,h(xn)) is symmetric if is symmetric
g
SLIDE 84
1/30/2018
Construct symmetric function family
Hao Su
84
(1,2,3) (1,1,1) (2,3,2) (2,3,4) simple symmetric function
PointNet (vanilla)
h
g γ
Observe:
f (x1,x2,…,xn) = γ ! g(h(x1),…,h(xn)) is symmetric if is symmetric
g
SLIDE 85
1/30/2018
Q: What symmetric functions can be constructed by PointNet?
Hao Su
85
PointNet (vanilla) Symmetric functions
SLIDE 86
1/30/2018
A: Universal approximation to continuous symmetric functions
Hao Su
86
Theorem:
PointNet (vanilla)
A Hausdorff continuous symmetric function can be arbitrarily approximated by PointNet.
f :2X → !
S ⊆ !d ,
SLIDE 87
1/30/2018
PointNet is Light-weight
Hao Su
87 1000K 10000K 100000K
MVCNN
Space complexity (#params)
Subvolume VRN PointNet
multi-view volumetric point cloud ⎧ ⎨ ⎩
Saves 95% GPU memory
100M 10M 1M
[Su et al. 2015] [Su et al. 2016] [Su et al. 2016] [Su et al. 2017]
SLIDE 88
1/30/2018
Robustness to data corruption
Hao Su
88
SLIDE 89
1/30/2018
Robustness to data corruption
Hao Su
89
Segmentation from partial scans
SLIDE 90
1/30/2018
Visualize what is learned by reconstruction
Hao Su
90
Salient points are discovered!
SLIDE 91
1/30/2018
PointNet v2.0: Multi-Scale PointNet
Hao Su
91
N points in (x,y) N1 points in (x,y,f) N2 points in (x,y,f’)
- 1. Larger receptive field in higher layers
- 2. Less points in higher layers (more scalable)
- 3. Weight sharing
- 4. Translation invariance (local coordinates in
local regions)
Charles Qi, Hao Su, Li Yi, Leonidas Guibas “PointNet++: Deep Hierarchical Feature Learning on Point Sets in a Metric Space” NIPS 2017
SLIDE 92
1/30/2018
Fuse 2D and 3D: Frustum PointNets for 3D Object Detection
Hao Su
92 + Leveraging mature 2D detectors for region proposal and 3D search space reduction + Solving 3D detection problem with 3D data and 3D deep learning architectures
My latest paper accepted at CVPR 2018
SLIDE 93
1/30/2018
Our method ranks No. 1 on KITTI 3D Object Detection Benchmark
Hao Su
93
We get 5% higher AP than Apple’s recent CVPR submission and more than 10% higher AP than previous SOTA in easy category
...
SLIDE 94
1/30/2018
Our method ranks No. 1 on KITTI 3D Object Detection Benchmark
Hao Su
94
We are also 1st place for smaller objects (ped. and cyclist) winning with even bigger margins.
... ...
SLIDE 95
1/30/2018
Hao Su
95
Remarkable box estimation accuracy even with a dozen
- f points or with
very partial point cloud
SLIDE 96
1/30/2018
Hao Su
96
SLIDE 97
02/23/2018
Point Cloud as 3D Output
Hao Su
97
▪ Deep Learning to Generate Combinatorial Objects
SLIDE 98
02/23/2018
Supervision from “Synthesize for Learning”
98
ShapeNet
Renderer
SLIDE 99
02/23/2018
3D Representation: Point Cloud
Hao Su
99
Describe shape for the whole object Usable as network output? No prior works in the deep learning community!
SLIDE 100
02/23/2018
3D Prediction by Point Clouds
Input Reconstructed 3D point cloud
100
Hao Su, Haoqiang Fan, Leonidas Guibas “A Point Set Generation Network for 3D Object Reconstruction from a Single Image” CVPR2017 (oral)
SLIDE 101
02/23/2018
3D Prediction by Point Clouds
Input Reconstructed 3D point cloud
101
SLIDE 102
02/23/2018
Pipeline
Hao Su
102
CVPR ’17, Point Set Generation
Loss
- n
sets
sampl e
(L)
Deep network
Prediction
(f)
SLIDE 103
02/23/2018
Loss function: Earth Mover’s Distance (EMD)
Hao Su
103
- Given two sets of points, measure their discrepancy:
Differentiable Admit fast computation
SLIDE 104
02/23/2018
Generalization to Unseen Categories
Hao Su
104 input
- bserved view
input
- bserved view
Out of training
SLIDE 105
Deep Learning on Primitives
SLIDE 106
02/23/2018
Describe Shapes by Primitives
Hao Su
▪ What are parts? Reusable substructures! ▪ A Structure Mining Problem ▪ By DL, also a Meta-Learning Problem
106
SLIDE 107
02/23/2018
Primitive-based Assembly
Hao Su
107
Shubham Tulsiani, Hao Su, Leonidas Guibas, Alexei A. Efros, Jitendra Malik Learning Shape Abstractions by Assembling Volumetric Primitives CVPR 2017
SLIDE 108
02/23/2018
Approach
Hao Su
108
We predict primitive parameters: size, rotation, translation of M cuboids. Variable number of parts? We predict “primitive existence probability”
SLIDE 109
02/23/2018
Generative Models for Shapes by Reusing Primitives
Hao Su
109
▪ Incremental Assembly-based modeling ▪ “Transfer Learning” in the sense of reusing prior knowledge
SLIDE 110
02/23/2018
Primitive Space from ShapeNet Parts
Hao Su
110
SLIDE 111
02/23/2018
Markov Modeling Process
Hao Su
111
Part assembly: Markov process – Incrementally assemble parts.
Sung et al, ComplementMe: Weakly-Supervised Component Suggestions for 3D Modeling SIGGRAPH Asia 2017
SLIDE 112
02/23/2018
New part proposal by network
Hao Su
112
Placement Network Proposal Network
Component Embedding Space
Partial Assembly Output
SLIDE 113
02/23/2018
Automatic Shape Synthesis
Hao Su
113
SLIDE 114
02/23/2018
Automatic Shape Synthesis
Hao Su
114
SLIDE 115
02/23/2018
Hao Su
115
SLIDE 116
